Choosing the right track light involves more than selecting wattage. Beam angle, color temperature, color rendering, fixture dimensions and aiming flexibility all affect how a commercial space looks and functions.
The HUIHENG H-LD069M and H-LD069L COB LED track lights are designed for indoor commercial lighting applications where directional lighting and a clean fixture appearance are important.

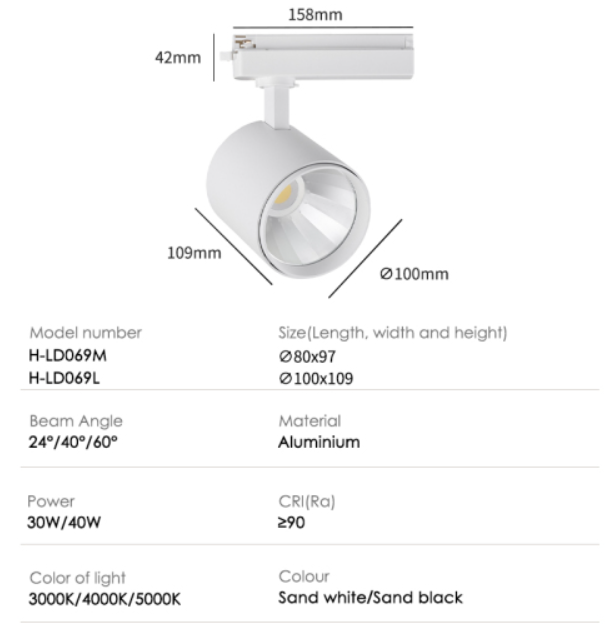

Based on the available product specification image, the series includes the following options:
| Specification | Available options |
|---|---|
| Model | H-LD069M / H-LD069L |
| Power | 30W / 40W |
| Beam angle | 24° / 40° / 60° |
| Color temperature | 3000K / 4000K / 5000K |
| Color rendering | CRI (Ra) ≥90 |
| Material | Aluminium |
| Fixture color | Sand white / sand black |
| Listed dimensions | H-LD069M: Ø80 × 97 mm; H-LD069L: Ø100 × 109 mm |
Please confirm the exact model-to-wattage combinations and available configurations with the current datasheet before specifying a fixture for a project.
COB LED track lighting is commonly used to direct light toward products, displays and selected architectural features. Unlike general ambient lighting, track spotlights allow lighting designers to adjust the direction of the beam to suit different layouts.
For retail stores and showrooms, directional lighting can help establish visual priorities and draw attention to selected merchandise. The final result depends on the beam angle, mounting height, aiming direction, surrounding surfaces and the number of fixtures.
The H-LD069M and H-LD069L specification image lists three color-temperature options:
3000K: A warm appearance for spaces that want a welcoming atmosphere.
4000K: A neutral-white appearance for balanced commercial presentation.
5000K: A cooler-white appearance for projects that prefer a crisp visual impression.
The best option depends on the products being displayed, the interior materials and the lighting concept.
The listed beam-angle options are 24°, 40° and 60°. A narrower beam generally concentrates light into a smaller area, while a wider beam spreads light over a larger area. The appropriate choice should be based on the target area, mounting height and required illuminance.
For project planning, request photometric files and confirm the actual beam distribution rather than selecting a fixture by beam angle alone.

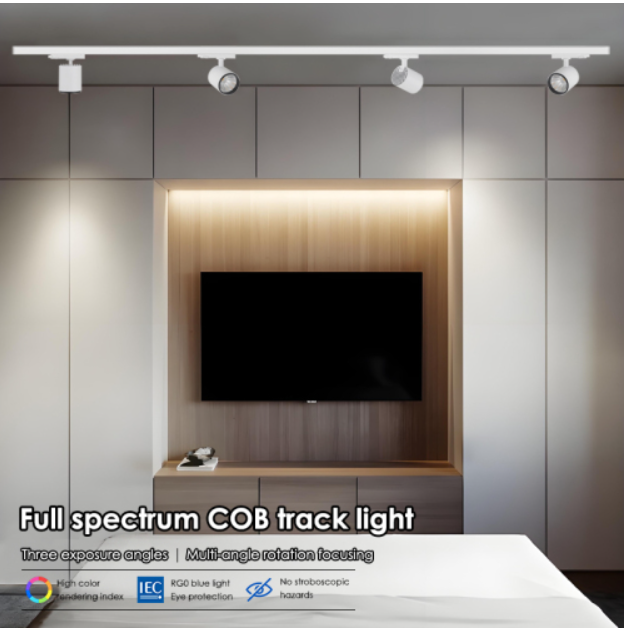

Potential applications include retail stores, clothing boutiques, showrooms, galleries and other indoor commercial spaces where directional lighting is required. Fixture suitability should be confirmed against the project's electrical, track-system and lighting-design requirements.
HUIHENG Lighting supports commercial lighting enquiries. Contact our team to confirm available configurations, request the latest datasheet and IES files, and discuss your project requirements.
Planning a commercial lighting project? Share your application, ceiling height, preferred color temperature and quantity so our team can help you review suitable options.
What beam angles are available?
The available specification image lists 24°, 40° and 60°. Confirm the options for each model before ordering.
What color temperatures are listed?
The series lists 3000K, 4000K and 5000K.
What is the CRI rating?
The provided specification image lists CRI (Ra) ≥90. Confirm the rating for the exact configuration in the official datasheet.
Can I request photometric files?
Contact HUIHENG Lighting to confirm the availability of current IES files and technical documentation for your selected model.
