Lighting for modern high-end commercial spaces hinges on a neat, well-proportioned fixture profile and precise, comfortable light quality. Whether for creative offices, light-luxury restaurants, brand retail showrooms or public zones within boutique hotels, linear lighting with a restrained, unobtrusive appearance fits seamlessly into minimalist and light-luxury interior styles. With professional optical design, it fulfills multiple lighting requirements including base illumination, ambient creation and commercial display. Specialized in R&D and manufacturing of premium commercial linear lights, Huiheng Lighting presents the H-LE009-12-A lens-type suspended linear light for minimalist commercial projects. Featuring a 15mm narrow profile, professional lens light output and dual smart sensors, it balances practical commercial lighting performance with spatial design aesthetics for high-end commercial fit-out projects.

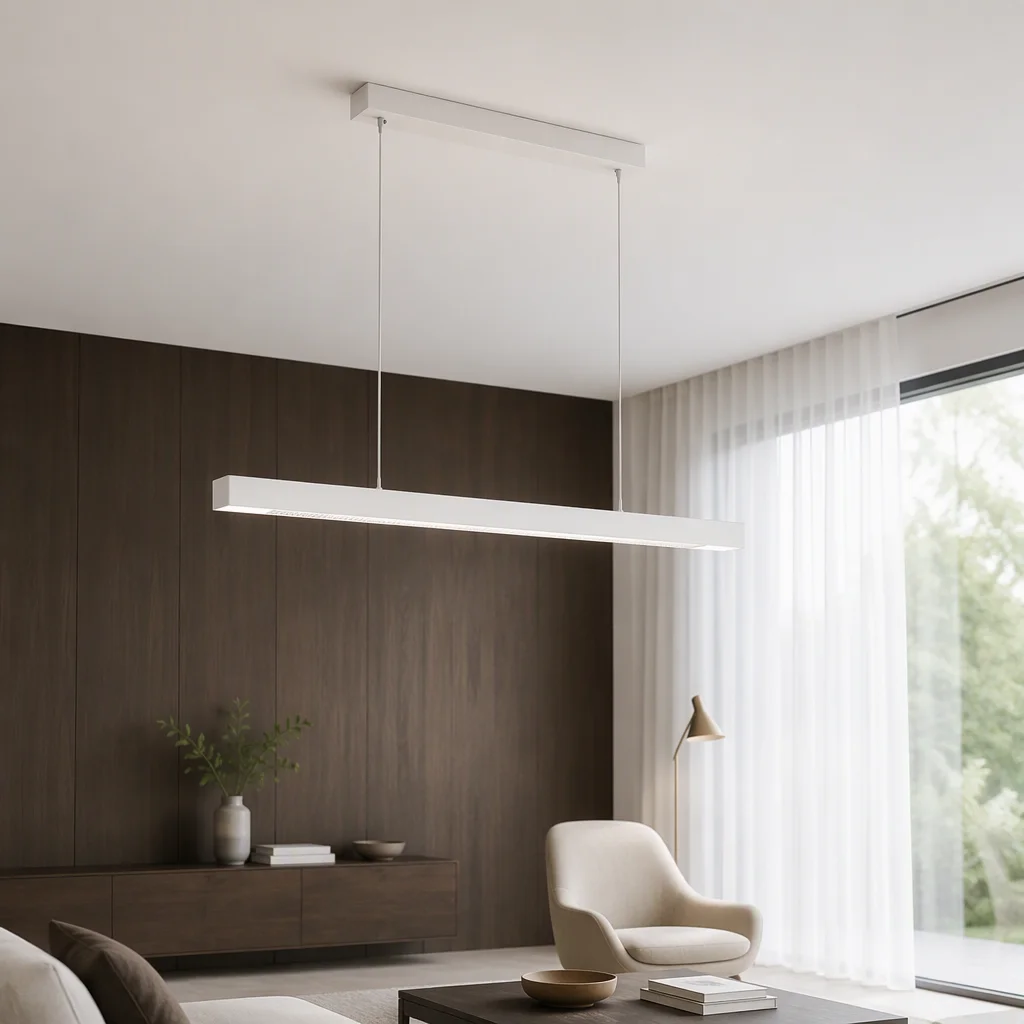

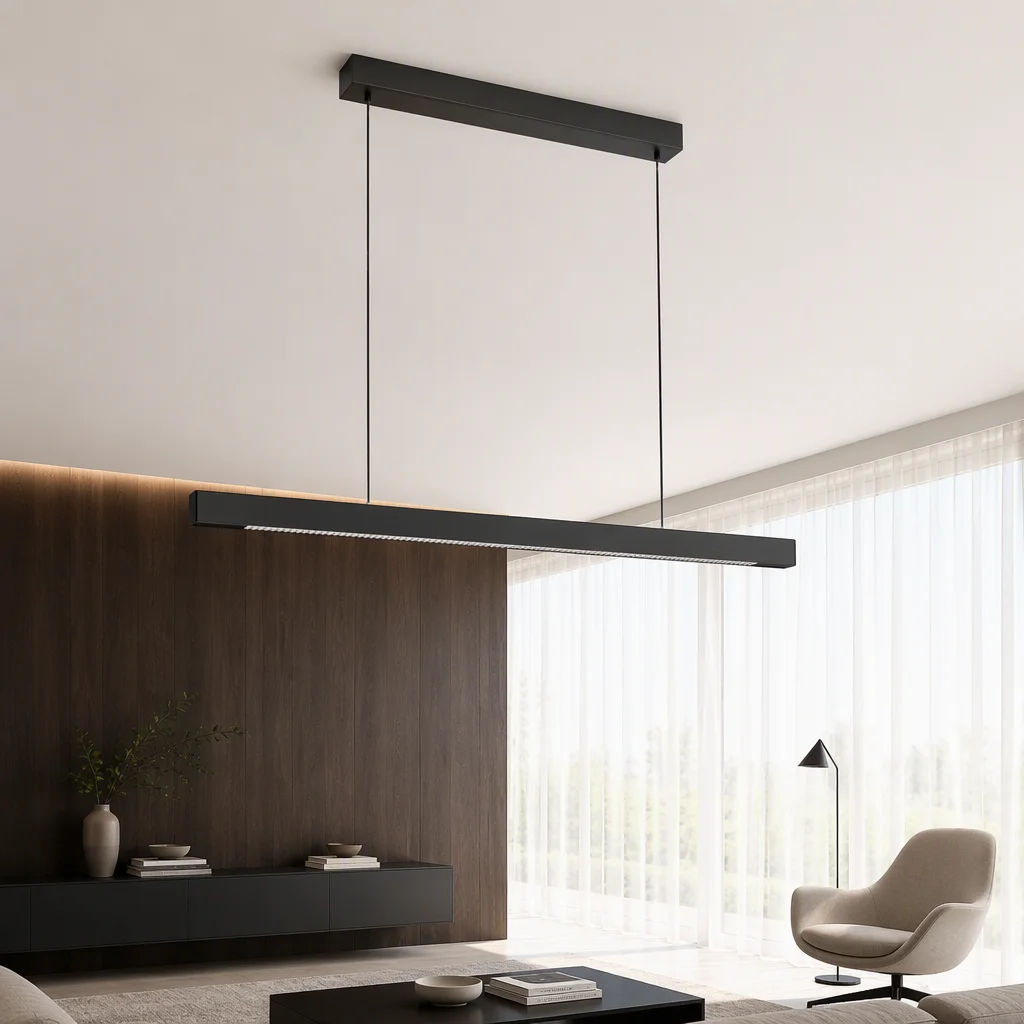

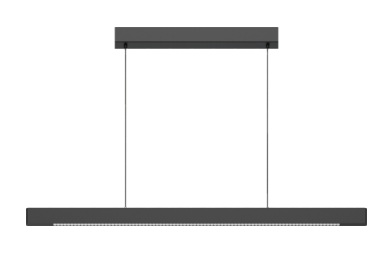

Hi, I’m Vico from Huiheng Lighting’s overseas team. The H-LE009-12-A is a commercial suspended linear light engineered with a narrow profile, smart control and precision lens optics. Unlike most bulky conventional linear lights on the market, it adopts a 15mm standard narrow body design with a balanced, clean silhouette. Once suspended, it delivers a simple and tidy visual effect without dominating the space, perfectly matching mainstream commercial design styles including minimalist, light luxury and industrial aesthetics. The light blends naturally into the space and preserves the premium texture of interior finishes.

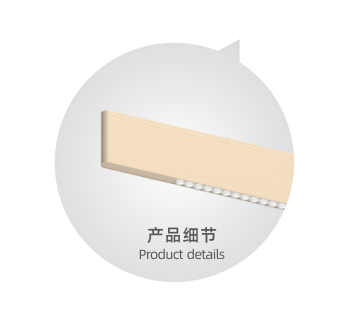

For lighting performance, the fixture adopts high-precision lens optical output instead of traditional floodlight structures. The light beam is more concentrated, uniform and directional, effectively eliminating stray light and glare. It delivers soft, clean illumination without hotspots or double-image ghosting. For task lighting on office desks, ambient lighting in restaurants, or detail accent lighting for exhibits in showrooms, it creates refined, premium light effects. It remains non-glaring during extended use, ideal for high-frequency operation in commercial environments.
In terms of smart functions, the H-LE009-12-A integrates dual smart modes: touch dimming and hand-sweep sensor. No pre-installed wall switches or complex wiring commissioning are required. In daily use, simply touch the fixture body for stepless brightness adjustment, or wave your hand to control the light. You can freely switch between bright work mode, soft leisure mode and refined display mode to instantly adapt lighting atmosphere for office work, dining and exhibitions. The operation is intuitive with strong modern tech appeal.

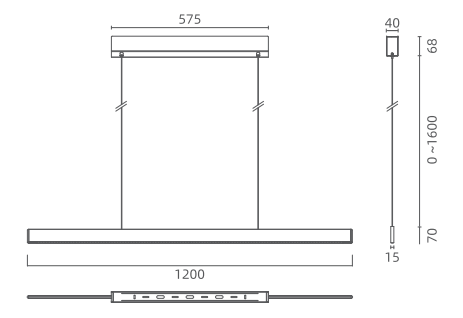

The housing is crafted from high-quality one-piece extruded aluminum profile. Its 15mm narrow body delivers robust structural stability, combining lightweight installation and excellent heat dissipation to rapidly dissipate heat generated by LEDs. It resists deformation, discoloration and yellowing after long-term ceiling suspension, boasting superior durability over ordinary linear lights. The standard length is 1.2m, with non-standard custom sizes of 1.5m and 1.8m available. Seamless splicing is supported according to space span to fit commercial projects of all scales. The suspension wire height is freely adjustable from 0–1.6m, with a maximum extension of 2m, flexibly adapting to showrooms, offices and restaurants with varying ceiling heights. Four classic finish options: sand white, sand black, brushed gold and raw aluminum, enabling seamless coordination with all types of high-end interior designs.
The light source meets high-grade commercial lighting standards, equipped with premium original LED chips with CRI≥90. It accurately reproduces the true color of food, soft furnishings and exhibits with rich, delicate hues, greatly elevating spatial texture and display quality. Available fixed CCT options include 3000K, 3500K and 4000K. Tunable white from 2700K to 6500K is also available to adjust lighting atmosphere throughout the day. Beyond the built-in dual smart sensors, it can be paired with external dimming drivers and is compatible with mainstream smart dimming systems including 0-10V, DALI, Triac and Bluetooth. It can connect to intelligent lighting systems of modern commercial buildings for whole-building smart linkage.
The fixture features a long service life of 30,000 hours with a 3-year official warranty. Stable and low-power with low failure rate, it greatly reduces later maintenance costs for commercial projects and supports long-duration, high-frequency operation. Thanks to its neat narrow profile, convenient smart control and professional lens optics, this fixture is widely used in premium office work zones, meeting rooms, light-luxury western restaurants, brand retail stores, art galleries, boutique hotels and other high-end commercial spaces.
As an original factory for export, Huiheng Lighting provides in-depth OEM & ODM customization services. We offer one-on-one professional lighting layout and product selection solutions based on project designs, space dimensions and lighting requirements. Overseas engineering purchasers and trade clients are welcome to contact us for datasheets, photometric files and exclusive project quotations.
