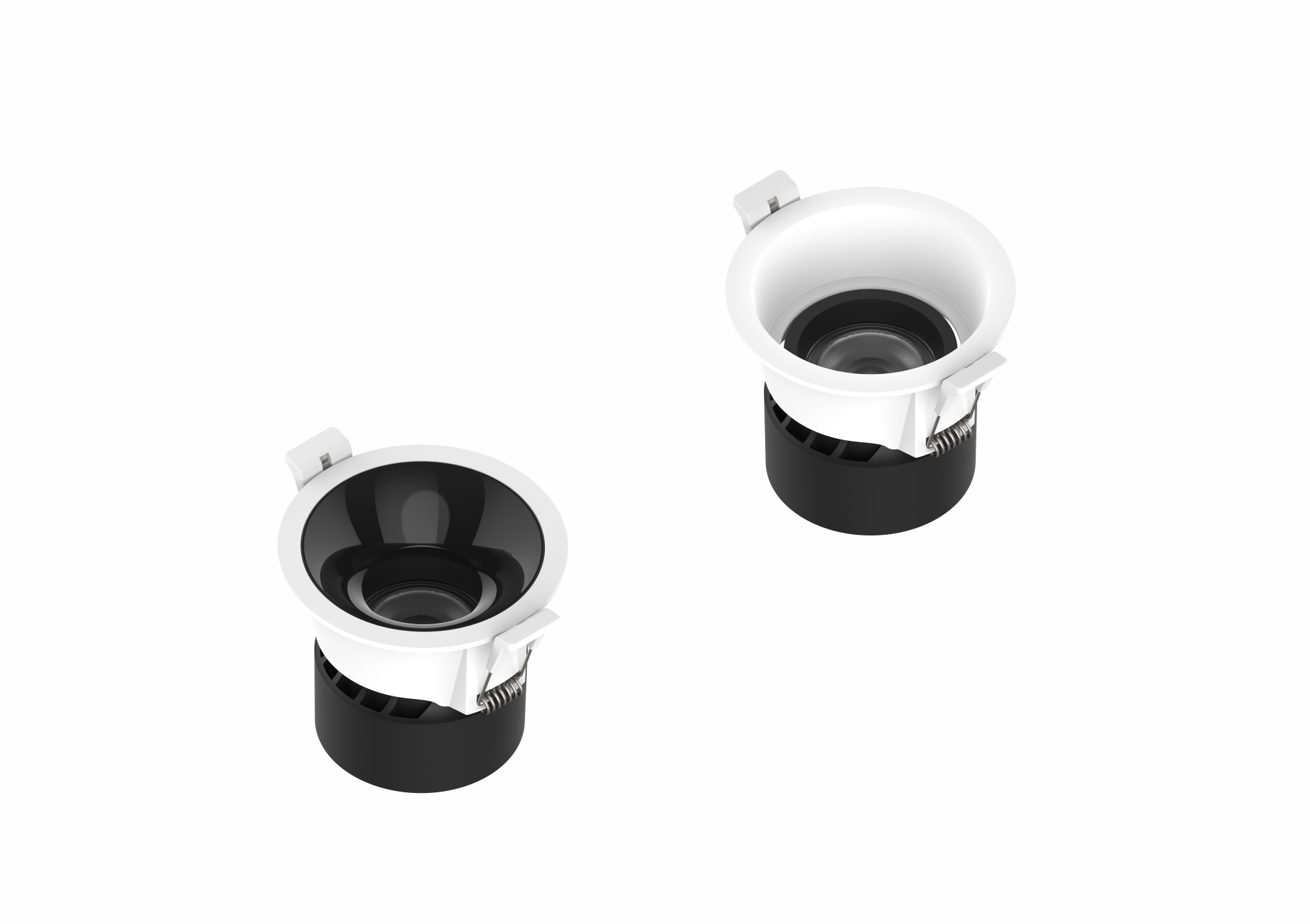

HUIHENG H-LA129M Series Fixed Recessed LED Downlight
Compact Architectural Lighting for Modern Interiors
The HUIHENG H-LA129M series fixed recessed LED downlight combines a minimalist ceiling appearance with reliable, focused illumination. Designed for recessed installation, it integrates neatly into indoor ceilings and supports a range of commercial and residential lighting applications.
With 7W, 9W, and 12W power options, multiple color temperatures, and two beam angles, the H-LA129M series provides flexibility for different lighting layouts and interior design requirements.
Key Features
-
Multiple Power Options: Available in 7W, 9W, and 12W configurations.
-
High Color Rendering: CRI ≥90 helps reproduce colors accurately in retail displays and hospitality interiors.
-
Flexible Color Temperatures: 3000K, 4000K, and 5000K options for warm, neutral, or cool white lighting.
-
Two Beam Angles: 24° and 36° options for focused accent lighting or wider light distribution.
-
Aluminum Housing: Designed for a clean, contemporary architectural appearance.
-
Fixed Recessed Installation: Creates an integrated, unobtrusive ceiling finish.
-
Two Finish Options: Sand white and sand black to complement different interior styles.
Technical Specifications
-
Brand: HUIHENG Lighting
-
Series: H-LA129M
-
Models: H-LA129M / H-LA129AM
-
Product Type: Fixed Recessed LED Downlight
-
Power: 7W / 9W / 12W
-
Luminous Efficacy: 80 lm/W
-
Color Rendering Index (CRI): ≥90
-
Color Temperature (CCT): 3000K / 4000K / 5000K
-
Beam Angle: 24° / 36°
-
Housing Material: Aluminum
-
Finish: Sand White / Sand Black
-
Protection Rating: IP20
-
Installation Type: Recessed ceiling installation
-
Cutout Diameter: Approximately Ø75 mm, according to the supplied technical drawing
Recommended Applications
Retail Stores and Showrooms: Provide focused illumination for merchandise, shelves, and selected display areas.
Hotels and Hospitality: Support comfortable, visually appealing lighting in reception areas, corridors, and guest-facing interiors.
Office Interiors: Integrate discreet lighting into modern office ceilings and shared commercial spaces.
Residential Interiors: Suitable for kitchens, hallways, living areas, and other indoor applications requiring compact recessed lighting.
Architectural Lighting Projects: Offer a clean ceiling appearance with beam angle and color temperature options to suit different design concepts.
Why Choose the HUIHENG H-LA129M Series?
The H-LA129M series combines a compact recessed design, high color rendering, and flexible lighting specifications in one product family. It is suitable for lighting distributors, electrical wholesalers, contractors, and interior designers sourcing LED downlights for commercial and residential projects.
Contact HUIHENG Lighting for quotations, detailed product datasheets, and project-specific lighting recommendations.
