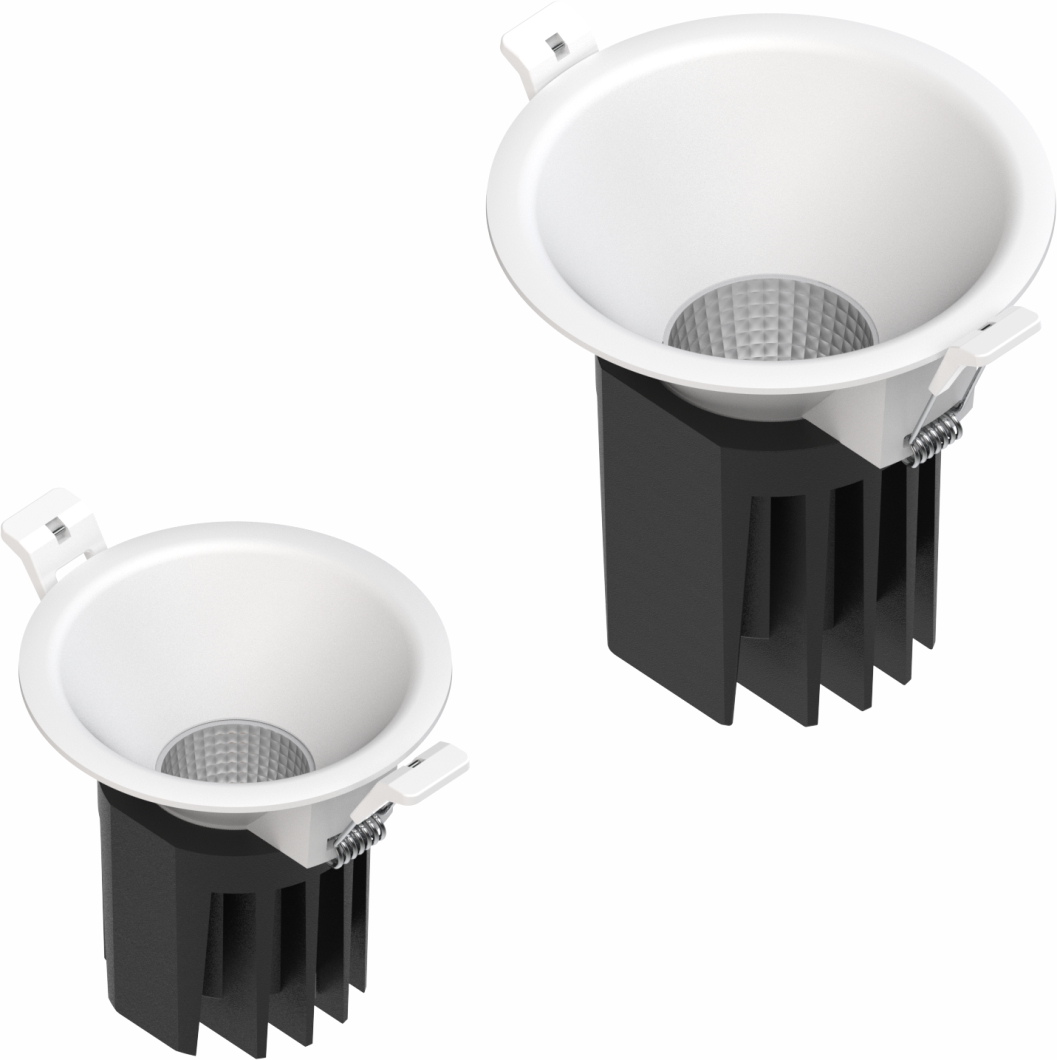

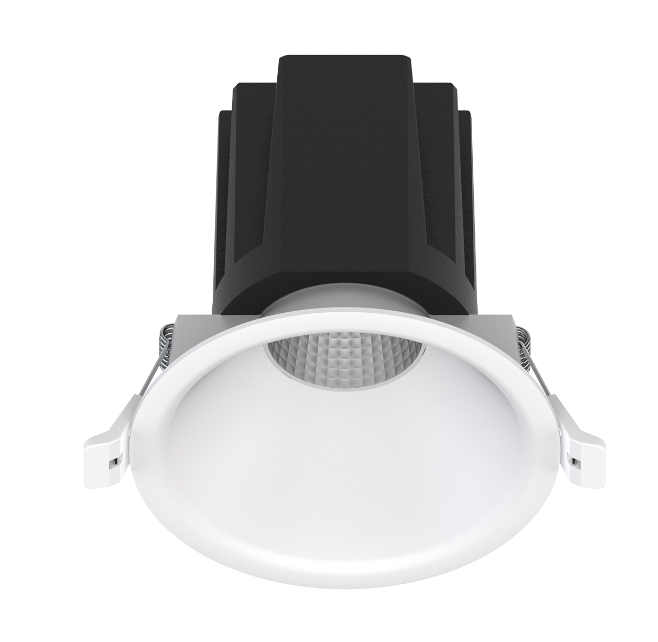

HUIHENG H-LB201 Series Fixed Recessed LED Downlight
Clean Architectural Lighting for Modern Interiors
The HUIHENG H-LB201 series fixed recessed LED downlight combines a minimalist appearance with focused, high-quality illumination. Designed for recessed ceiling installation, it integrates neatly into contemporary interiors while providing directional light for general and accent lighting applications.
With 10W and 20W models, multiple color temperature options, and two beam angles, the H-LB201 series offers flexibility for different room sizes, ceiling layouts, and lighting design requirements.
Key Features
-
Two Power Options: Available in 10W and 20W models for different lighting requirements.
-
High Color Rendering: CRI ≥90 helps reproduce colors more accurately in retail and hospitality environments.
-
Flexible Color Temperatures: 3000K, 4000K, and 5000K options support warm, neutral, and cool white lighting schemes.
-
Two Beam Angles: 24° and 36° options for focused accent lighting or broader light distribution.
-
Aluminum Construction: Aluminum housing provides a clean architectural appearance.
-
Fixed Recessed Design: Creates a neat, integrated ceiling finish.
-
Two Finish Options: Sand white and sand black to complement different interior styles.
Technical Specifications
-
Brand: HUIHENG Lighting
-
Series: H-LB201
-
Models: H-LB201S / H-LB201M
-
Product Type: Fixed Recessed LED Downlight
-
Power: 10W / 20W
-
Luminous Efficacy: 85 lm/W
-
Color Rendering Index (CRI): ≥90
-
Color Temperature (CCT): 3000K / 4000K / 5000K
-
Beam Angle: 24° / 36°
-
Housing Material: Aluminum
-
Finish: Sand White / Sand Black
-
Protection Rating: IP20
-
Installation Type: Recessed ceiling installation
-
Cutout Dimensions: Approximately Ø75 mm for H-LB201S and Ø100 mm for H-LB201M, according to the supplied drawing
Recommended Applications
Retail Stores and Showrooms: Highlight selected products, merchandise, and display areas with controlled lighting.
Hotels and Hospitality: Create comfortable lighting in reception areas, corridors, and guest-facing interiors.
Offices and Commercial Spaces: Integrate recessed lighting into modern ceiling designs and professional environments.
Residential Interiors: Provide focused illumination in living rooms, kitchens, hallways, and other indoor spaces.
Architectural Projects: Support lighting schemes that require a clean ceiling appearance and carefully selected beam angles.
Why Choose the HUIHENG H-LB201 Series?
The H-LB201 series combines high color rendering, multiple beam angles, and flexible color temperature options in a compact recessed LED downlight. It is a practical option for lighting distributors, contractors, interior designers, and project buyers seeking architectural lighting for commercial and residential interiors.
Contact HUIHENG Lighting for product datasheets, quotations, and project-specific lighting recommendations.
