The H-CG7S LED Magnetic Track Grille Light Series brings modern versatility, visual comfort, and sleek aesthetics to commercial and residential lighting layouts. Designed specifically for 24V/48V low-voltage magnetic track rail systems, this linear module snaps magnetically into position with secure mechanical locking, offering effortless adjustment along the track without tools.
Featuring multi-cell anti-glare louver optics—available in both round and square grille designs—the H-CG7S directs light with a crisp 36° beam angle while shielding eye contact from the LED chips. Crafted from high-grade extruded aluminum with a sand black powder-coated finish, it integrates seamlessly into minimalist interiors, high-end retail boutiques, and executive offices.
Key Features & Technical Advantages
-
Safe Low-Voltage Magnetic Plug-and-Play (DC 24V / 48V) Utilizes safe low-voltage power distribution, allowing users to easily move, add, or swap lighting modules along the track line at any time.
-

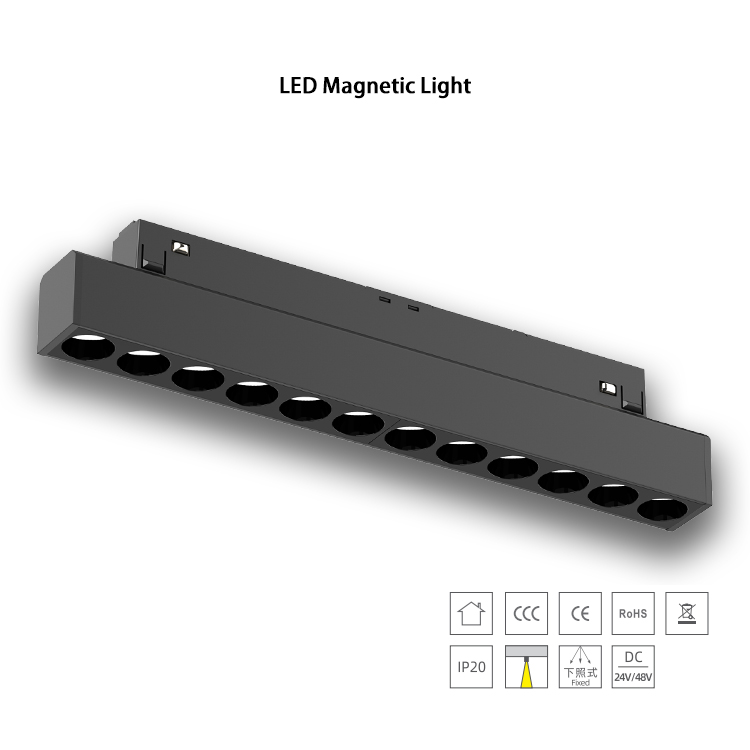

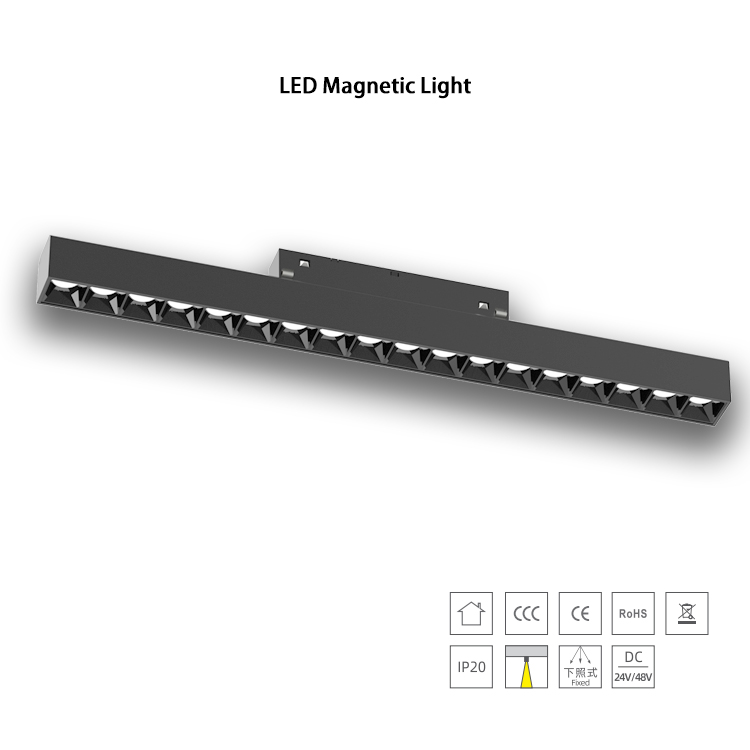

Dual Anti-Glare Optical Aesthetics (Round vs. Square Grille) Choose between round louver cups for smooth transitional lighting or square louver cups for a sharp, architectural linear aesthetic.
-
Superior Visual Comfort (36° Beam Angle) Deep recessed reflector cups minimize glare and control light spill, delivering high lux levels where needed without visual eye fatigue.
-
True-to-Life Color Rendering (CRI ≥ 90) High Color Rendering Index (CRI ≥90) ensures vibrant, accurate color presentation for residential living areas, artwork displays, and merchandise.
-
Slim Modern Profile (22mm x 43mm) Ultra-narrow 22mm width profile keeps the ceiling arrangement clean, modern, and uncluttered.
Product Specifications
-
Model Series: H-CG7S (H-CG7S-10 / H-CG7S-20)
-
Power Output: 10W / 20W
-
Luminous Flux: 705 lm (10W) / 1460 lm (20W)
-
System Voltage: DC 24V / DC 48V Low Voltage Track
-
Color Rendering Index (CRI): ≥ 90
-
Color Temperature (CCT): 3000K (Warm White) / 3500K / 4000K (Neutral White)
-
Beam Angle: 36° Anti-Glare Louver Optics
-
Grille Style Options: Circular Grille (圆形格栅) / Square Grille (方形格栅)
-
Housing Material: Extruded Aluminium
-
Finish: Sand Black (砂黑)
-
Fixture Type: Fixed Downward Magnetic Module (下照式)
-
Protection Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC

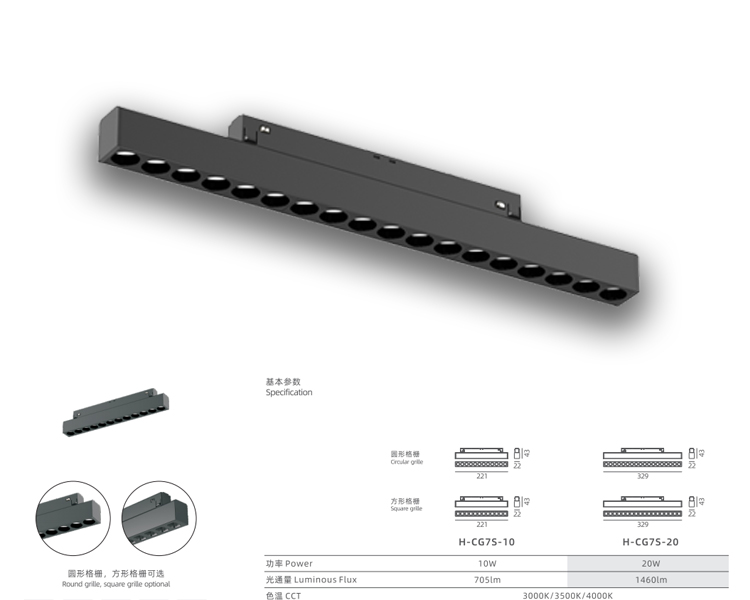

Dimensions & Mechanical Data
Frequently Asked Questions (FAQ)
Q1: Can I move or adjust the H-CG7S light module after the track is powered on? A: Yes, because it operates on a safe low-voltage DC 24V/48V system, you can safely snap out, move, or re-insert the magnetic light module along the track without turning off the main power.
Q2: What is the difference between the Round Grille and Square Grille options? A: Both options share the same electrical specifications and 36° beam angle. The Round Grille offers a classic circular reflector appearance, while the Square Grille provides a modern, geometric look.

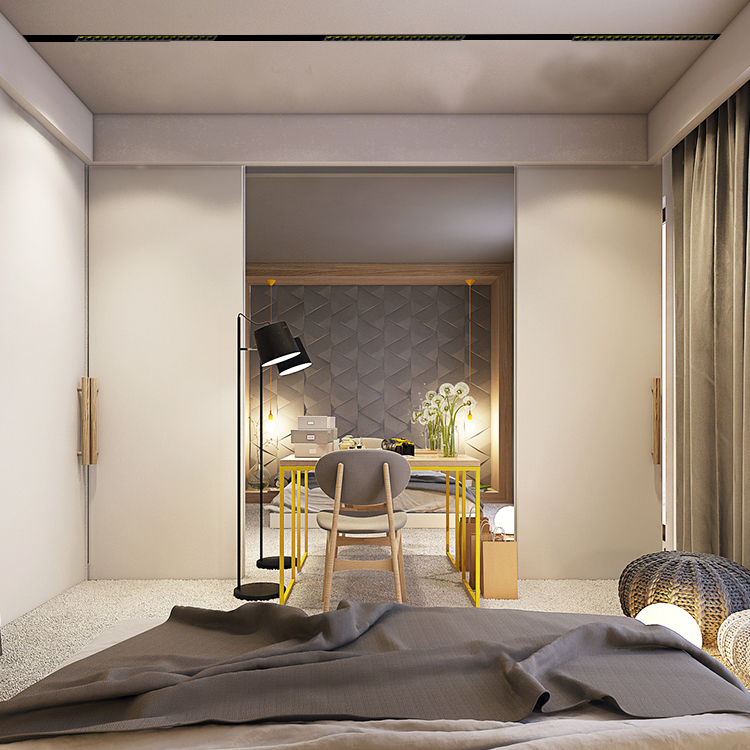

Q3: Where is this magnetic track grille light best applied? A: It is widely used in modern plaster-in magnetic track systems for living rooms, open-plan dining rooms, kitchen islands, commercial reception areas, and luxury retail stores requiring glare-free accent lighting.
