Product Overview
The H-CL7S LED Magnetic Linear Floodlight Series provides soft, uniform general lighting and wall-washing performance for contemporary architectural interiors. Designed for DC 24V/48V low-voltage magnetic track systems, this linear module snaps securely into track channels without tools, allowing effortless repositioning and layout adjustments anytime.
Engineered with two distinct optical cover choices—a micro-prismatic Rhombohedral plate offering an 83° anti-glare beam or a classic frosted Diffuser panel delivering a wide 100° beam angle—the H-CL7S ensures smooth, shadowless illumination. Housed in a durable sand black aluminum frame, it is the essential building block for modern无主灯 (mainless/ambient) lighting design.
Key Features & Technical Advantages
-
Safe Low-Voltage Track System (DC 24V / 48V) Powered by safe low-voltage current, allowing users to easily clip in, slide, or move modules along the magnetic track safely.
-
Dual Micro-Optical Options (83° vs. 100°)
-

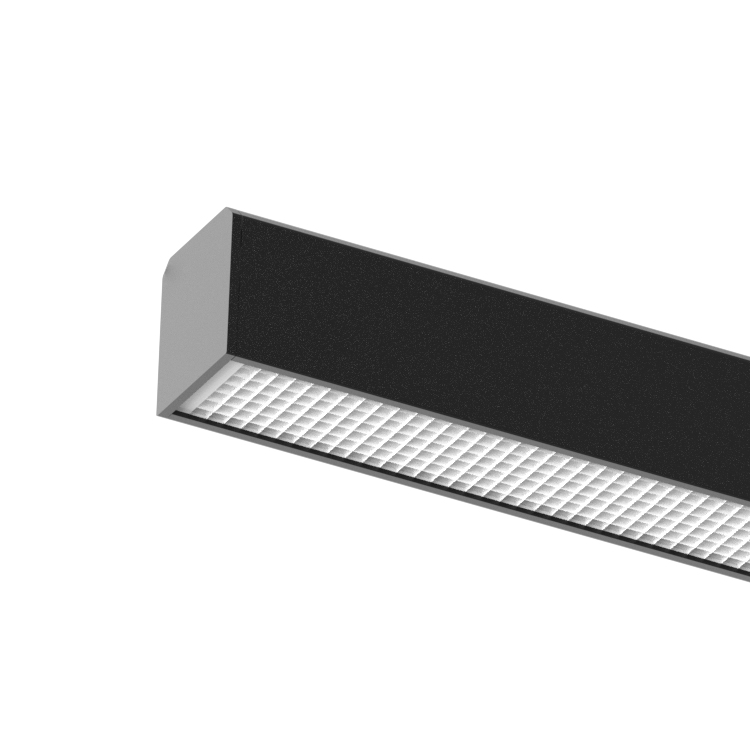

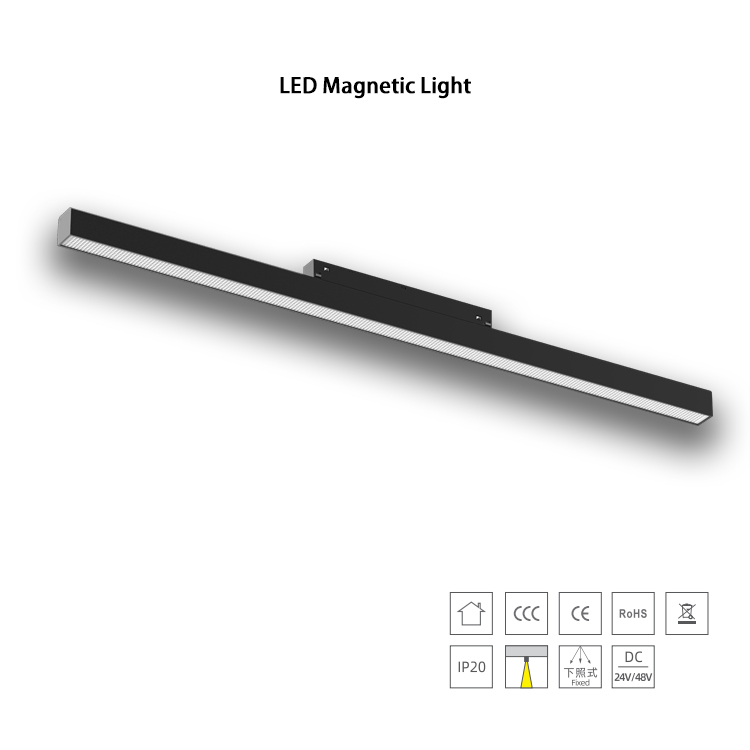

Rhombohedral Anti-Glare Plate (83°): Reduces direct glare while maintaining high light transmission.
-

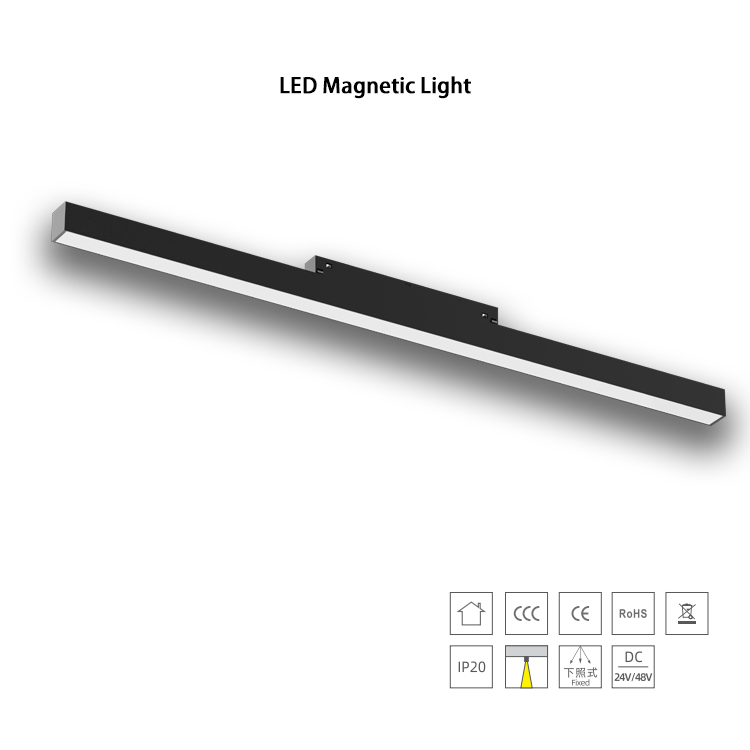

Conventional Diffuser Panel (100°): Creates soft, ambient light distribution across floors and walls.
-
Excellent Color Reproduction (CRI ≥ 90) High CRI ≥90 rating guarantees that colors, textures, and architectural details appear vibrant, accurate, and natural.
-
Flexible Lengths & Output Levels Choose from 10W (207mm), 20W (410mm), and 28W (612mm) to achieve optimal lux requirements for different room sizes.
-
Minimalist 22mm Profile Slim 22mm width matches standard magnetic track slots, creating a clean, flush linear appearance across ceilings.

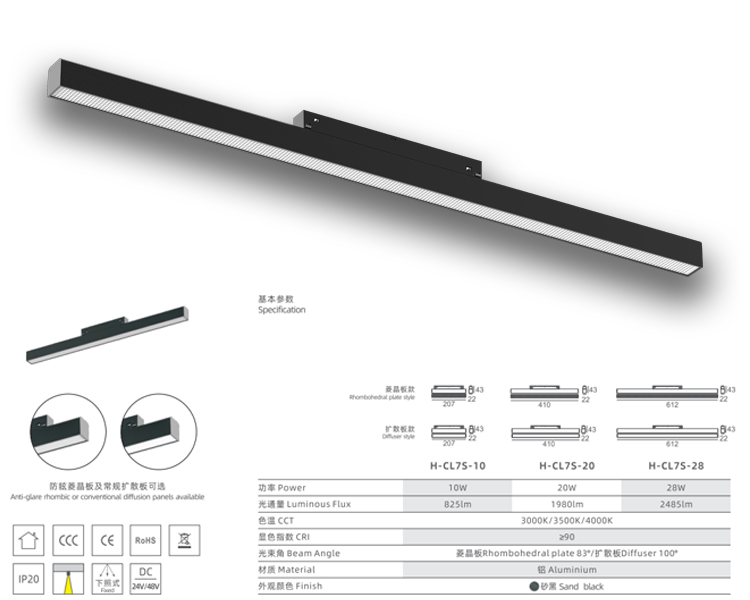

Product Specifications
-
Model Series: H-CL7S (H-CL7S-10 / H-CL7S-20 / H-CL7S-28)
-
Power Options: 10W / 20W / 28W
-
Luminous Flux: 825 lm (10W) / 1980 lm (20W) / 2485 lm (28W)
-
Input Voltage: DC 24V / DC 48V Magnetic Track
-
Color Rendering Index (CRI): ≥ 90
-
Color Temperature (CCT): 3000K (Warm White) / 3500K / 4000K (Neutral White)
-
Optics Options: Rhombohedral Anti-Glare Plate (83°) / Diffuser Panel (100°)
-
Housing Material: Extruded Aluminium
-
Finish: Sand Black (砂黑)
-
Fixture Type: Fixed Downward Linear Module (下照式)
-
Protection Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC
Dimensions & Mechanical Data
-
H-CL7S-10 (10W): Module Length: 207mm | Width: 22mm | Height: 43mm
-
H-CL7S-20 (20W): Module Length: 410mm | Width: 22mm | Height: 43mm
-
H-CL7S-28 (28W): Module Length: 612mm | Width: 22mm | Height: 43mm
Frequently Asked Questions (FAQ)
Q1: What is the difference between the Rhombohedral plate and the conventional Diffuser panel? A: The Rhombohedral plate features a micro-prism texture that controls glare at an 83° beam angle, making it ideal for visual comfort. The Diffuser panel provides a wider 100° beam, maximizing overall ambient light spread.
Q2: How do I combine H-CL7S linear floodlights with H-CG7S magnetic spotlights on the same track? A: Both modules use the same DC 24V/48V magnetic track system. You can mix linear floodlights (H-CL7S) for general ambient light and grille spotlights (H-CG7S) for direct accent lighting on a single track run.

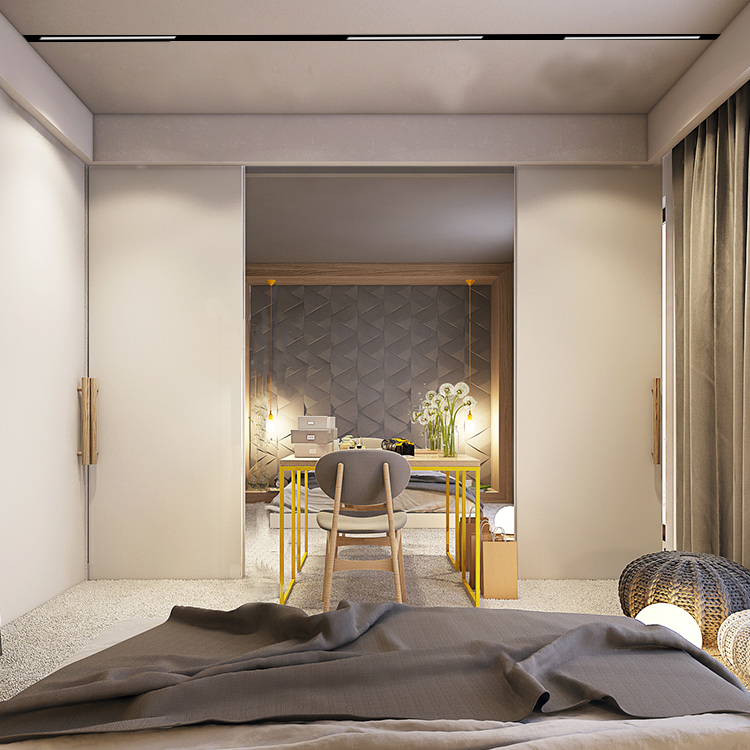

Q3: Where is this linear magnetic light best used? A: It is ideal for modern living rooms, open-plan kitchens, corridors, office spaces, and retail environments where seamless, line-of-light ambient illumination is desired.
