Product Overview

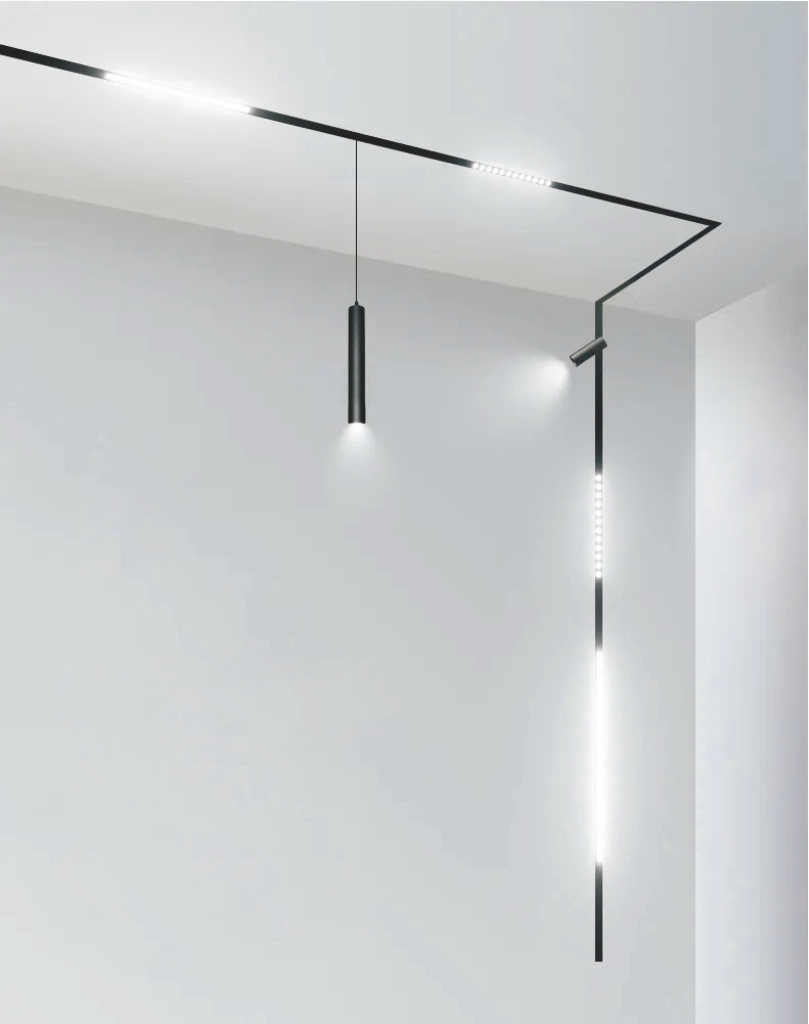

The H-CX3A Adjustable Magnetic LED Linear Grille Light Series introduces flexible directional illumination and sleek anti-glare design to modern low-voltage magnetic track systems. Operating on safe DC 24V or 48V power tracks, this versatile luminaire can be seamlessly repositioned or clicked into place along magnetic track rails without complex wiring.

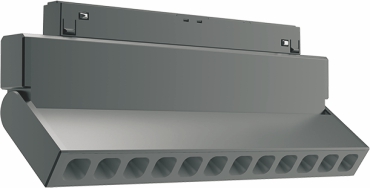

Crafted from precision die-cast aluminum in a Sand Black finish, the H-CX3A combines a slim 22mm profile with a 90° vertical tilt hinge. Equipped with high-CRI LEDs (CRI ≥ 90) and precision beam lenses (26° and 36°), it functions both as a hidden linear downlight and an adjustable wall-washer for residential living rooms, boutique retail displays, and executive spaces.
Key Features & Technical Advantages
-
90° Adjustable Folding Mechanism Incorporates a smooth vertical swivel joint allowing up to 90° tilt adjustment, making it easy to convert from ambient task lighting to accent wall washing.
-
Tool-Free Magnetic Track Integration Designed for DC24V/48V magnetic track channels, offering safe, effortless installation and quick layout adjustments without turning off main power.
-
Deep Anti-Glare Visual Comfort Deep-set louvers eliminate direct eye glare from standard sightlines, creating a refined dark-light visual effect on ceilings.
-
Two Power & Size Options
-
True-to-Life Color Accuracy (CRI ≥ 90) With CRI ≥ 90, indoor artwork, wood grains, and architectural textures maintain their authentic visual richness under 3000K, 3500K, or 4000K CCT options.
Product Specifications
-
Model Series: H-CX3A Series (H-CX3A-10 / H-CX3A-15)
-
Power Output Options:
-
H-CX3A-10: 10W
-
H-CX3A-15: 15W
-
Operating Voltage: Safe Low Voltage DC 24V / DC 48V
-
Luminous Efficacy: 70 lm/W
-
Color Temperature (CCT): 3000K / 3500K / 4000K
-
Color Rendering Index (CRI): ≥ 90
-
Optical Beam Angles: 26° / 36°
-
Tilt Adjustment Angle: 90° Vertical Swivel
-
Body Material: Aluminium
-
Available Finish: Sand Black (砂黑)
-
Installation Type: Low-Voltage Magnetic Track System
-
Protection Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC
Dimensions & Size Options
Frequently Asked Questions (FAQ)
Q1: What magnetic track systems are compatible with H-CX3A? A: The H-CX3A is designed for low-voltage magnetic track systems operating at DC24V or DC48V.
Q2: Can this light be used as both a downlight and a wall washer? A: Yes! Thanks to its 90° tilt articulation, you can keep it flush inside the track for direct downlighting or tilt it outward to serve as an accent wall-washer.
Q3: What are the main applications for the H-CX3A adjustable linear light? A: It is ideal for modern minimalist living rooms, art galleries, kitchen islands, and commercial showrooms requiring low-glare, adjustable linear lighting on magnetic track systems.
