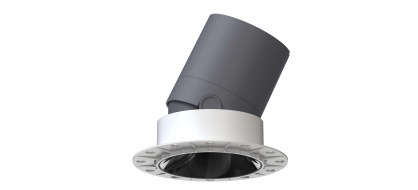

Architectural Sand White + Grey Finish Features a Sand White outer bezel paired with a Grey inner spotlight body
Dual-Axis $355^\circ$ Swivel & Tilt Aiming Provides full $355^\circ$ horizontal rotation and vertical tilt adjustment
Modular Size & Power Options
H-LA078ES: 5W / 7W / 9W | Faceplate $\Phi80\text{mm}$ | Height $73\text{mm}$ | Ceiling Cutout: $\Phi55\text{mm}$
H-LA078EM: 9W / 12W / 15W | Faceplate $\Phi105\text{mm}$ | Height $104\text{mm}$ | Ceiling Cutout: $\Phi75\text{mm}$
Comprehensive Optical Beam Selection ($15^\circ$ / $24^\circ$ / $36^\circ$ / $50^\circ$)
$15^\circ$ Narrow Spot: Focused beam for high-intensity spot lighting
$24^\circ / 36^\circ$ Medium Accent: Balanced coverage for feature walls and artwork
$50^\circ$ Wide Flood: Broad distribution for general directional illumination
Exceptional Color Accuracy (CRI $\ge 90$) With a Color Rendering Index of $\ge 90$
Model Series: H-LA078E Series (H-LA078ES / H-LA078EM)
Power Options:
H-LA078ES: 5W / 7W / 9W
H-LA078EM: 9W / 12W / 15W
Luminous Efficacy: $70\text{ lm/W}$
Color Temperature (CCT): $3000\text{K}$ (Warm White) / $4000\text{K}$ (Neutral White) / $5000\text{K}$ (Cool Daylight)
Color Rendering Index (CRI): $\ge 90$
Optical Beam Angles: $15^\circ / 24^\circ / 36^\circ / 50^\circ$
Adjustable Mechanism: Vertical Tilt Articulation | $355^\circ$ Horizontal Swivel
Body Material: Aluminium
Available Finish: Sand White + Grey (砂白+灰色)
Installation Type: Recessed Ceiling Mounted
Protection Rating: IP20 (Indoor Use)
