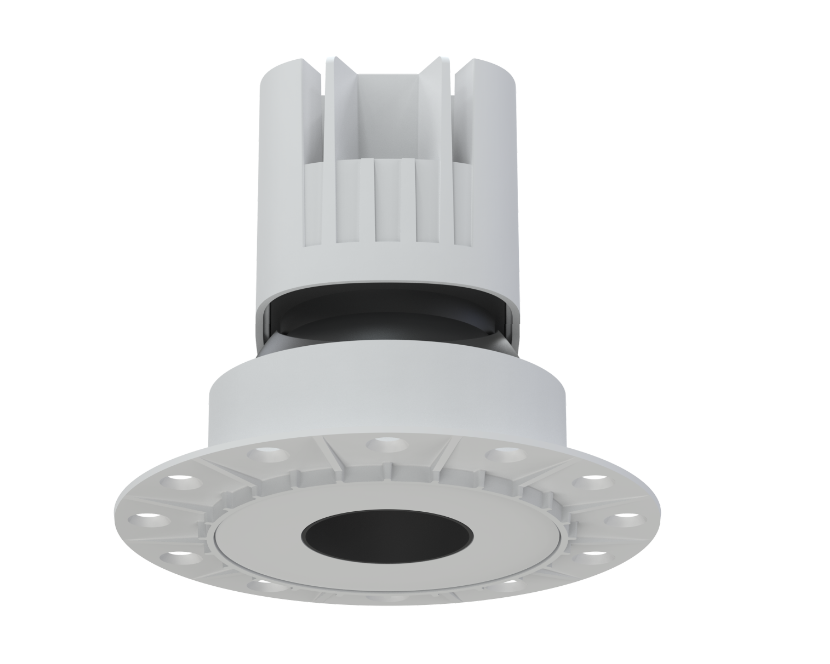

Deep Optical Anti-Glare Architecture Designed with a deeply recessed light engine and anti-glare baffle cut-off
Minimalist Sand White Aesthetic Features a clean circular faceplate finished in classic Sand White
Dedicated Vertical Downward Stability Engineered as a fixed downlight
Modular Size & Power Options
H-LA124EOS: 5W / 7W / 9W | Faceplate $\Phi80\text{mm}$ | Height $68\text{mm}$ | Ceiling Cutout: $\Phi55\text{mm}$
H-LA124EOM: 9W / 12W / 15W | Faceplate $\Phi105\text{mm}$ | Height $96\text{mm}$ | Ceiling Cutout: $\Phi75\text{mm}$
Precision Optics Selection ($15^\circ$ / $24^\circ$ / $36^\circ$ / $50^\circ$)
$15^\circ / 24^\circ$ Narrow & Medium: Focused beams for targeted surface accent lighting
$36^\circ / 50^\circ$ Flood & Wide Flood: Broad distribution for general room downlighting and corridor illumination
High Color Accuracy (CRI $\ge 90$) With a Color Rendering Index of $\ge 90$
Model Series: H-LA124EO Series (H-LA124EOS / H-LA124EOM)
Power Options:
H-LA124EOS: 5W / 7W / 9W
H-LA124EOM: 9W / 12W / 15W
Luminous Efficacy: $50\text{ lm/W}$
Color Temperature (CCT): $3000\text{K}$ (Warm White) / $4000\text{K}$ (Neutral White) / $5000\text{K}$ (Cool Daylight)
Color Rendering Index (CRI): $\ge 90$
Optical Beam Angles: $15^\circ / 24^\circ / 36^\circ / 50^\circ$
Downlight Type: Fixed Downward Light (Non-Adjustable)
Body Material: Aluminium
Available Finish: Sand White (砂白)
Installation Type: Recessed Ceiling Mounted
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
