Product Overview

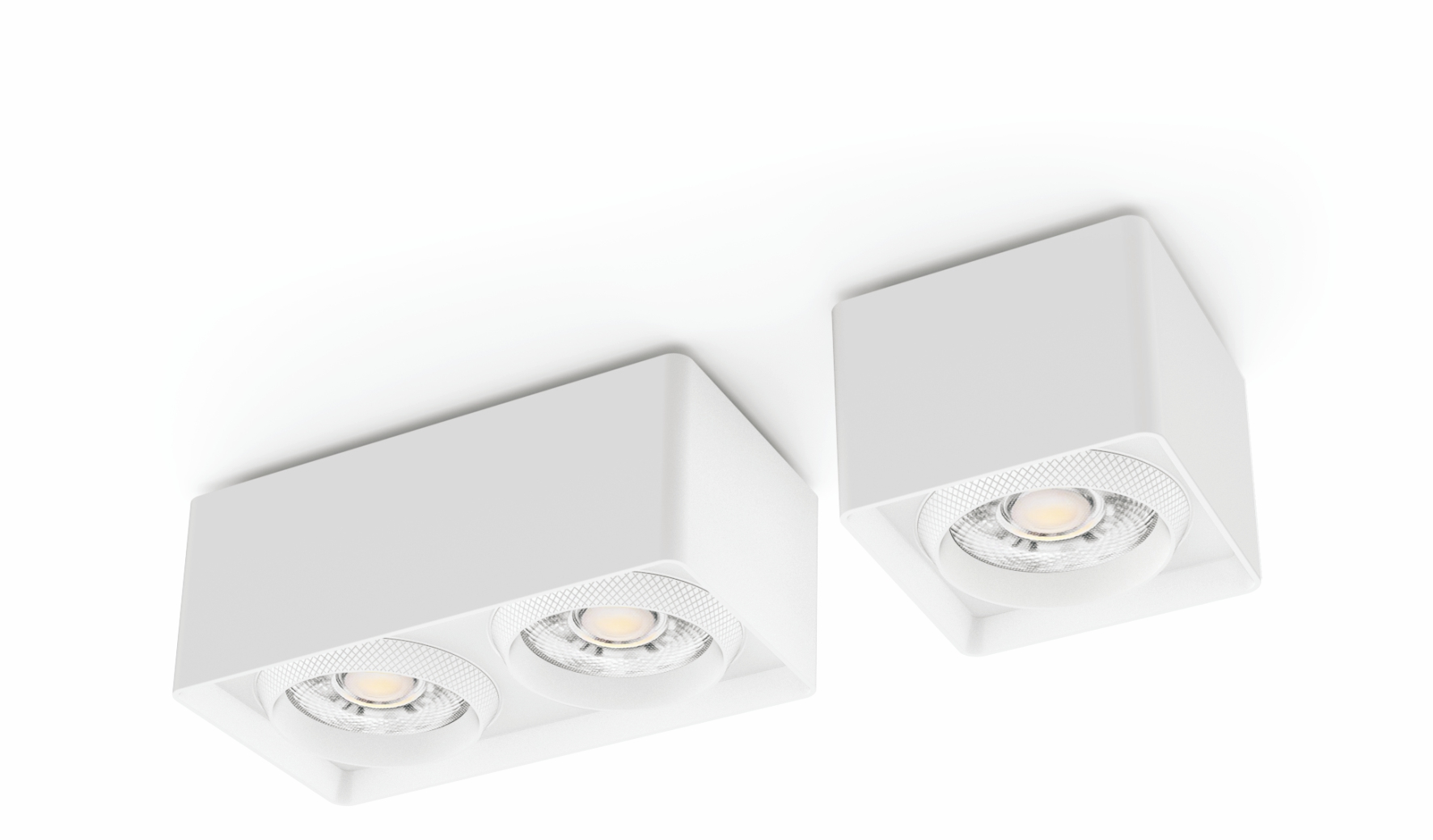

The H-LB023-2 Double Head LED Downlight brings clean rectangular geometry and high-performance dual illumination to modern residential homes, hotel rooms, and commercial spaces. Combining two 9W spotlight modules inside a compact 145x75mm aluminum frame with a height of 60mm, this fixture doubles luminous output while preserving a clean, minimalist ceiling aesthetic.
Crafted from die-cast aluminum in a smooth Sand White finish, the H-LB023-2 features high color rendering performance (CRI ≥ 90) and broad CCT options (3000K, 4000K, 5000K). Equipped with fixed downward optical lenses (15°, 24°, 36°), it provides glare-controlled task and accent lighting for kitchen islands, hallway corridors, executive desks, and retail display areas.
Key Features & Technical Advantages
-
Twin-Module Architectural Profile Features two 9W LED modules housed inside a single 145 x 75mm rectangular frame, delivering balanced double-point lighting for corridors and display surfaces.
-
Fixed Anti-Glare Downward Light Output Designed for direct downward illumination with optical lens shielding to reduce eye glare and improve visual comfort.
-
Versatile Optical Beam Control (15° / 24° / 36°)
-
15° Narrow Spot: Focused beam for high-intensity spot lighting onto specific objects or counters.
-
24° Medium Beam: Balanced lighting for kitchen islands, dining spaces, and artwork.
-
36° Wide Flood: Broad, uniform coverage for general linear downlighting.
-
True-Color Fidelity (CRI ≥ 90) With a high Color Rendering Index of ≥90, interior finishes, fabrics, and decor maintain their natural visual depth across 3000K, 4000K, or 5000K options.
-
Durable Aluminum Heat Sink Precision-machined aluminum housing provides efficient heat dissipation, extending chip performance and operational longevity.
Product Specifications
-
Model: H-LB023-2
-
System Power: 2 x 9W (18W Total)
-
Luminous Efficacy: 85 lm/W
-
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool Daylight)
-
Color Rendering Index (CRI): ≥ 90
-
Optical Beam Angles: 15° / 24° / 36°
-
Light Type: Fixed Downward Light
-
Body Material: Aluminium
-
Available Finish: Sand White (砂白)
-
Frame Dimensions: 145 x 75 x 60mm
-
Installation Type: Ceiling Mounted
-
Protection Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC
Dimensions & Size Data
Frequently Asked Questions (FAQ)
Q1: What is the main difference between H-LB023-1 and H-LB023-2? A: The H-LB023-1 is a single-head 9W square downlight (75x75mm), while the H-LB023-2 is a double-head 2x9W rectangular downlight (145x75mm) for higher total light output.
Q2: Is this fixture tiltable or fixed? A: The H-LB023-2 features fixed downward optics designed for clean, glare-controlled direct downlighting.
Q3: Where is the H-LB023-2 best installed? A: It is ideal for hallway corridors, kitchen islands, dining tables, hotel guest rooms, and retail display zones where dual-point linear downlighting is desired
