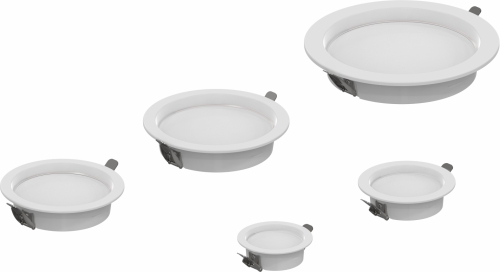

H-LB057 Ultra-Slim Recessed LED Downlight 6W-22W | Matt White Ceiling Light

H-LB057-2.5: 6W | Frame Φ85mm | Cutout: Φ75mm

H-LB057-3: 8W | Frame Φ110mm | Cutout: Φ95mm

H-LB057-4: 12W | Frame Φ140mm | Cutout: Φ120mm

H-LB057-5: 15W | Frame Φ165mm | Cutout: Φ150mm

H-LB057-8: 22W | Frame Φ220mm | Cutout: Φ200mm

Model Series: H-LB057 Series (H-LB057-2.5 / 3 / 4 / 5 / 8)

System Power Options: 6W / 8W / 12W / 15W / 22W

Luminous Efficacy: 100 lm/W

Color Temperature (CCT): 3000K / 4000K / 5000K

Color Rendering Index (CRI): ≥ 80

Beam Angle: 100° Wide Flood

Body Material: Iron

Available Finish: Matt White (哑白)

Installation Type: Recessed Ceiling Mounted

Certifications: CE, RoHS, CCC

H-LB057-2.5 (6W): Faceplate Φ85mm | Height 27.5mm | Cutout: Φ75mm

H-LB057-3 (8W): Faceplate Φ110mm | Height 30mm | Cutout: Φ95mm

H-LB057-4 (12W): Faceplate Φ140mm | Height 33mm | Cutout: Φ120mm

H-LB057-5 (15W): Faceplate Φ165mm | Height 36mm | Cutout: Φ150mm

H-LB057-8 (22W): Faceplate Φ220mm | Height 40mm | Cutout: Φ200mm

6W (H-LB057-2.5): Requires a Φ75mm cutout.

8W (H-LB057-3): Requires a Φ95mm cutout.

12W (H-LB057-4): Requires a Φ120mm cutout.

15W (H-LB057-5): Requires a Φ150mm cutout.
