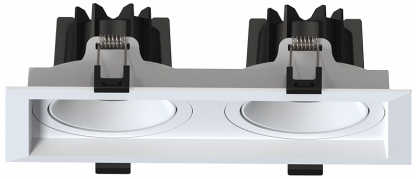

Twin Independent Head Architecture Houses two independent spotlight modules inside one architectural rectangular frame
Anti-Glare Dual-Tone Aesthetic Features a Sand White outer trim with recessed Sand Black internal baffles
Independent Dual-Axis Aiming ($355^\circ$ Swivel & Tilt) Each light head rotates $355^\circ$ horizontally and tilts vertically

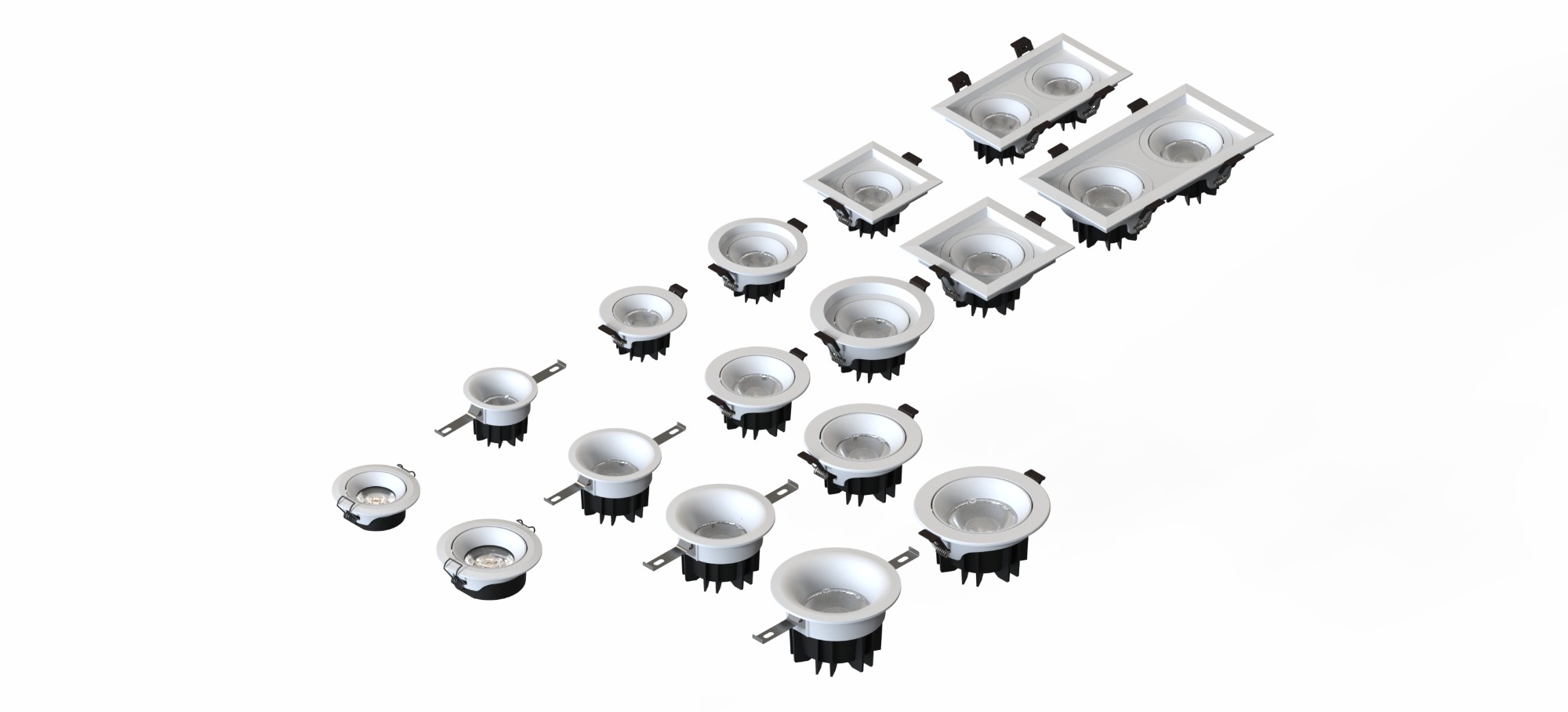

Modular Sizes & Power Tiers
H-LC048S-2: $2\times5\text{W} / 2\times7\text{W}$ | Frame $150\times80\text{mm}$ | Height $43\text{mm}$ | Cutout: $135\times65\text{mm}$
H-LC048M-2: $2\times7\text{W} / 2\times9\text{W} / 2\times12\text{W}$ | Frame $190\times100\text{mm}$ | Height $53\text{mm}$ | Cutout: $175\times85\text{mm}$
True-Color Reproduction (CRI $\ge 90$) With a Color Rendering Index of $\ge 90$
Model Series: H-LC048-2 Series (H-LC048S-2 / H-LC048M-2)
System Power Options:
H-LC048S-2: $2\times5\text{W}$ / $2\times7\text{W}$
H-LC048M-2: $2\times7\text{W}$ / $2\times9\text{W}$ / $2\times12\text{W}$
Luminous Efficacy: $85\text{ lm/W}$
Color Temperature (CCT): $3000\text{K}$ (Warm White) / $4000\text{K}$ (Neutral White) / $5000\text{K}$ (Cool Daylight)
Color Rendering Index (CRI): $\ge 90$
Optical Beam Angles: $15^\circ / 24^\circ / 36^\circ$
Adjustable Mechanism: Independent Vertical Tilt | $355^\circ$ Horizontal Swivel
Body Material: Aluminium
Available Finish: Sand White + Sand Black Dual-Tone (砂白+砂黑)
Installation Type: Recessed Ceiling Mounted
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
H-LC048S-2: Frame $150 \times 80\text{mm}$ | Height $43\text{mm}$ | Ceiling Cutout: $135 \times 65\text{mm}$
H-LC048M-2: Frame $190 \times 100\text{mm}$ | Height $53\text{mm}$ | Ceiling Cutout: $175 \times 85\text{mm}$
