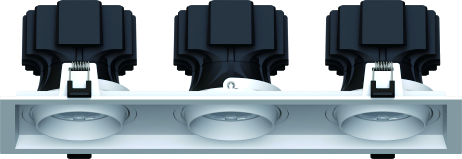

Triple-Module Linear Array Architecture Combines three high-performance spotlight modules in a single architectural faceplate
Independent Dual-Axis Aiming (355° Swivel & Tilt) Each of the three light heads operates independently with 355° horizontal rotation and vertical tilt mechanism
Anti-Glare Visual Comfort Deep-set Sand Black inner baffles absorb excess glare
Comprehensive Power & Cutout Options
H-LC109M-3: 3x15W | Frame 285x95mm | Height 72mm | Ceiling Cutout: 270x80mm
H-LC109L-3: 3x25W | Frame 343x118mm | Height 87mm | Ceiling Cutout: 325x100mm
H-LC109I-3: 3x35W | Frame 445x155mm | Height 109mm | Ceiling Cutout: 425x135mm
Exceptional Color Accuracy (CRI ≥ 90) With a high Color Rendering Index of ≥90
Model Series: H-LC109 Triple Head Series (H-LC109M-3 / H-LC109L-3 / H-LC109I-3)
System Power Options:
H-LC109M-3: 3x15W | 85 lm/W
H-LC109L-3: 3x25W | 85 lm/W
H-LC109I-3: 3x35W | 85 lm/W
Color Rendering Index (CRI): ≥ 90
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool Daylight)
Optical Beam Angles: 15° / 24° / 36° / 50°
Adjustable Movement: Independent Vertical Tilt | 355° Horizontal Swivel
Body Material: Die-Cast Aluminium
Available Finish: Sand White + Sand Black Dual-Tone (砂白+砂黑)
Installation Type: Recessed Ceiling Mounted
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
H-LC109M-3 (3x15W): Frame 285 x 95mm | Height 72mm | Ceiling Cutout: 270 x 80mm
H-LC109L-3 (3x25W): Frame 343 x 118mm | Height 87mm | Ceiling Cutout: 325 x 100mm
H-LC109I-3 (3x35W): Frame 445 x 155mm | Height 109mm | Ceiling Cutout: 425 x 135mm
3x15W Model (H-LC109M-3): Requires a 270 x 80mm cutout[cite: 17].
3x25W Model (H-LC109L-3): Requires a 325 x 100mm cutout[cite: 17].
3x35W Model (H-LC109I-3): Requires a 425 x 135mm cutout[cite: 17].
