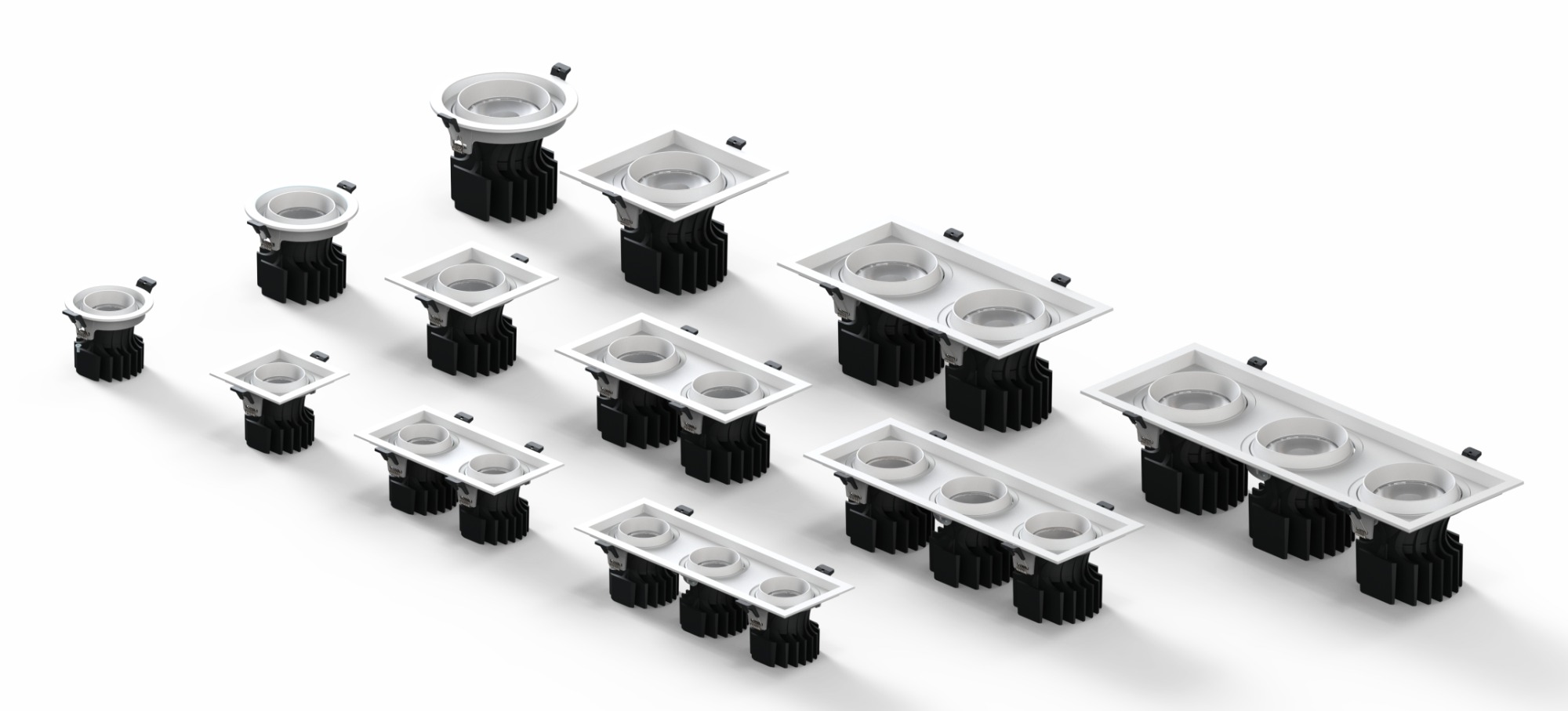

Architectural Square Dual-Tone Aesthetics Combines a clean square Sand White outer border with a Sand Black internal ring
Dual-Axis 355° Swivel & Tilt Aiming Offers full 355° horizontal rotation and vertical tilt adjustability
Modular Power & Cutout Options
H-LC109M-1: 15W | Cutout 80x80mm | Frame 95x95mm | Height 72mm
H-LC109L-1: 25W | Cutout 100x100mm | Frame 118x118mm | Height 87mm
H-LC109I-1: 35W | Cutout 135x135mm | Frame 155x155mm | Height 109mm
Comprehensive Optical Beam Selection (15° / 24° / 36° / 50°)
15° Narrow Spot: High-intensity beam for tight display accenting
24° / 36° Medium Accent: Balanced distribution for artwork and wall washing
50° Wide Flood: Broad coverage for general spatial downlighting
Exceptional Color Accuracy (CRI ≥ 90) A high Color Rendering Index of ≥90
Model Series: H-LC109 Series (H-LC109M-1 / H-LC109L-1 / H-LC109I-1)
Power Options & Efficacy:
H-LC109M-1: 15W | 85 lm/W
H-LC109L-1: 25W | 85 lm/W
H-LC109I-1: 35W | 85 lm/W
Color Rendering Index (CRI): ≥ 90
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool Daylight)
Optical Beam Angles: 15° / 24° / 36° / 50°
Adjustable Features: Vertical Tilt Articulation | 355° Horizontal Swivel
Body Material: Aluminium
Available Finish: Sand White + Sand Black Dual-Tone (砂白+砂黑)
Installation Type: Recessed Ceiling Mounted
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
H-LC109M-1 (15W): Frame 95 x 95mm | Height 72mm | Ceiling Cutout: 80 x 80mm
H-LC109L-1 (25W): Frame 118 x 118mm | Height 87mm | Ceiling Cutout: 100 x 100mm
H-LC109I-1 (35W): Frame 155 x 155mm | Height 109mm | Ceiling Cutout: 135 x 135mm
15W Model (H-LC109M-1): Requires an 80 x 80mm square cutout
