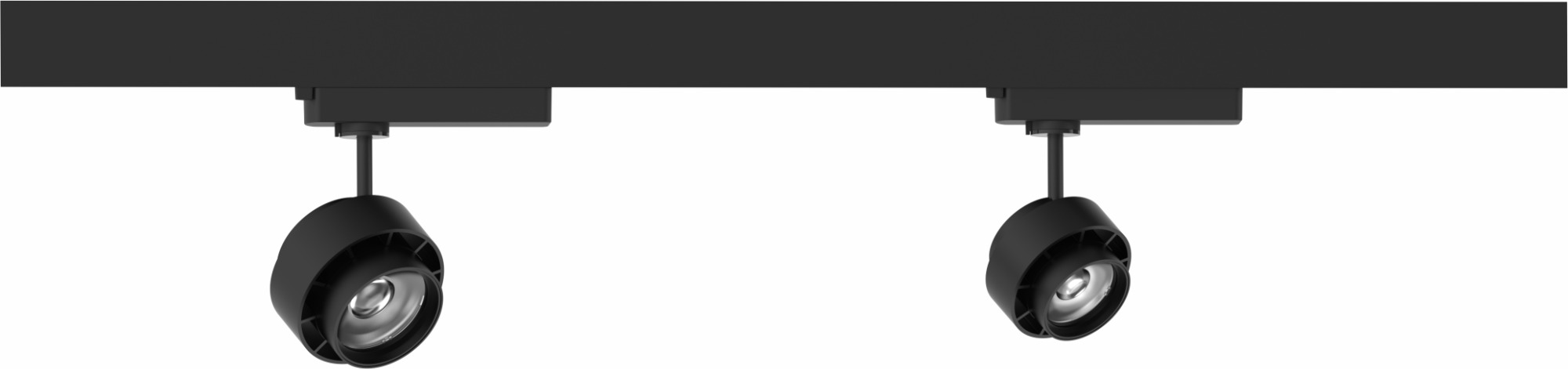

Compact Low-Profile Cylinder Design Engineered with a shorter body height (62mm to 72mm) compared to traditional spotlights
Dual-Axis 355° Swivel & 90° Tilt Multi-directional positioning capabilities
Versatile Optical Beam Angles (15° / 24° / 36°)
15° Narrow Spot: Concentrated high-intensity beam for distant highlights and key display objects
24° Medium Beam: Ideal for balanced retail shelf lighting and general accent washing
36° Wide Flood: Provides smooth, uniform area coverage for wider displays and walls
True-to-Life Color Accuracy (CRI ≥ 90) A high Color Rendering Index of ≥90
Durable Aluminium Housing Constructed from premium aluminum for optimal thermal dissipation and extended LED chip longevity
Model Series: H-LD022 Series (H-LD022S / H-LD022M)
System Power & Efficacy:
H-LD022S: 25W | 85 lm/W
H-LD022M: 35W | 85 lm/W
Color Rendering Index (CRI): ≥ 90
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool Daylight)
Beam Angles: 15° / 24° / 36°
Adjustable Angles: 355° Horizontal Swivel | 90° Vertical Tilt
Body Material: Aluminium
Available Finishes: Sand White (砂白) / Sand Black (砂黑)
Installation Type: Track Mounted
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
H-LD022S (25W): Head Diameter Φ85mm | Cylinder Height 62mm | Track Base Length 148mm
H-LD022M (35W): Head Diameter Φ100mm | Cylinder Height 72mm | Track Base Length 148mm
25W (H-LD022S): Ideal for standard retail shops, residential living rooms, and medium ceilings (2.6m - 3.2m)
35W (H-LD022M): Recommended for high-ceiling retail stores, auto showrooms, and commercial galleries requiring higher light intensity
