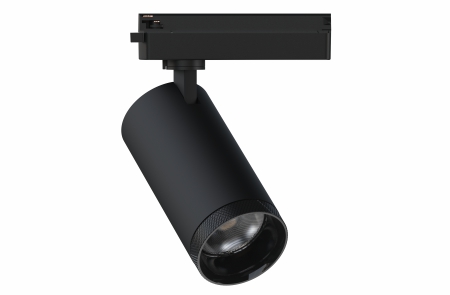

Integrated Driver Track Box Assembly Features a streamlined adapter box that hides the internal electronics within the track structure
Modular Power & Size Options
H-LD059S-Pro: 12W / 15W | Head Diameter Φ55mm
H-LD059M-Pro: 20W / 25W | Head Diameter Φ65mm
H-LD059L-Pro: 30W / 35W | Head Diameter Φ75mm
Dual-Axis Positioning (355° Swivel & 90° Tilt) Full multi-directional swivel capabilities
Precision Optical Beam Control (15° / 24° / 36°)
15° Narrow Spot: High-intensity beam for accenting key featured items and wall displays from a distance
24° Medium Beam: Balanced lighting ideal for retail racks, mannequins, and artwork
36° Wide Flood: Smooth, uniform light beam for broad wall washing and general retail lighting
True Color Reproduction (CRI ≥ 90) A high Color Rendering Index of ≥90
Model Series: H-LD059-Pro Series (H-LD059S-Pro / H-LD059M-Pro / H-LD059L-Pro)
Power Output Options:
Small (S-Pro): 12W / 15W
Medium (M-Pro): 20W / 25W
Large (L-Pro): 30W / 35W
Luminous Efficacy: 85 lm/W
Color Rendering Index (CRI): ≥ 90
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool Daylight)
Beam Angles: 15° / 24° / 36°
Adjustable Angles: 355° Horizontal Swivel | 90° Vertical Tilt
Body Material: Aluminium
Available Finish: Sand Black (砂黑)
Track Adaptor System: Integrated Box (2-Wire / 3-Wire / 4-Wire)
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
H-LD059S-Pro (12W/15W): Head Diameter Φ55mm | Head Length 117mm | Integrated Box 123mm/149mm
H-LD059M-Pro (20W/25W): Head Diameter Φ65mm | Head Length 123mm | Integrated Box 123mm/149mm
H-LD059L-Pro (30W/35W): Head Diameter Φ75mm | Head Length 135mm | Integrated Box 158mm/149mm
