Trackless Direct Ceiling Mounting Designed for spaces where track rails or recessed downlights are impractical

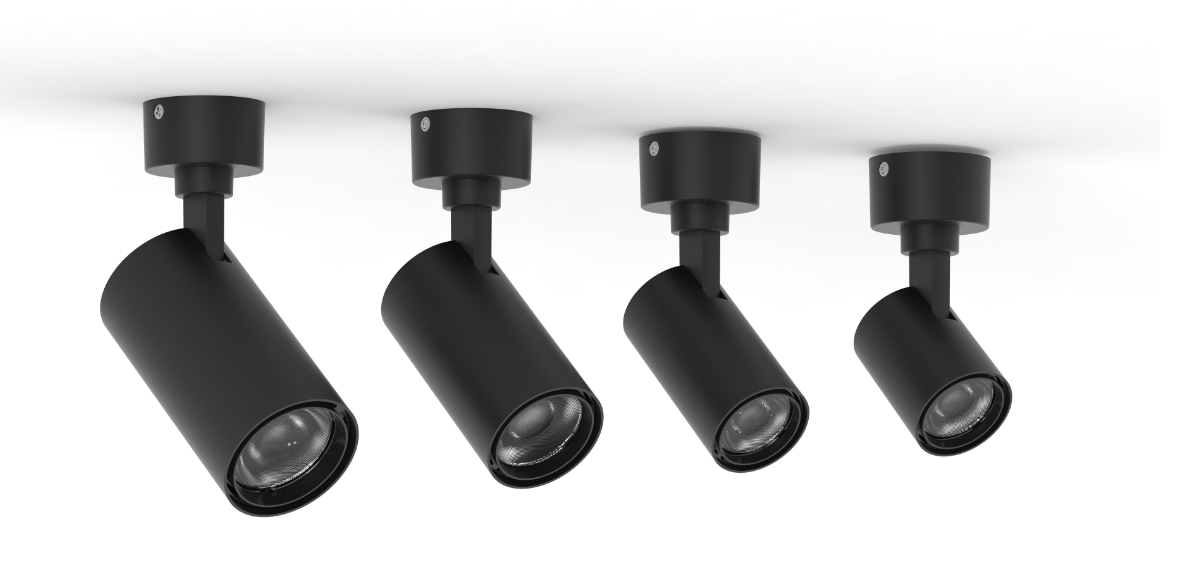

Four Modular Wattage & Size Options
H-FB-LD059S: 7W / 9W | Head Diameter Φ45mm | Length 85mm
H-LD059S: 12W / 15W | Head Diameter Φ55mm | Length 100mm
H-D059M: 20W / 24W | Head Diameter Φ65mm | Length 120mm
H-LD059L: 30W / 35W | Head Diameter Φ75mm | Length 140mm
Dual-Axis Positioning (355° Swivel & 90° Tilt) Features multi-directional articulation
Precision Optical Optics (15° / 24° / 36°)
15° Narrow Beam: Concentrated spot beam for highlighting specific artwork, objects, or columns
24° Medium Beam: Balanced beam for task illumination, kitchen counters, and retail displays
36° Wide Beam: Smooth, broad flood for general ambient and area lighting
Exceptional Color Accuracy (CRI ≥ 90) With a high Color Rendering Index of ≥90
Model Series: H-LD059 Surface Mounted Series (H-FB-LD059S / H-LD059S / H-D059M / H-LD059L)
System Power Options:
Extra Small (FB-S): 7W / 9W
Small (S): 12W / 15W
Medium (M): 20W / 24W
Large (L): 30W / 35W
Luminous Efficacy: 90 lm/W
Color Rendering Index (CRI): ≥ 90
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool Daylight)
Beam Angles: 15° / 24° / 36°
Adjustable Angles: 355° Horizontal Swivel | 90° Vertical Tilt
Body Material: Die-Cast Aluminium
Available Finish: Sand Black (砂黑)
Base Canopy Dimensions: Φ62mm x 35mm
Installation Type: Surface Mounted Ceiling
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
