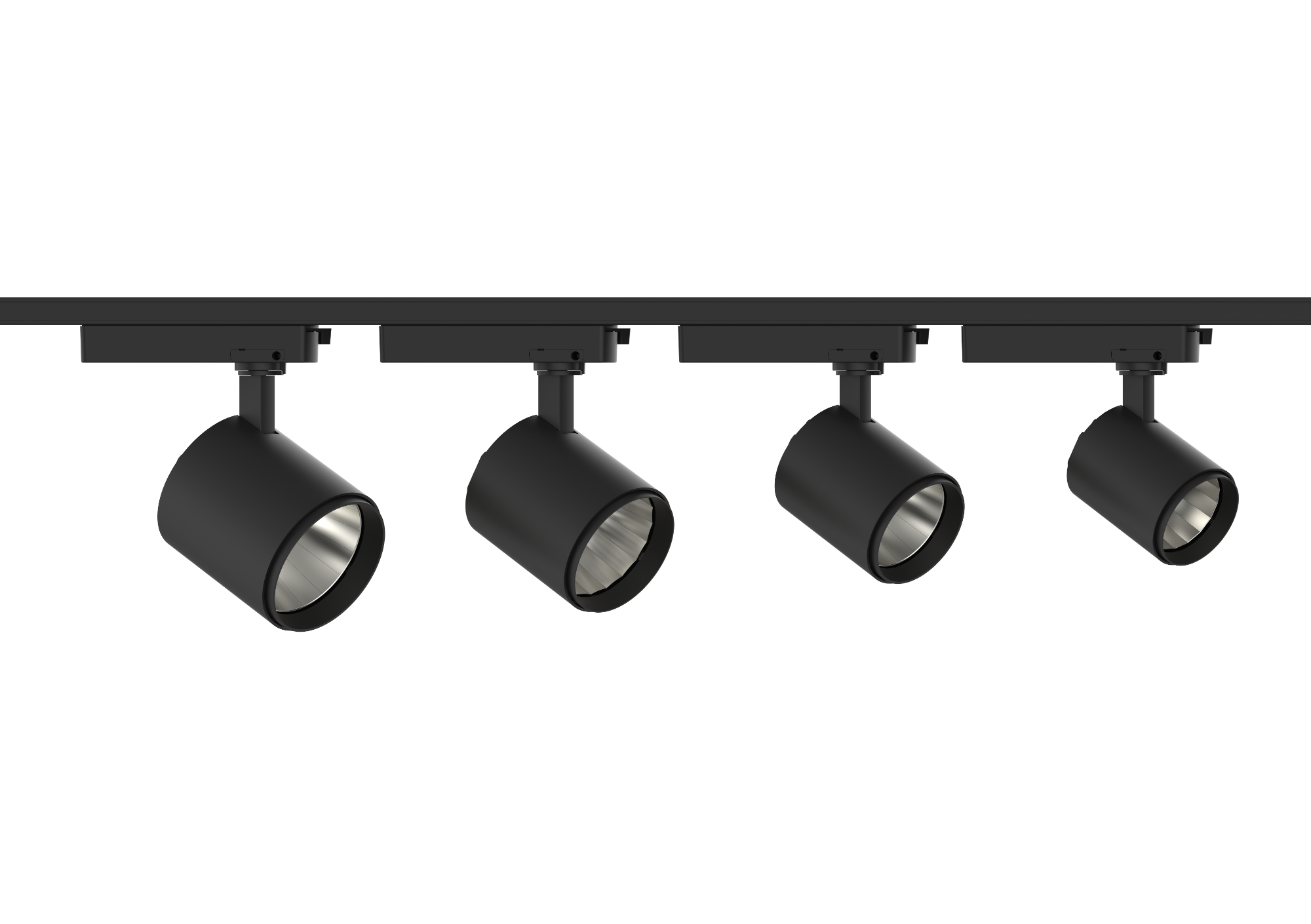

Product Overview
The H-LD069 Commercial LED Track Light Series brings powerful, efficient, and highly adjustable illumination to architectural and commercial spaces. Designed with an ultra-sleek 4-wires integrated track adapter, this spotlight eliminates bulky external driver boxes, offering a streamlined aesthetic that blends seamlessly into modern retail stores, art galleries, museums, offices, and hospitality venues.

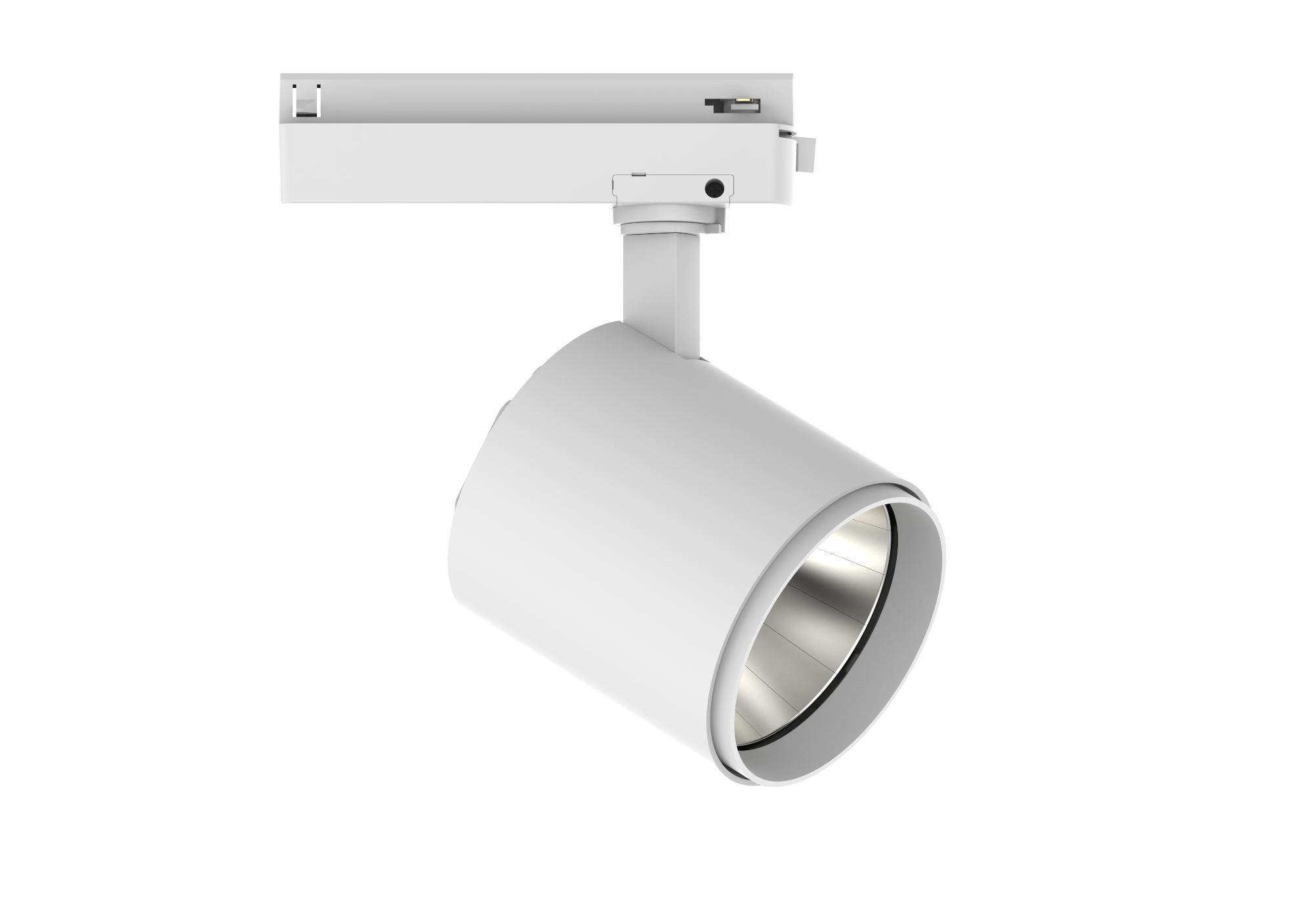

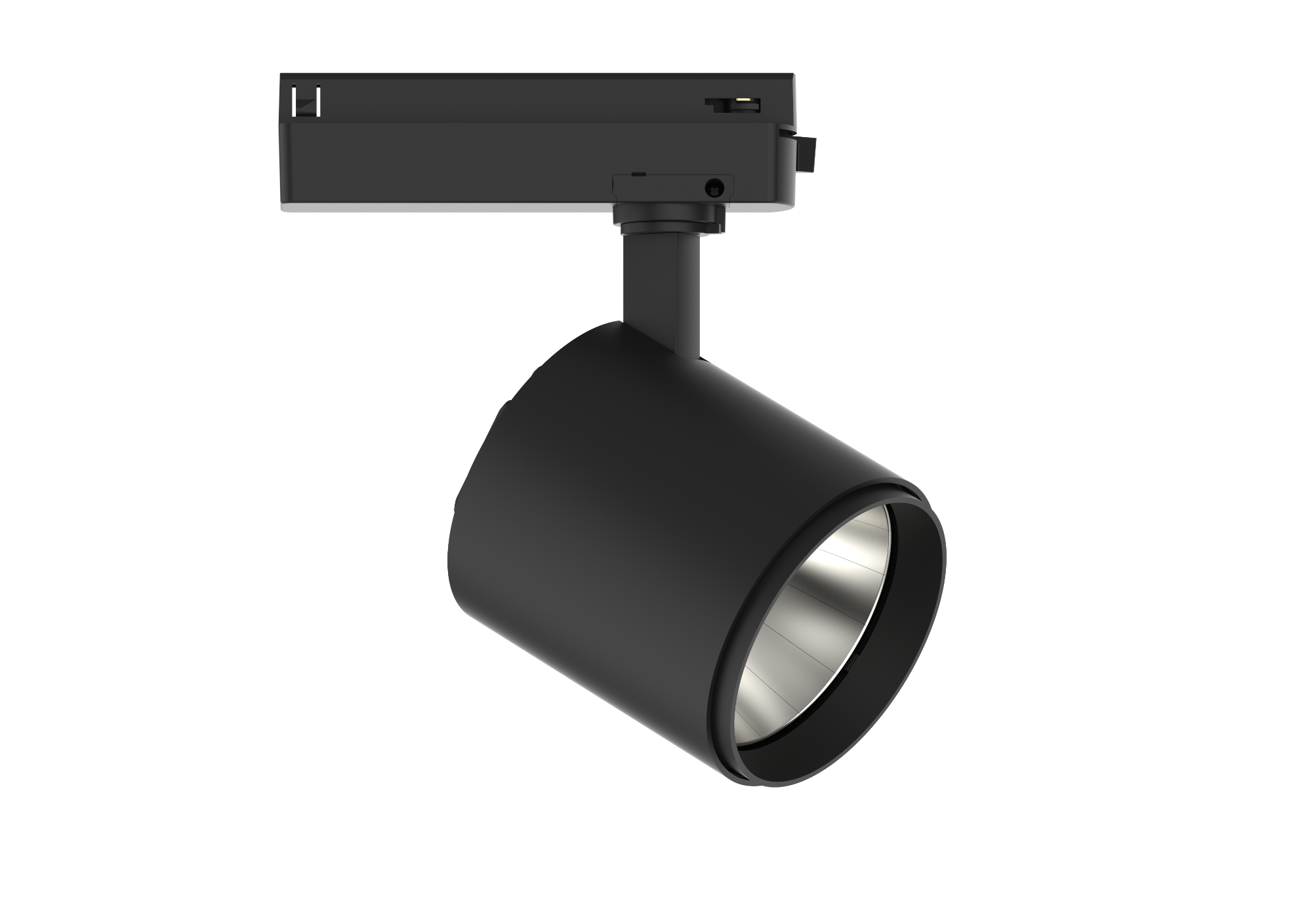

Made from premium die-cast aluminum with sand white and sand black finishes, the H-LD069 series ensures excellent thermal management, long-lasting performance, and modern visual appeal.
Key Features & Technical Advantages
-
Ultra-High Luminous Efficacy (140 lm/W)
Engineered for high-performance energy saving, delivering exceptional light output while lowering overall energy consumption compared to standard LED track lights.
-
High Color Rendering Index (CRI ≥ 90)
Accurately reveals the true colors of merchandise, artwork, and interior architecture. Ideal for accent lighting in luxury retail and exhibition spaces.
-
Multi-Angle Flexibility (355° Horizontal / 90° Vertical)
Features smooth 355° horizontal rotation and 90° vertical tilt, allowing precise direction of light to highlight specific products or wall displays effortlessly.
-
Modular Beam Angles for Customized Lighting
Choose between 24° narrow spot, 36° medium flood, and 60° wide flood beam angles to suit spot, accent, or ambient lighting needs.
-
Integrated 4-Wire Track Box Design
Designed with an integrated driver-in-track box for quick installation, stable electrical connection, and a minimal visual footprint.
Product Specifications Table
-
Model Series: H-LD069 (H-LD069-70 / 80 / 90 / 100)
-
Power Options: 10W/15W (70#), 20W/25W (80#), 30W/35W (90#), 40W/45W (100#)
-
Luminous Efficacy: 140 lm/W
-
Color Rendering Index (CRI): ≥ 90
-
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool White)
-
Beam Angle: 24° / 36° / 60°
-
Material: High-Grade Aluminum (铝)
-
Finish Options: Sand White (砂白), Sand Black (砂黑)
-
Rotation Angle: Horizontal: 355° / Vertical: 90°
-
Track Adapter: 4-Wires Integrated Track Box Adapter
-
IP Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC

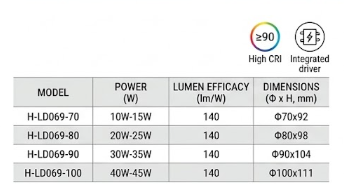

Dimensions & Models Quick Selection
-
H-LD069-70 (10W / 15W): Φ70mm x 92mm Head | Track Box Length: 123mm
-
H-LD069-80 (20W / 25W): Φ80mm x 98mm Head | Track Box Length: 123mm
-
H-LD069-90 (30W / 35W): Φ90mm x 104mm Head | Track Box Length: 158mm
-
H-LD069-100 (40W / 45W): Φ100mm x 111mm Head | Track Box Length: 158mm
Frequently Asked Questions (FAQ)
Q1: What environments are best suited for the H-LD069 LED Track Light?

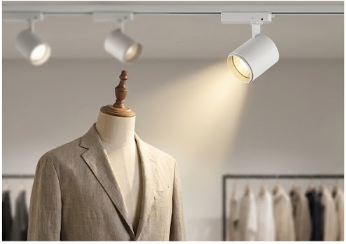

A: Thanks to its high CRI (≥90) and high efficiency (140lm/W), the H-LD069 is ideal for commercial applications such as clothing boutiques, jewelry stores, art galleries, museums, shopping malls, and high-end office environments requiring precise accent lighting.
Q2: What is the benefit of the 4-wire integrated track box design?
