Product Overview

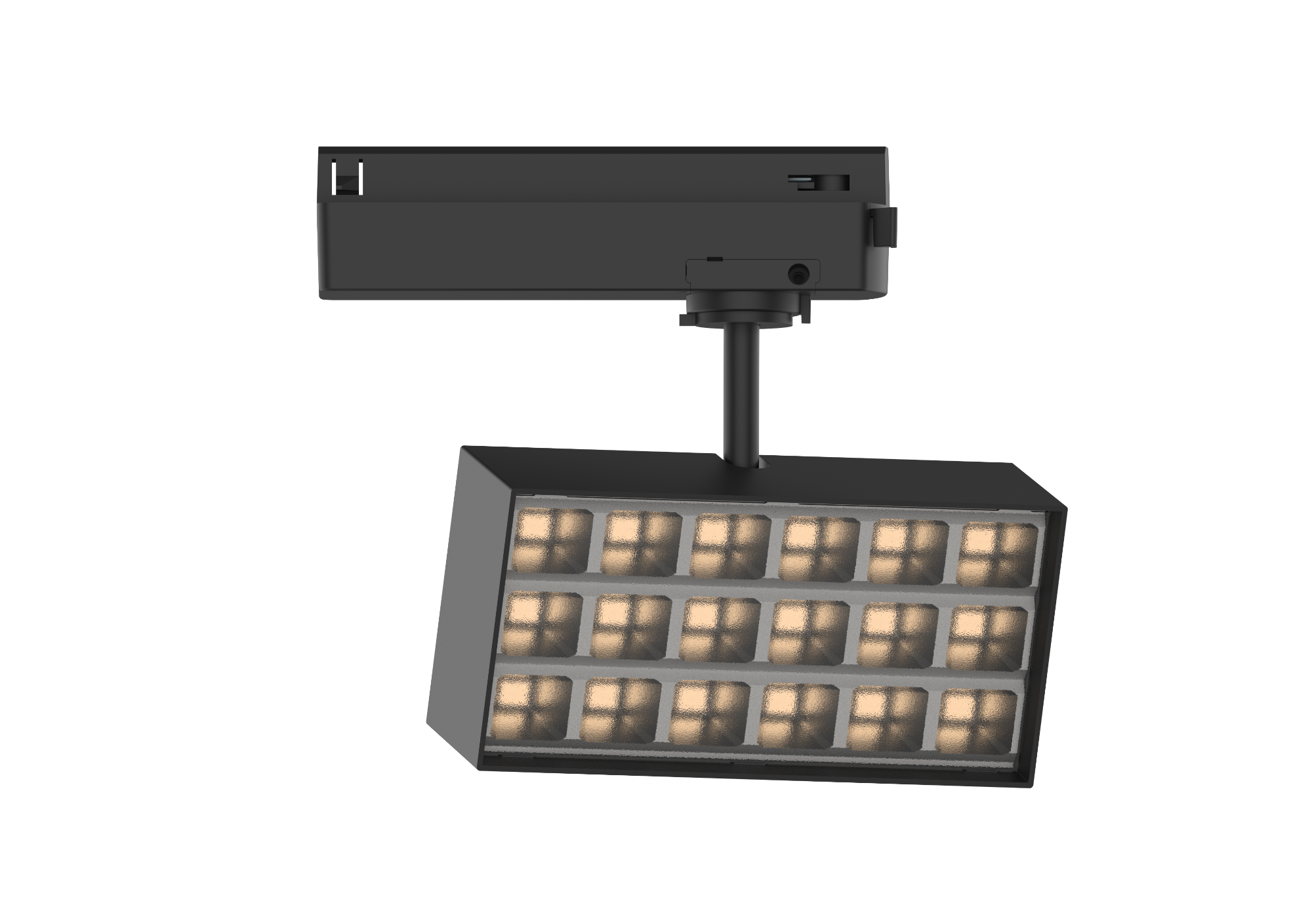

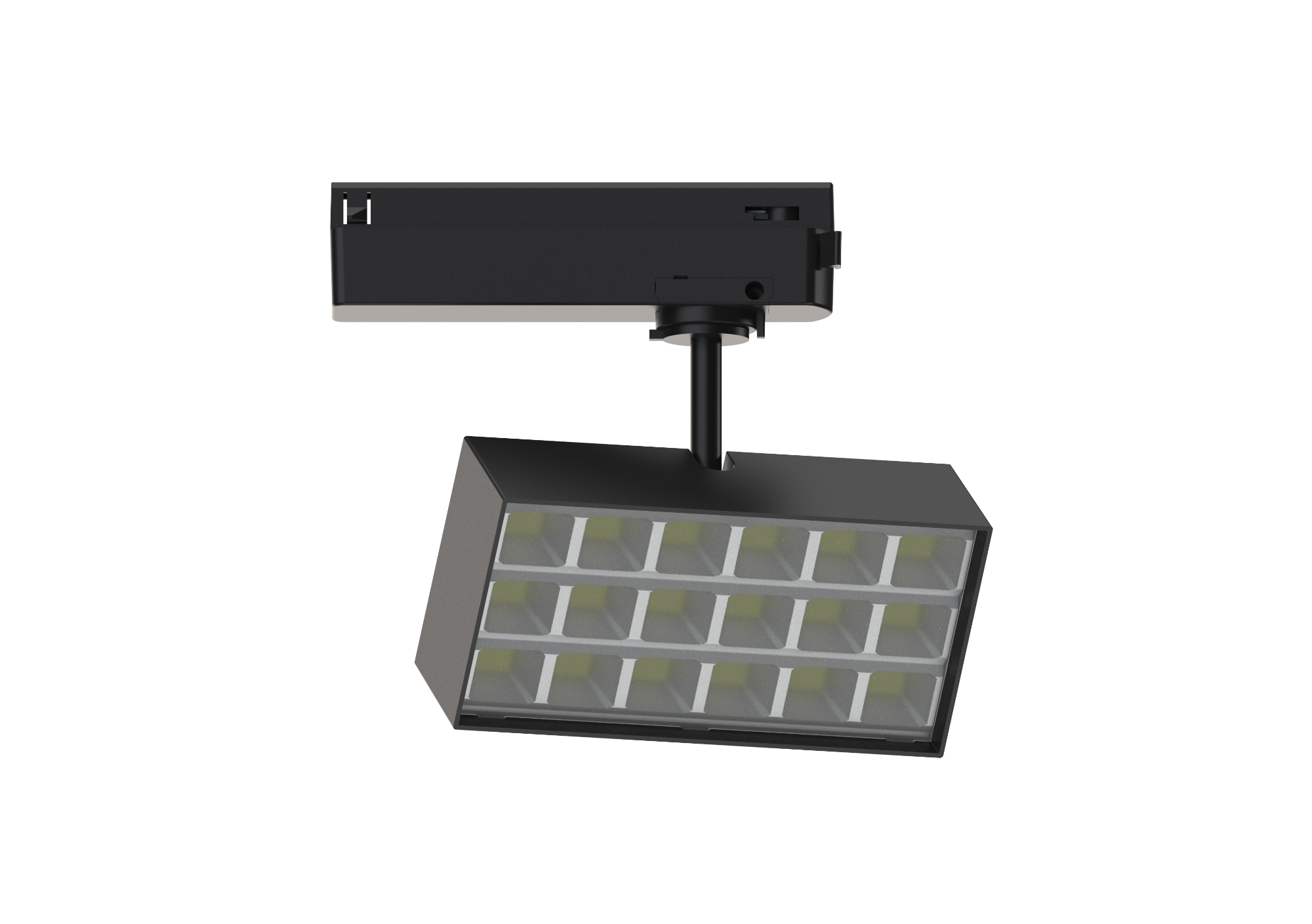

The H-LD073-2 Commercial Anti-Glare LED Track Light brings powerful, energy-efficient, and visually comfortable illumination to modern commercial spaces. Featuring an innovative louver reflector grille design, this 25W track floodlight effectively controls glare while delivering a bright, soft, and uniform 45° beam angle.
Equipped with an integrated 4-wire track adapter box, the driver is neatly concealed within the adapter housing for a clean, architectural finish. Made from high-grade die-cast aluminum in sand white and sand black finishes, the H-LD073-2 ensures optimal heat dissipation, long operating life, and sleek aesthetics.
Key Features & Technical Advantages
-
Ultra-High Luminous Efficacy (150 lm/W) Engineered with premium LED chips to achieve an impressive 150 lm/W luminous efficiency, ensuring high lux levels with lower energy consumption.
-
Advanced Anti-Glare Grille Design The multi-cell optical louver grid minimizes visual harshness and glare, making it comfortable for human eyes in offices, retail spaces, and galleries.
-
True-to-Life Color Accuracy (CRI ≥ 90) High CRI (≥90) restores natural hues of displayed items, apparel, artwork, and interior finishes.
-
Full Multi-Angle Adjustability (355° Horizontal / 90° Vertical) Features 355° horizontal rotation and 90° vertical tilting, allowing effortless repositioning of light beams where needed.
-

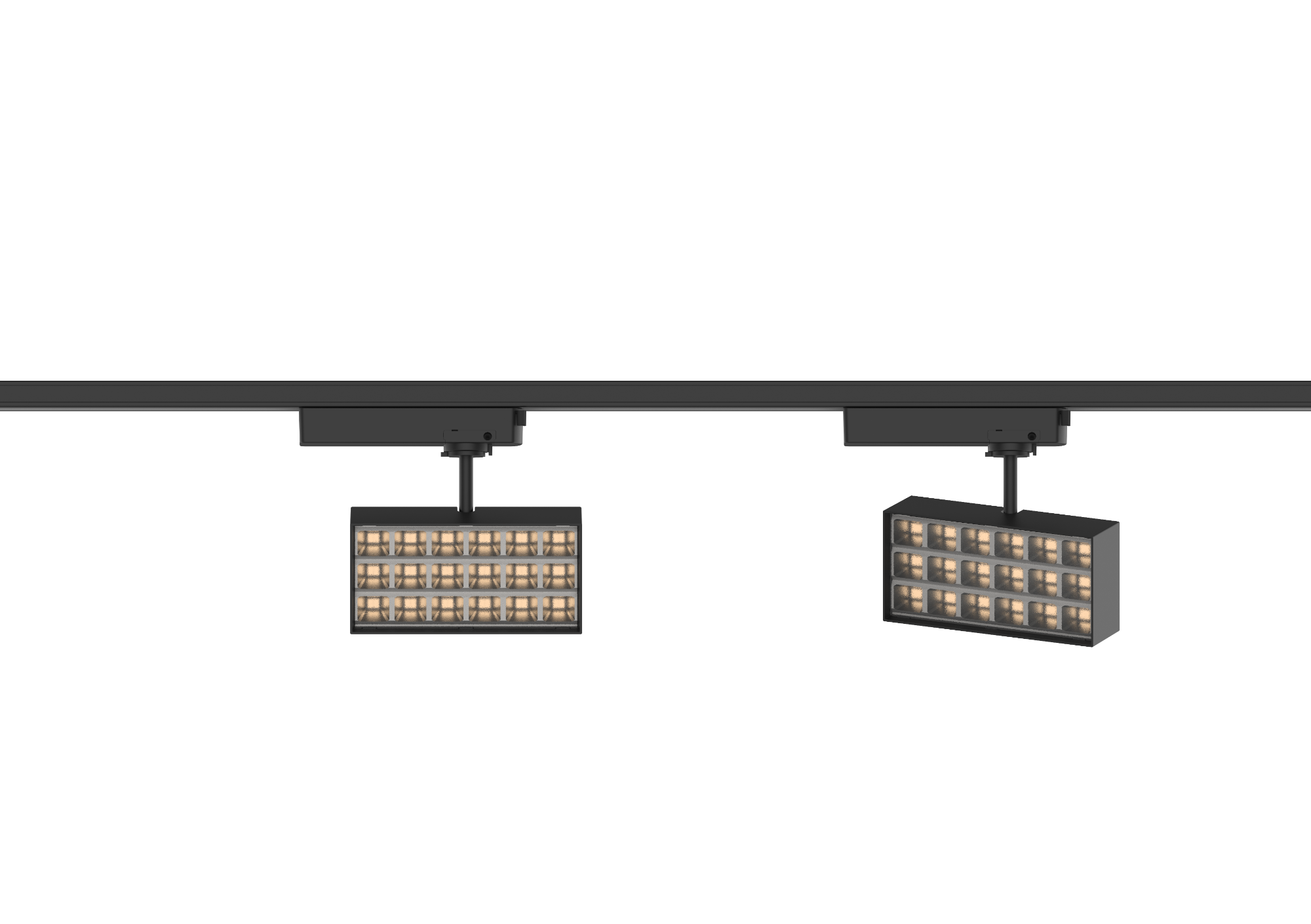

Integrated Driver Track Box Architecture Sleek 4-wire track adapter with built-in driver gear for seamless integration with standard commercial track rail systems.
Product Specifications
-
Model: H-LD073-2
-
Power Output: 25W
-
Luminous Efficacy: 150 lm/W
-
Color Rendering Index (CRI): ≥ 90
-
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool White)
-
Beam Angle: 45°
-
Housing Material: Premium Die-Cast Aluminum (铝)
-
Color Options: Sand White (砂白), Sand Black (砂黑)
-
Rotation Range: Horizontal 355° / Vertical 90°
-
Track Adapter: Integrated 4-Wires Track Box Adapter
-
Protection Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC
Dimensions & Mechanical Data
-
Fixture Head Dimensions: 154.5mm x 75.5mm x 39mm
-
Overall Height with Track Arm: 149mm
-
Track Box Adapter Length: 158mm
Frequently Asked Questions (FAQ)
Q1: What is the main advantage of the grille design in the H-LD073-2? A: The louvered grille structure acts as an optical shield that prevents direct eye contact with the light source, offering high anti-glare performance (low UGR) and comfortable ambient flood lighting.
Q2: Where is the H-LD073-2 track flood light best used? A: It is ideal for commercial offices, supermarket aisles, retail clothing stores, museums, and conference rooms where soft, uniform light without harsh glare is required.
Q3: Can this fixture be adjusted after installation on the track? A: Yes, it supports 355° horizontal rotation and 90° vertical tilt for total installation and aiming flexibility.
