Product Overview

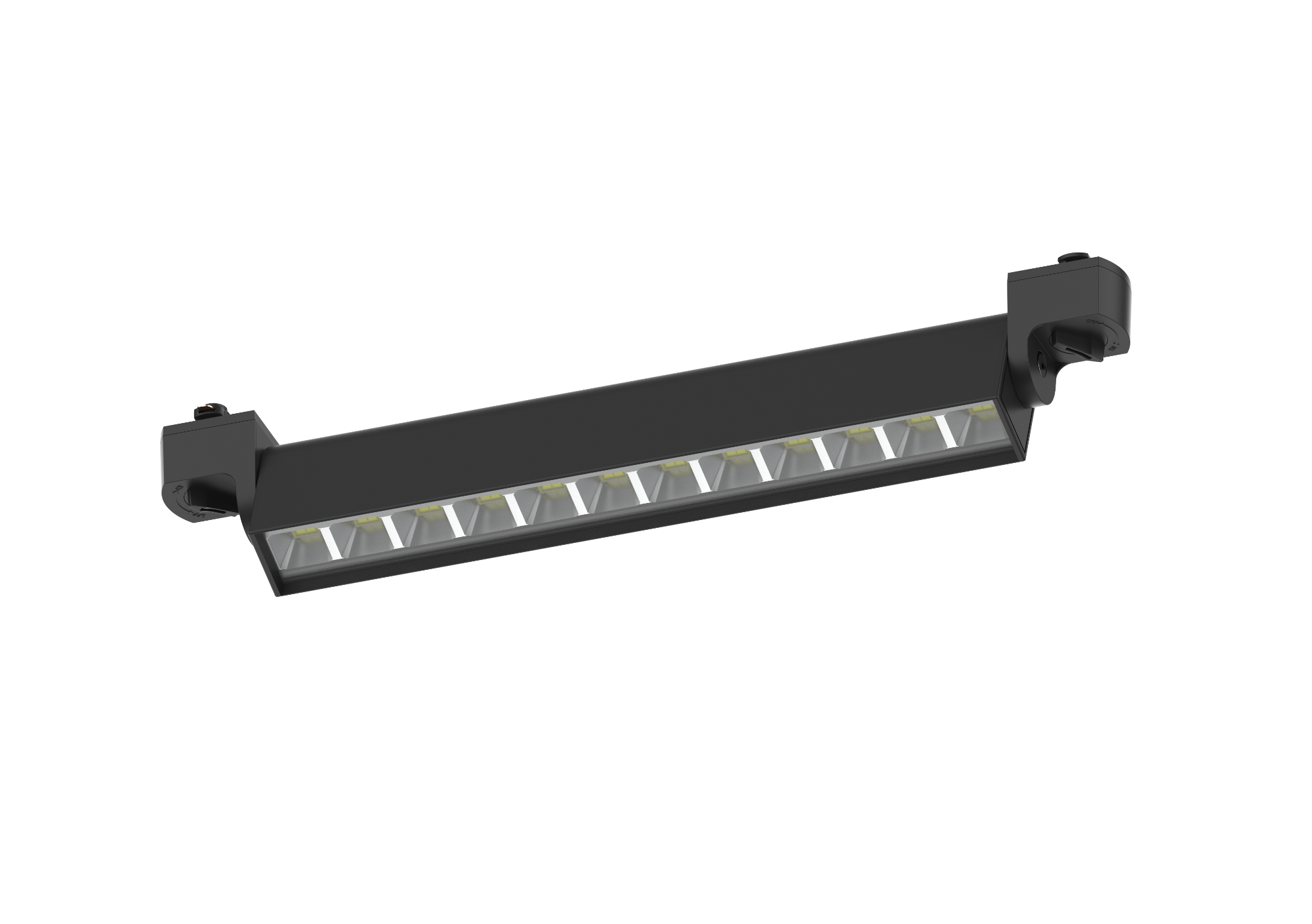

The H-LD076 Commercial Adjustable Anti-Glare Linear Track Light Series delivers powerful, efficient, and visual-comfort-focused accent lighting for modern architectural environments. Featuring a multi-cell reflector louver grille, this fixture shields direct glare while casting a clean, uniform 45° directional light beam.
Engineered with dual end-mounting pivot brackets, the H-LD076 supports up to 90° vertical tilt adjustments, allowing seamless switching between straight-down accent lighting and angled wall-washing illumination. Constructed from high-grade extruded aluminum in sand white and sand black finishes, it ensures excellent thermal management and long-term durability.
Key Features & Technical Advantages
-
High Efficacy & Energy Saving (150 lm/W) Equipped with high-lumen LED arrays delivering up to 150 lm/W, providing brilliant illumination with low power consumption.
-
Anti-Glare Louver Grille Design (45° Beam Angle) The multi-cell dark-light reflector grid effectively controls glare and light spill, creating a visual environment suitable for high-end retail and office spaces.
-
True-to-Life Color Accuracy (CRI ≥ 90) High Color Rendering Index (CRI ≥90) accurately restores the natural texture and colors of merchandise, clothing displays, and artwork.
-
90° Vertical Tilt Adjustability Features precision side rotation dials supporting up to 90° vertical adjustment, making it easy to direct light onto wall displays, shelving, or specific task areas.
-
Streamlined Linear Track Architecture The slim profile integrates smoothly with standard commercial track systems, maintaining a clean, minimalist aesthetic across long track runs.
Product Specifications
-
Model Series: H-LD076 (H-LD076-06 / H-LD076-09 / H-LD076-12)
-
Power Options: 25W (06) / 35W (09) / 45W (12)
-
Luminous Efficacy: 150 lm/W
-
Color Rendering Index (CRI): ≥ 90
-
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5000K (Cool White)
-
Beam Angle: 45° Precision Grille
-
Housing Material: High-Grade Aluminum (铝)
-
Finish Options: Sand White (砂白), Sand Black (砂黑)
-
Tilt Adjustability: 90° Vertically Adjustable
-
IP Rating: IP20 (Indoor Use)
-
Certifications: CE, RoHS, CCC
Dimensions & Models Quick Selection
-

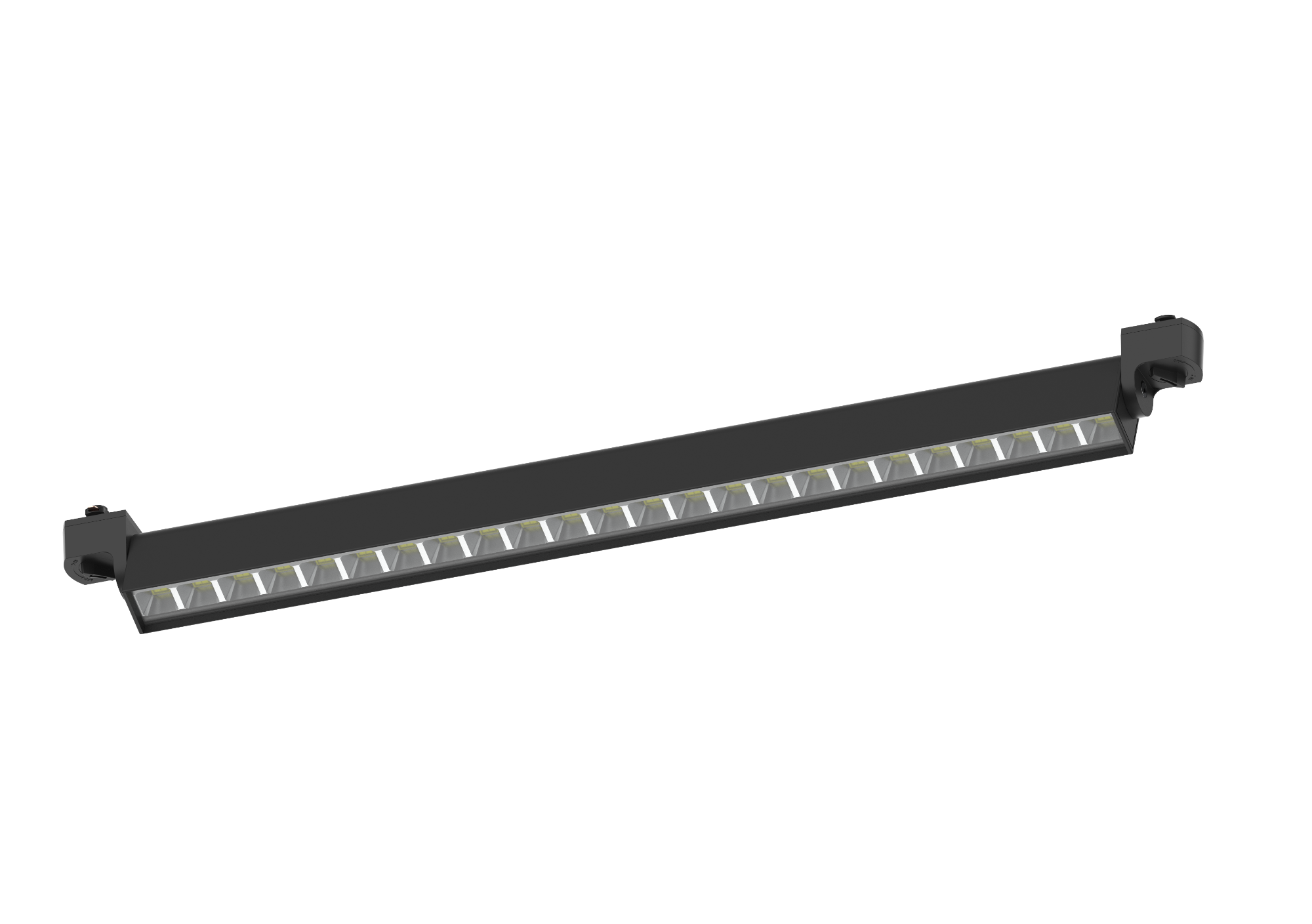

H-LD076-06 (25W): Body Length: 591mm | Total Width with Connectors: 681mm | Profile: 80mm x 33mm
-

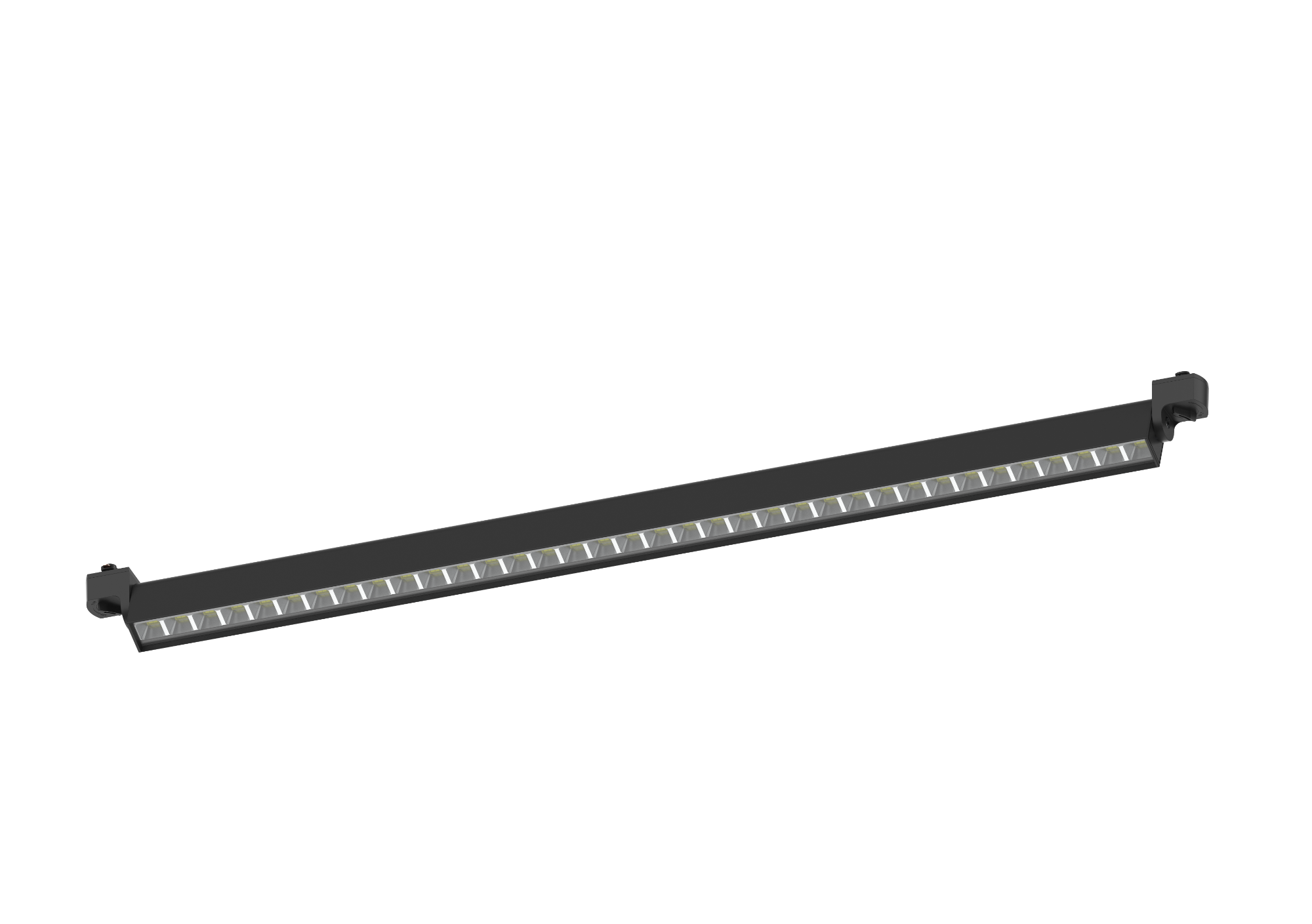

H-LD076-09 (35W): Body Length: 886mm | Total Width with Connectors: 978mm | Profile: 80mm x 33mm
-
H-LD076-12 (45W): Body Length: 1181mm | Total Width with Connectors: 1271mm | Profile: 80mm x 33mm
Frequently Asked Questions (FAQ)
Q1: What is the main benefit of the H-LD076 grille design compared to standard frosted linear lights? A: The H-LD076 uses individual louver cells with a 45° beam angle, providing higher lux levels on targeted areas with significantly lower glare (UGR), whereas frosted linear lights create broader, softer flood diffusion.
Q2: Where is the H-LD076 anti-glare linear track light best applied? A: It is ideal for commercial offices, meeting rooms, luxury fashion stores, museums, and supermarket aisles where directional accent lighting without visual harshness is needed.
Q3: Can this light be tilted after installation on the track? A: Yes, it features dual rotating end-brackets that allow up to 90° vertical tilting, enabling precise light aiming onto walls or displays.
