Cutout-Free Direct Ceiling Mounting Mounts directly onto solid ceiling surfaces (such as concrete slabs or timber ceilings)
Deep Cut-Off Anti-Glare Optics Features recessed black reflector cups that absorb spill light and hide direct LED glare
Modular Power & Size Configurations
H-LE002C-5 (5-Light Module): 10W | Dimensions: 148 x 36 x 62mm
H-LE002C-10 (10-Light Module): 20W | Dimensions: 284 x 36 x 62mm
Precision Optical Distribution (15° / 24° / 36°)
15° Narrow Beam: High-intensity spot beam for task lighting over kitchen islands and counters
24° Medium Beam: Balanced lighting for dining tables, artwork, and corridors
36° Wide Flood: Broad, uniform coverage for general area linear downlighting
High Color Accuracy (CRI ≥ 90) With a high Color Rendering Index of ≥90

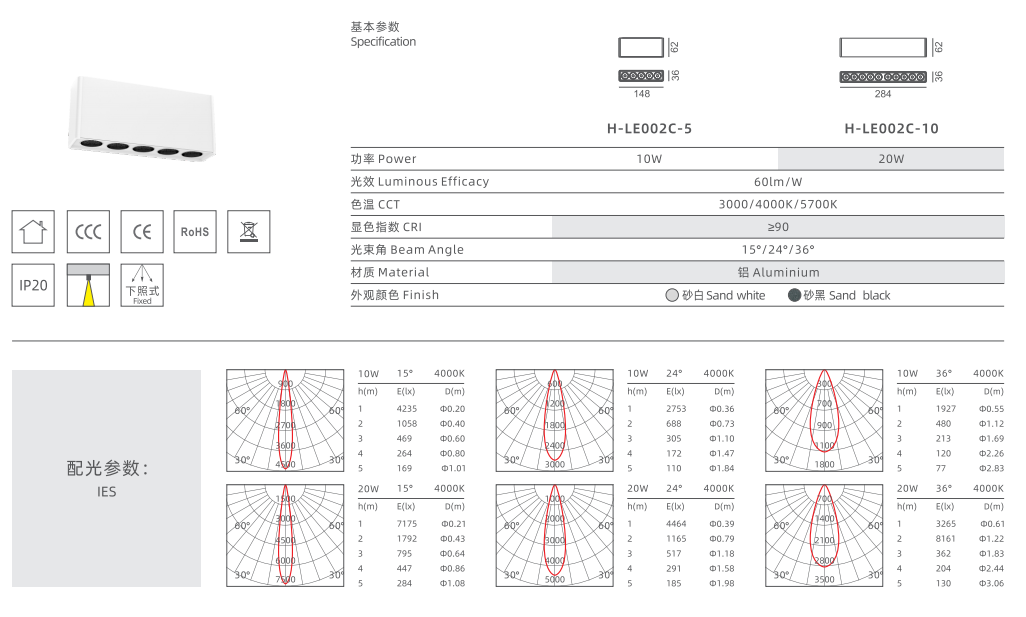

Model Series: H-LE002C Surface Mounted Series (H-LE002C-5 / H-LE002C-10)
Power & Module Configurations:
H-LE002C-5: 10W (5 LEDs)
H-LE002C-10: 20W (10 LEDs)
Luminous Efficacy: 60 lm/W
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White) / 5700K (Cool White)
Color Rendering Index (CRI): ≥ 90
Optical Beam Angles: 15° / 24° / 36°
Body Material: Aluminium
Available Finishes: Sand White (砂白) / Sand Black (砂黑)
Installation Type: Surface Mounted Ceiling
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
H-LE002C-5 (10W / 5-Light): Length 148mm | Width 36mm | Height 62mm
H-LE002C-10 (20W / 10-Light): Length 284mm | Width 36mm | Height 62mm
H-LE002: Recessed linear downlight requiring ceiling cutout slots.

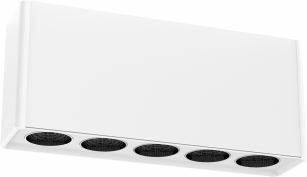

H-LE002C: Surface-mounted linear downlight that mounts directly onto hard ceilings without cutouts
