Product Overview

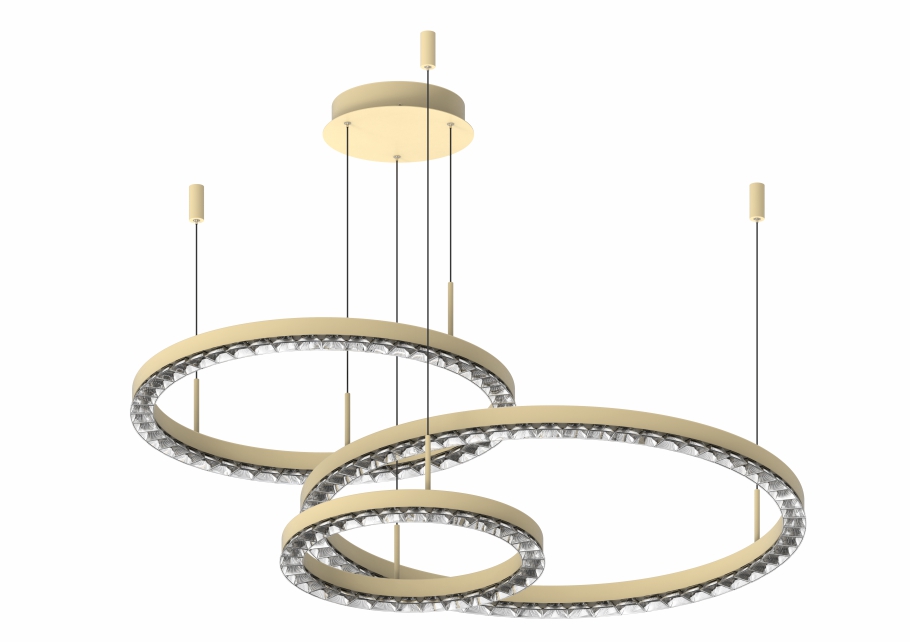

The H-LF017-3 Modern 3-Ring LED Chandelier brings striking geometric design and high-grade illumination to grand residential and commercial interiors. Composed of three staggered metallic rings measuring Φ840mm, Φ640mm, and Φ440mm, this 135W pendant fixture creates a dynamic visual statement in open-concept spaces.
Crafted from high-grade aluminum with flexible optical silica gel diffusers, the H-LF017-3 provides continuous, dot-free lighting across its 60° beam angle. Operating with high color accuracy (CRI ≥ 90), it enhances natural textures, metallic accents, and interior decor with rich, lifelike clarity.
Key Features & Technical Advantages
Three-Tier Staggered Ring Aesthetics Cascading ring arrangement (Φ840/Φ640/Φ440mm) creates a sculpted, multi-dimensional chandelier effect for tall ceilings and open stairwells.
Seamless Optical Silica Gel Diffuser Combines lightweight aluminium housing with high-transmittance silica gel to deliver soft, continuous illumination without harsh spots or eye glare.
True-to-Life Color Accuracy (CRI ≥ 90) With a high Color Rendering Index of ≥90, indoor materials, furniture fabrics, and architectural elements maintain their true natural colors.
Powerful Ambient Illumination (135W / 75 lm/W) High-wattage LED array produces substantial lumen output, making it an ideal primary light source for large foyers, double-height living areas, and hotel reception spaces.
Premium Finish Options (Brushed Gold, Sand Black & Sand White) Offers three architectural finish choices—Sand White, Sand Black, and Brushed Gold—to complement modern, industrial, or contemporary luxury aesthetics.
Product Specifications
Model Number: H-LF017-3
System Power: 135W
Luminous Efficacy: 75 lm/W
Material Composition: Aluminium + Silica Gel Diffuser
Color Rendering Index (CRI): ≥ 90
Color Temperature (CCT): 3000K (Warm White) / 4000K (Neutral White)
Beam Angle: 60°
Available Finishes: Sand White (砂白) / Sand Black (砂黑) / Brushed Gold (拉丝金)
Installation Type: Hanging / Suspension Pendant
Protection Rating: IP20 (Indoor Use)
Certifications: CE, RoHS, CCC
Dimensions & Mechanical Data
Overall Ring Span: 1118mm x 893mm
Individual Ring Diameters: Φ840mm + Φ640mm + Φ440mm
Canopy Diameter: Φ240mm
Adjustable Cable Length: 1200mm
Frequently Asked Questions (FAQ)
Q1: Can the rings on the H-LF017-3 be adjusted to different angles or heights? A: Yes, each ring is supported by adjustable 1200mm cables, allowing you to customize the tilt angle, spacing, and hanging height during installation to suit your ceiling layout.
Q2: What is the benefit of the silica gel diffuser over acrylic? A: The high-grade optical silica gel provides higher light uniformity, better flexibility for ring curves, and resists yellowing over time while maintaining smooth, dot-free output.

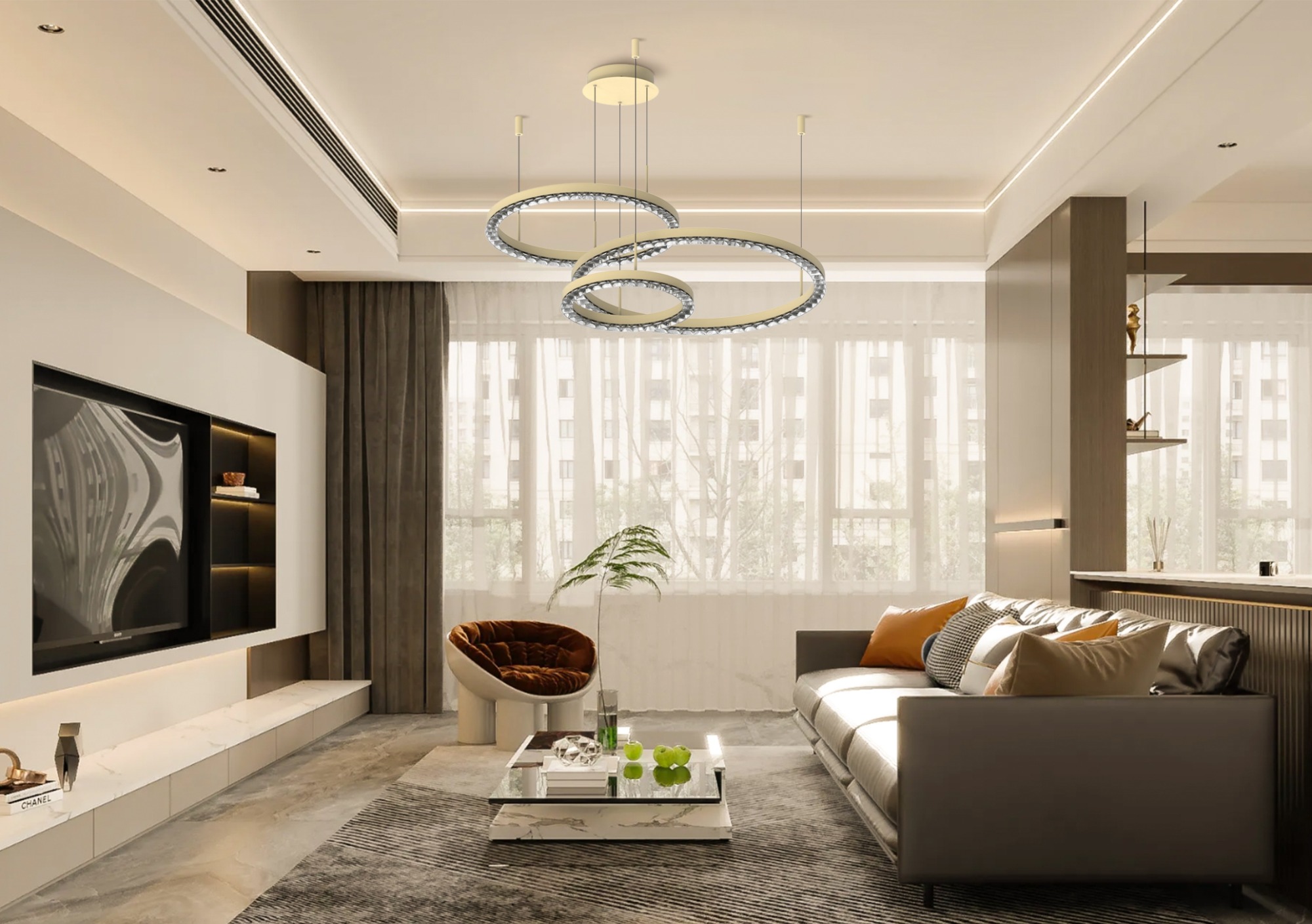

Q3: Where is the H-LF017-3 best installed? A: It is ideal for double-height living rooms, grand foyers, luxury dining tables, hotel lobbies, and executive reception lounges requiring a decorative 135W primary fixture.
