LED Spot Light 10 Degrees Beam Angle Recessed Spotlight Fitting for Precise Indoor Lighting and Display Use

Product Overview

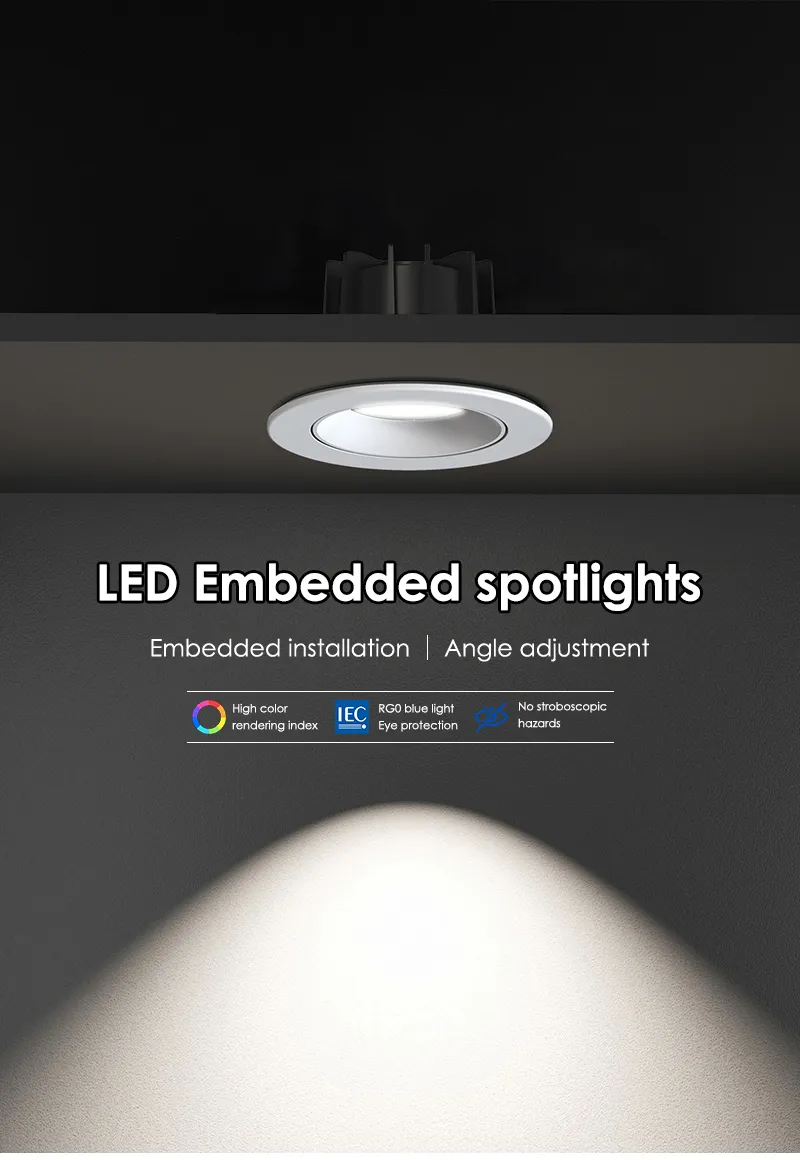

This is a round, recessed LED spotlight built for precise indoor lighting and display work: the fitting you specify when a product, a plinth or a piece of artwork needs its own pool of light rather than a general wash across the room. The head is adjustable and the trim sits flush with the ceiling, so the ceiling keeps its line while the beam is aimed exactly where it is needed. Warm, natural and cold light versions are available, and the light comes from a full-spectrum COB module with a high colour rendering index, so goods on a shelf stay recognisable under the beam.

As an LED spotlight supplier to lighting importers, contractors and design studios, we build this range ourselves and keep it in production as a repeat item. One body shape covers the whole power range and all three beam angles, which makes it straightforward to standardise a shop floor on a single fitting and to top the scheme up later from the same tooling.

As a round LED ceiling spotlight customized at the order stage, this fitting can be adapted in the ways a project usually needs — the beam angle that suits the displays, and the packing or label if the fittings are going out under your own brand. Send us the specification you are working to and we will confirm the scope before production starts.

Key Features

• Tight beam control — the narrowest option in the range concentrates light onto the object in front of it instead of washing the wall behind, so a display keeps its contrast against a quieter background.
• Aiming that survives commissioning — the head adjusts inside the recessed body, so each fitting can be set to the display during handover and re-aimed whenever the planogram or the artwork changes.

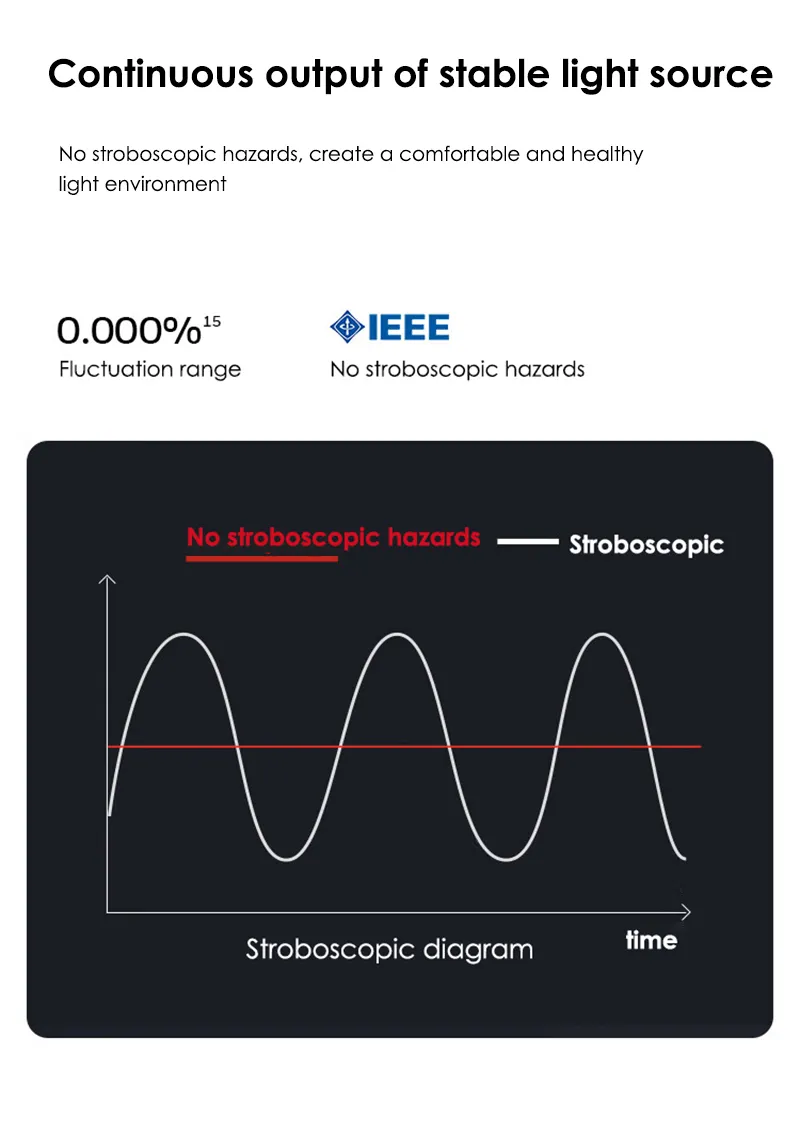

• Comfortable under long use — the COB module runs free of stroboscopic flicker and sits in the RG0 blue-light risk group, which matters in commercial, hospitality and workspace interiors where staff and visitors stay for hours.

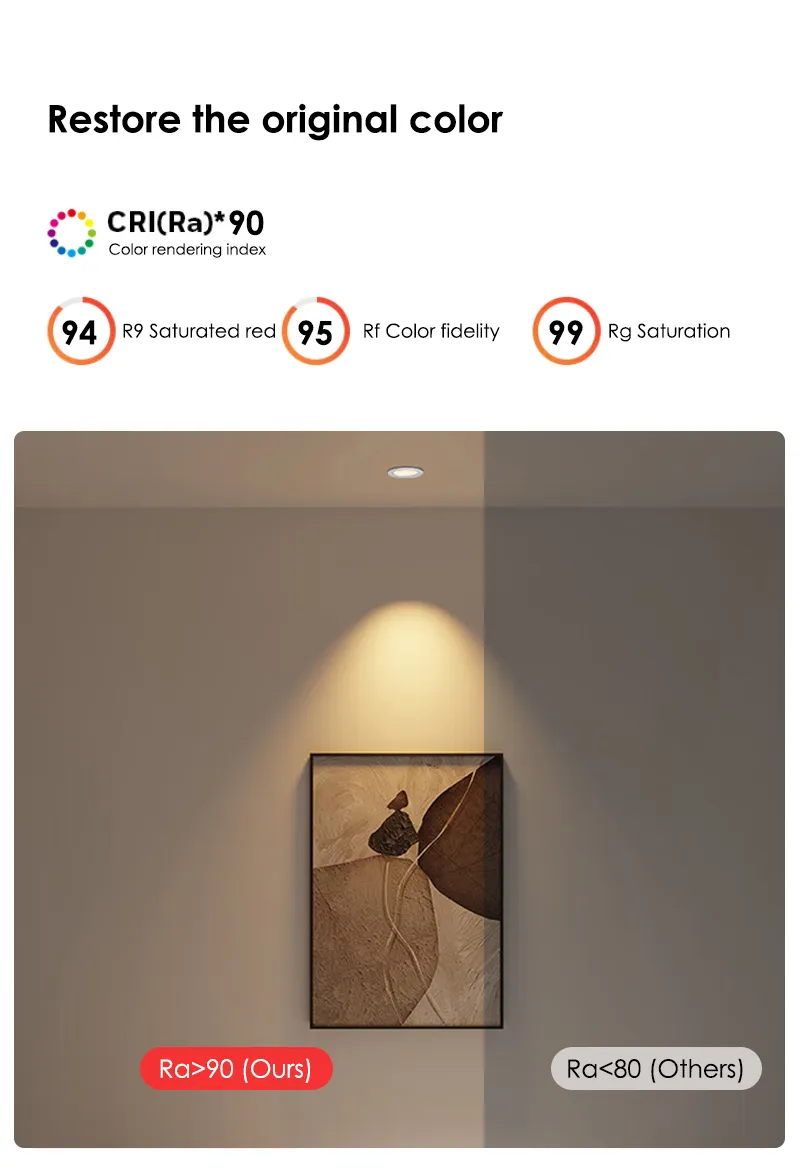

• Colour that holds up — a full-spectrum COB chip and a high colour rendering index keep merchandise colours and finishes readable under the beam instead of greying them out.
• A flush ceiling plane — the trim finishes level with the panel and the round body stays inside the ceiling void, so a scheme does not grow a row of protruding heads.
• One outline, several outputs — the same body covers the full power range and all three light colours, so mixed needs can be met without mixing fixture shapes.

Specifications

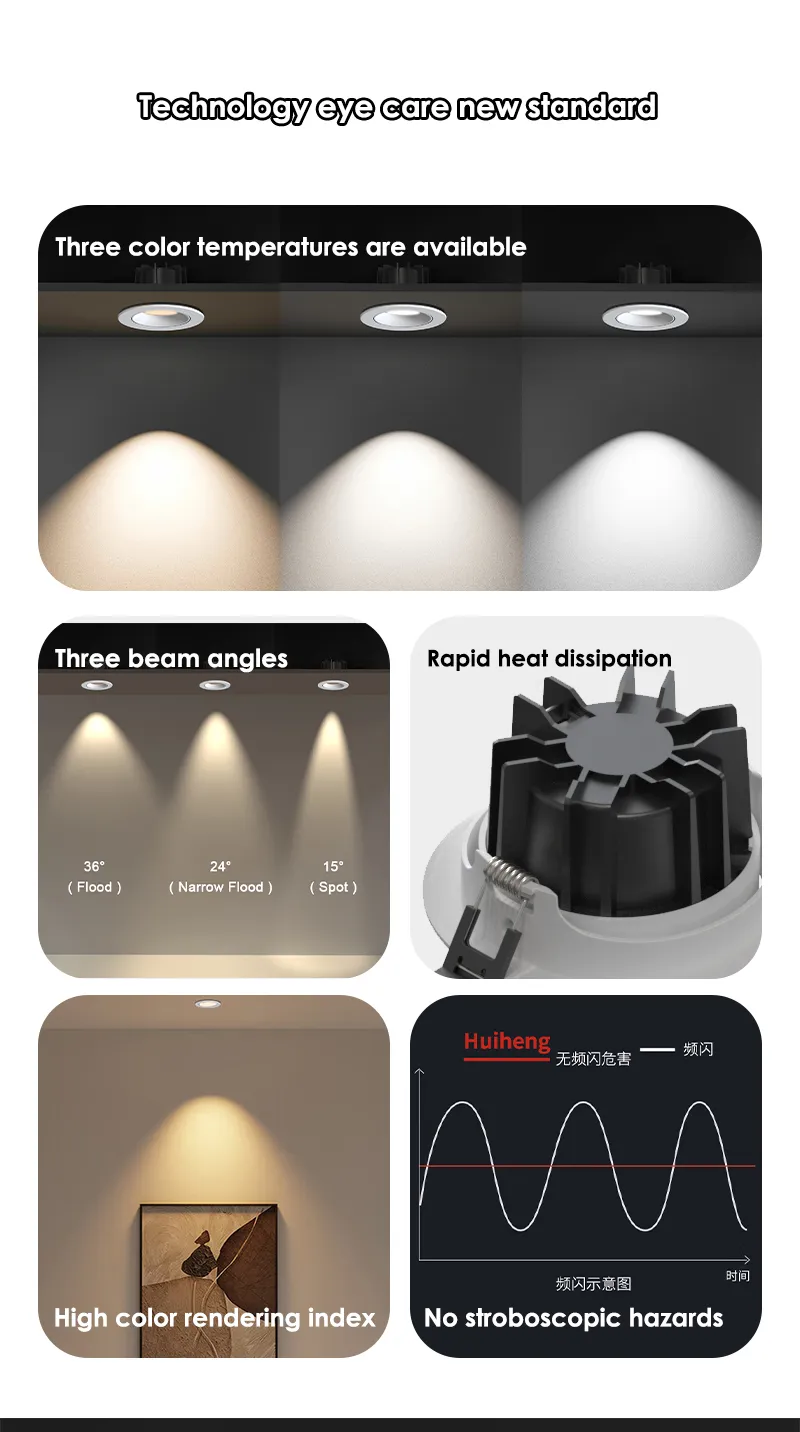

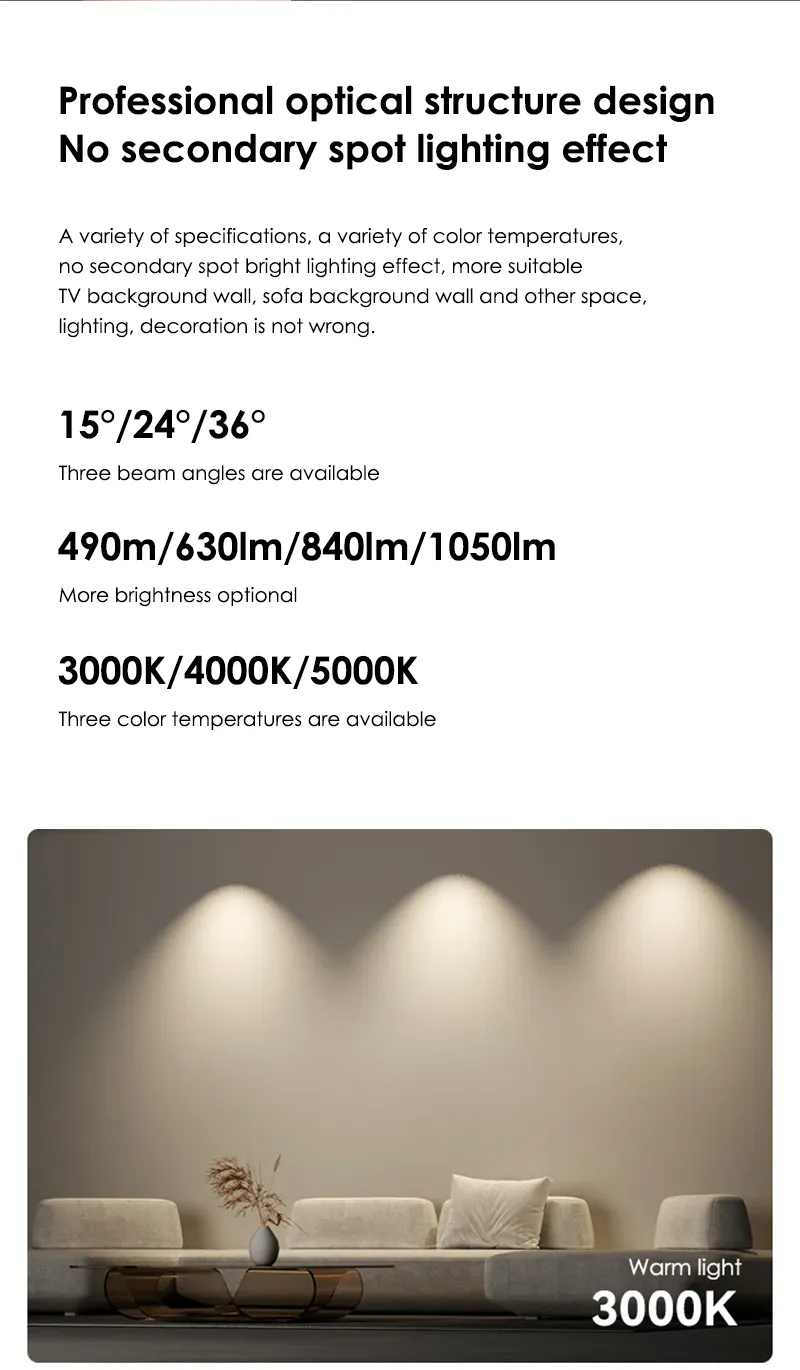

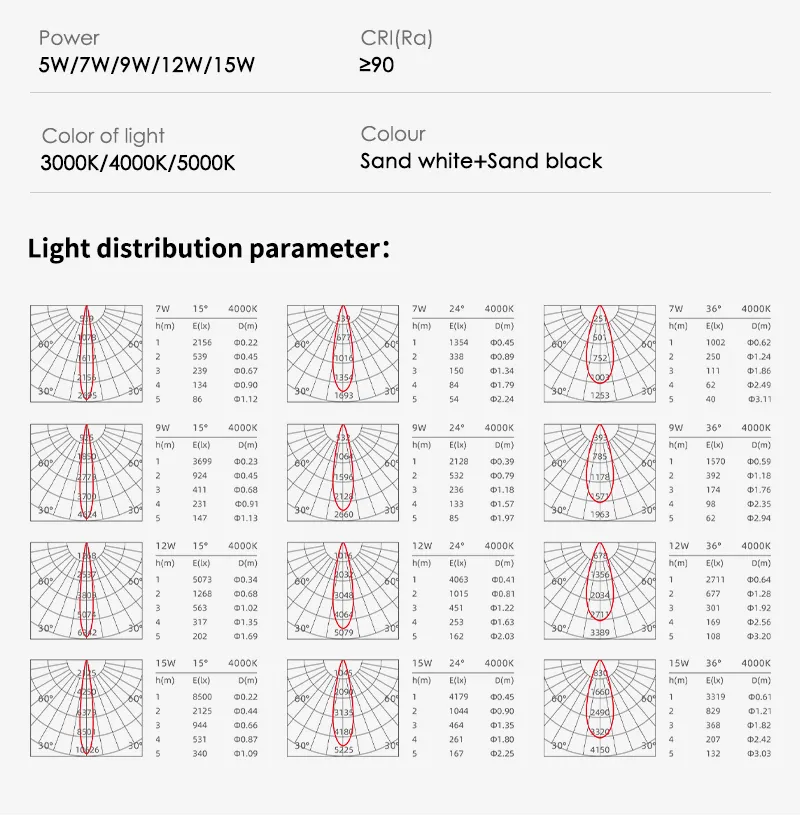

Beam Angle & Light Distribution

Beam angle is the first decision in LED spot lights ceiling planning — ahead of power and ahead of light colour — because it decides what the light actually lands on. A narrow beam on a small object throws a bright pool with a fast fall-off around it; the same lumens spread over a wider angle light more surface and flatten the contrast.

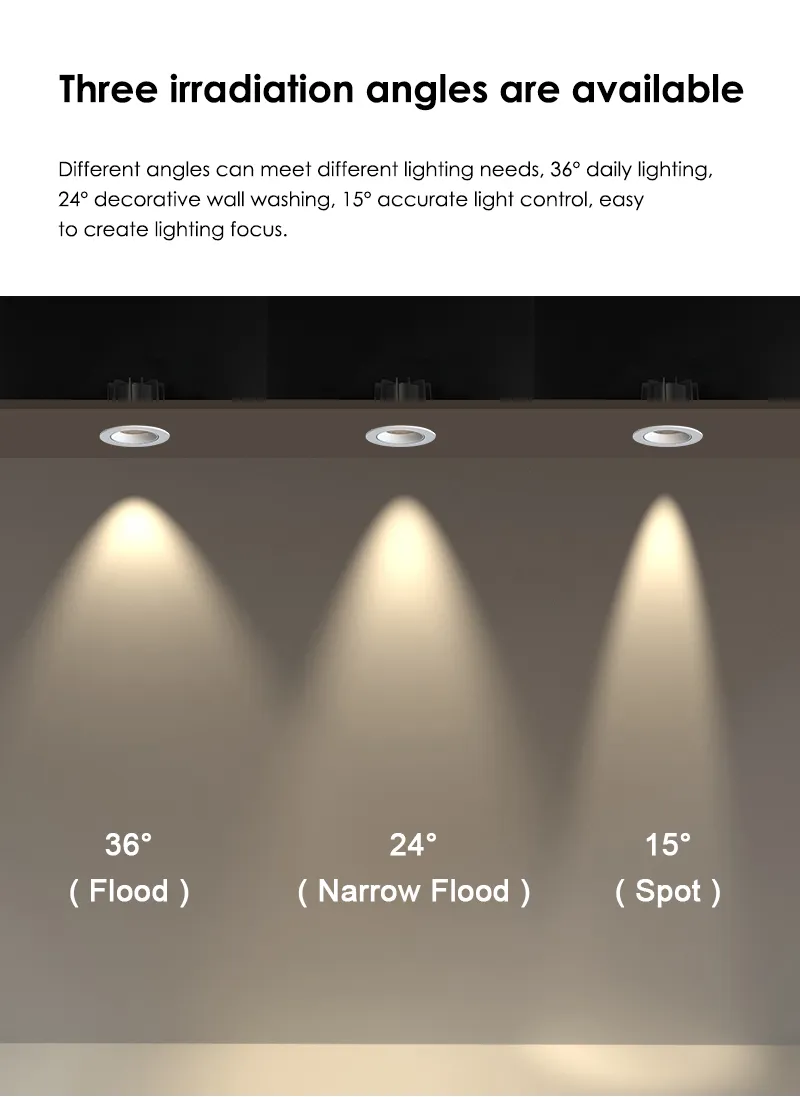

15° — The Spot Option

The tightest cone in the range. It is the angle for small, high-value items: jewellery, watches, a single product on a plinth, individual pieces in a display window. The sharp fall-off is the point — the object reads brighter than everything around it and the wall behind stays quiet.

24° — Narrow Flood

The working angle for most commercial interiors. Wide enough to cover a mid-size display or a section of shelving, tight enough to keep a defined edge on a wall. If a commercial floor has to be specified on one angle with no mixing, this is usually the one.

36° — Flood

Used for everyday lighting, larger objects and wall grazing, where a surface should be lit evenly rather than punched with a hot spot. It gives the softest contrast of the three and is the natural choice where the fitting also has to light part of a room.

Angles can be mixed within a single scheme, and that is often the better answer: a row of spot heads for the hero displays, a wider angle on the shelving either side. One practical caution — a tight LED spotlight aimed across glass or a glossy counter will show reflections, so check the aim with the merchandise in place. Tell us the object sizes and the mounting height and we will confirm which angles to start with.

Applications

• Commercial display and shop windows — the reason most buyers order this fitting: light on the product rather than on the wall behind it. Aim each head at a single item and let the surrounding surface stay dim.
• Merchandise re-sets — LED recessed spotlights that can be re-aimed let the lighting change with the display, so a seasonal re-set does not need new fittings or a new ceiling layout.

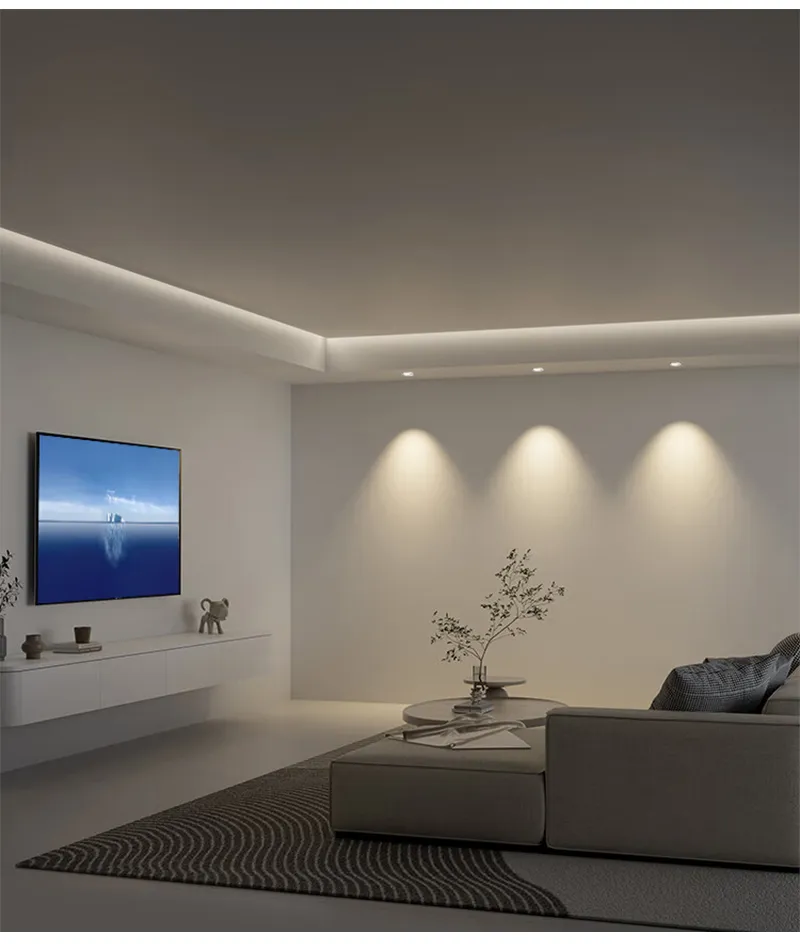

• Showroom and gallery walls — graze a textured wall or a hung piece with a row of heads set at a shallow angle, and let the fall-off between fittings become part of the look.
• Hospitality interiors — bar counters, restaurant tables and reception desks, where a warm version gives a pool of light without lighting the whole room.
• Hotel corridors and lobbies — accents on signage, artwork and room numbers, kept tight so the corridor stays calm and the light does not spill into doorways.

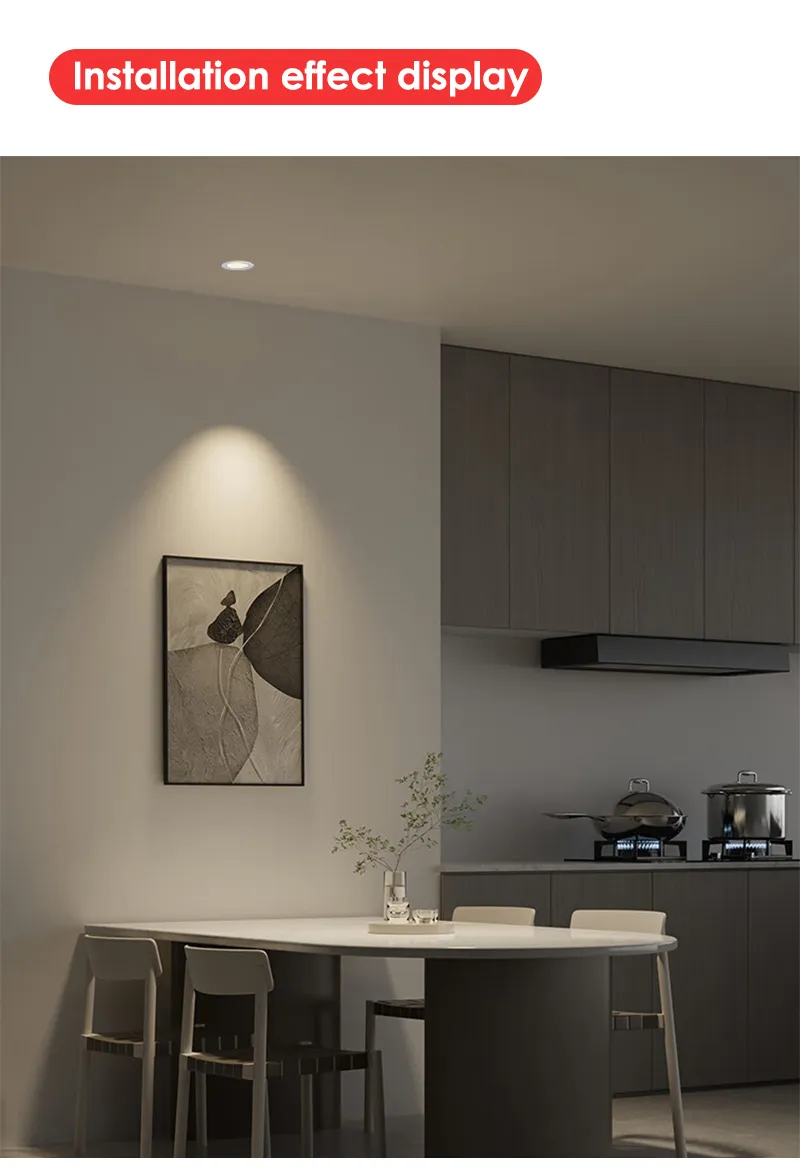

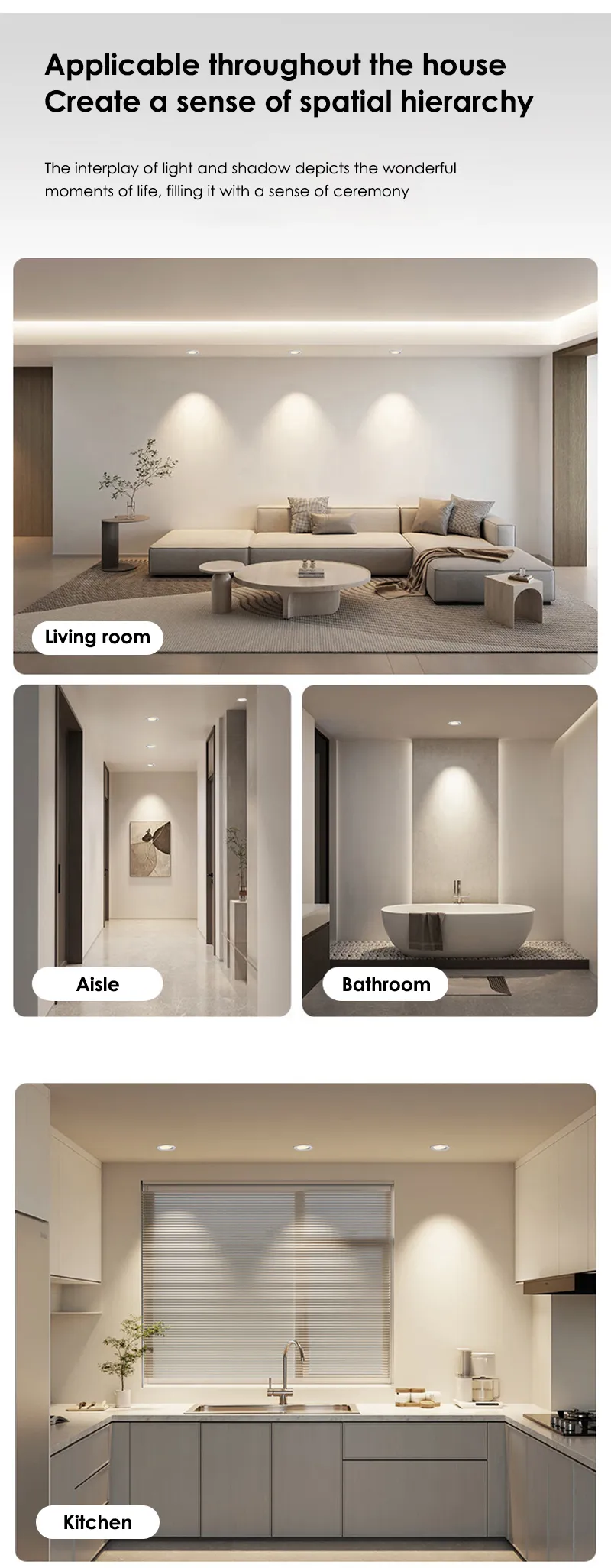

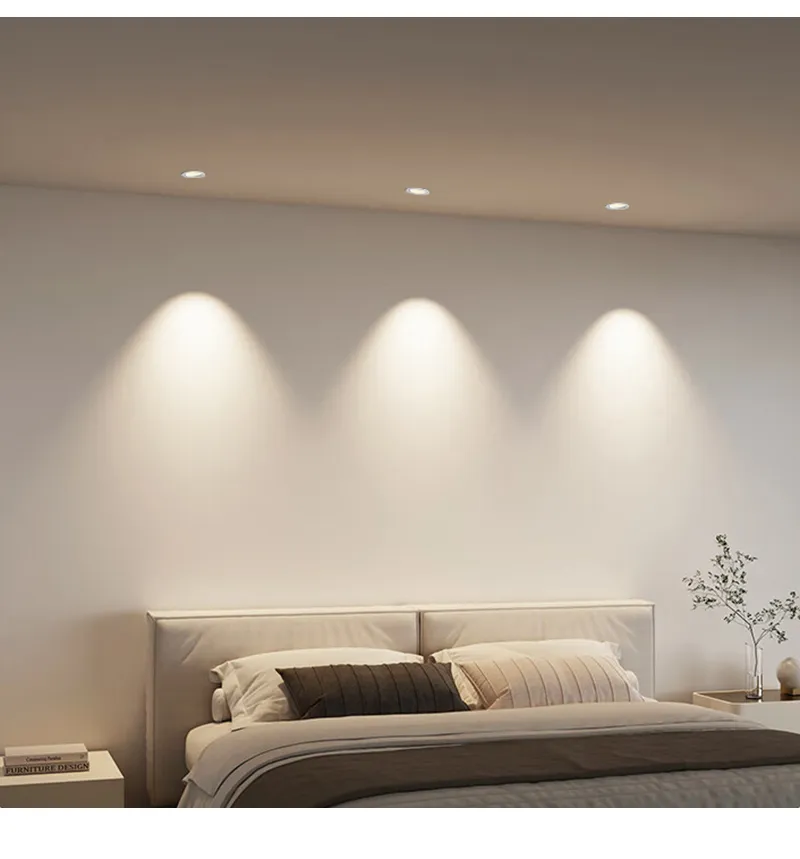

• Residential interiors — living room and bedroom wall washing, and kitchen or dining accents, where the same fitting is being used for atmosphere rather than for merchandising.
• Aimed highlights in offices — a reception wall, a brand mark or a counter, where general lighting is handled by other fittings and this one adds a point of focus.

Installation & Commissioning

1. Set the positions out from the display plan rather than on a uniform grid — LED spot lights ceiling layouts read better as a few deliberate accents than as evenly spaced holes.
2. Cut the openings to the size confirmed for the model you have ordered, and check there is enough room behind the panel for the body and for the spring clips to fold back.
3. Test the circuit before the fittings are pushed home. If the fittings will be switched in groups, settle the grouping first so the ceiling is only opened once.
4. Push each fitting into its opening; the spring clips press it against the panel and the trim finishes level with the ceiling.
5. Aim each head at its object and walk the space at eye level — check for spill on glass, on neighbouring displays and on the wall above, then lock the angles in.
6. Group the LED recessed spotlights into circuits that follow the display areas, so window lighting, shelf lighting and feature lighting can be switched independently.
7. Hand over with a note of the settings — beam angle, light colour and aim positions — so a later top-up order can be matched without running the survey again.

Materials & Finish

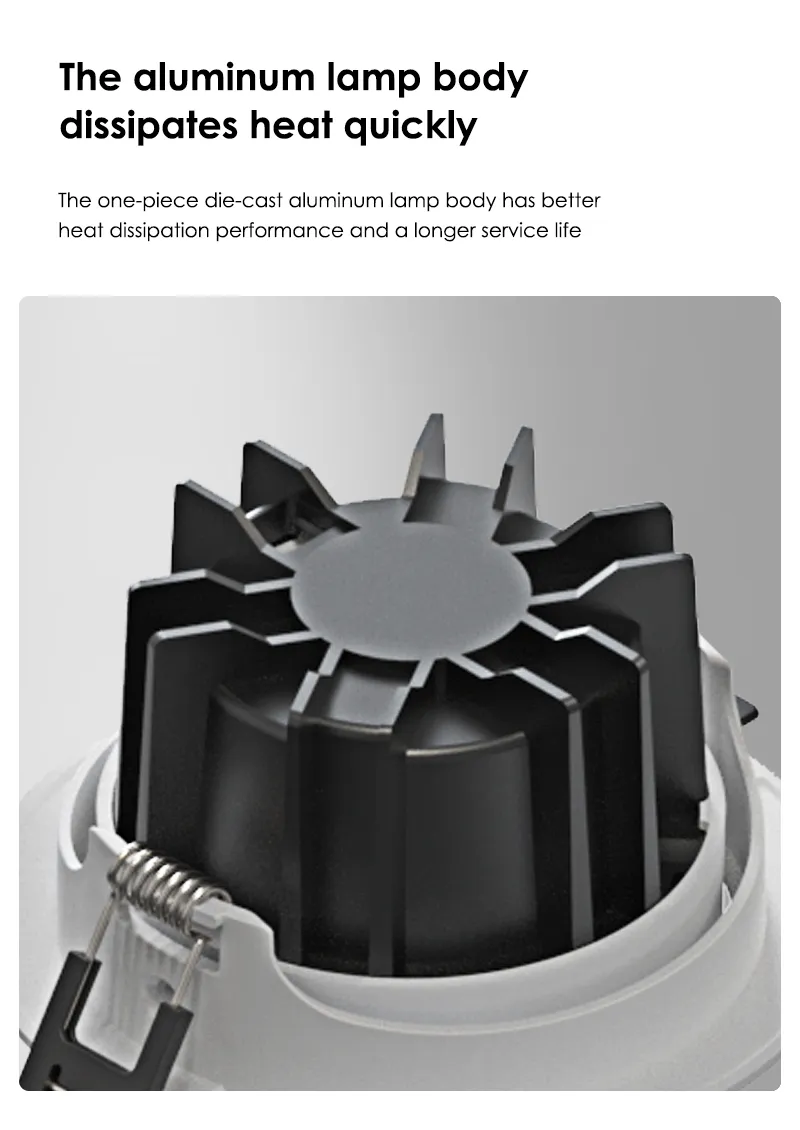

The body is die-cast aluminium with a finned rear housing that pulls heat away from the COB module. That is what lets an LED spotlight this compact hold a consistent output through a long trading day instead of dimming as it warms up.

Trim and body are finished in sand white and sand black respectively, and both surfaces are matte. That matters more than it sounds in a display: a gloss trim throws a bright reflection back into the room and competes with the merchandise, while a matte one stays visually quiet.

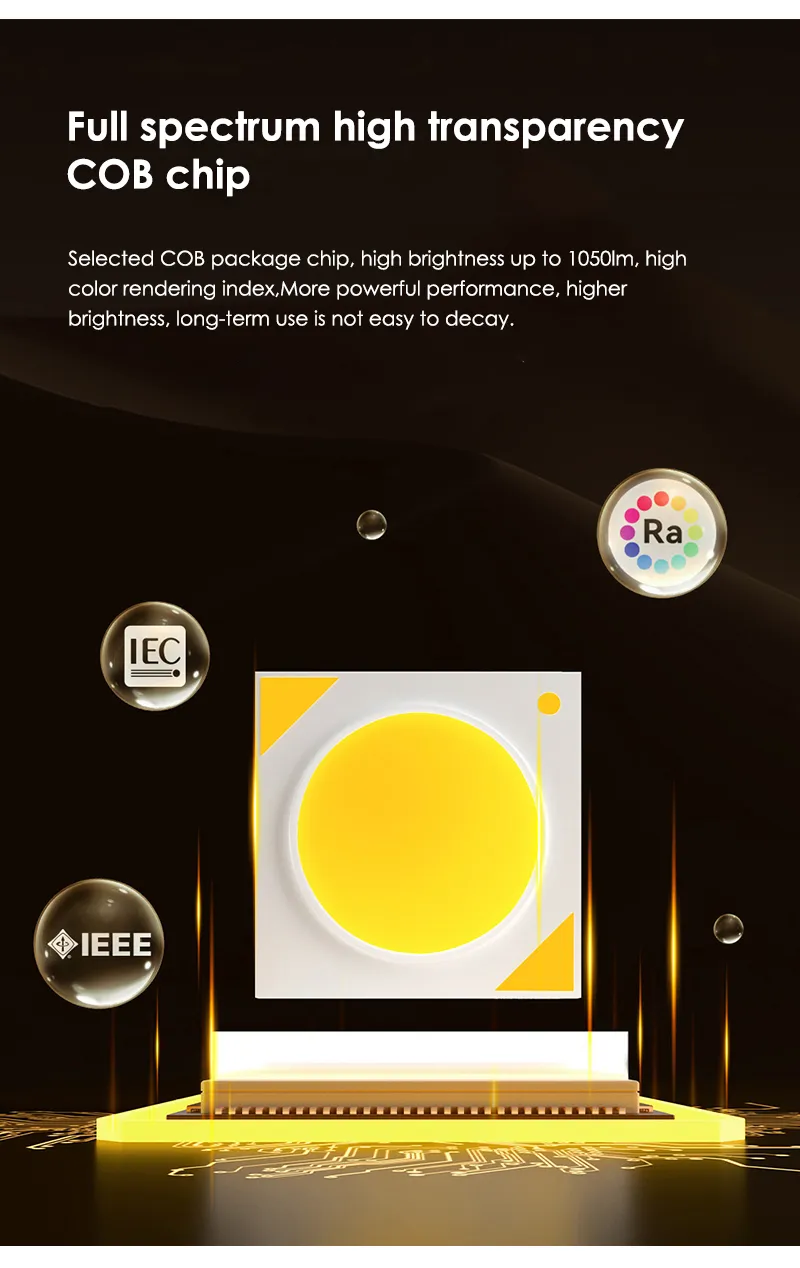

Inside, the light comes from a full-spectrum COB chip with a square package and a circular emitting surface, matched to the beam angle you order. Lens and sealing details vary with the configuration, so if your specification sheet lists an aluminium grade, a lens material or a sealing component, ask your sales contact for the component data on the version you are ordering.

In use, keep the trim clean with a soft dry cloth. The sand finish does not need polish, and abrasive or solvent cleaners will mark it. When handling loose fittings, avoid touching the COB emitting surface with bare fingers.

Ordering & Delivery

• What to send with an enquiry — the quantity you need for each beam angle, light colour and finish, and the destination market if you are working to a local requirement. The list on this product covers the standard options; anything outside it is confirmed with your sales contact.
• Minimum order quantity — set per model and finish rather than as one figure across the range, so ask your sales contact for the quantity that applies to this fitting before you plan the order.
• Customisation — if you need the round LED ceiling spotlight customized, discuss the beam angle the display calls for and your own packing or label at the enquiry stage; the scope you agree is what goes into production.
• Lead time — production is scheduled per order. Confirm the standard lead time when you order, and raise peak-season delivery dates early if your project has a fixed opening date.
• Packing and loading — carton dimensions, units per carton and the gross weight of each carton are confirmed with your order so you can work out container loading and inland costs before you commit.
• Payment terms — confirmed on the order confirmation.
• Samples — ask your sales contact about sample availability and how samples are arranged for the options you are considering.
• After-sales and continuity — the service scope and period that apply are confirmed with your order, and because this range is made in-house, later phases and repeat orders can be matched to the same specification.
• Project supply — we supply this range as an LED spotlight supplier for staged projects, so a second phase can be quoted against the first without re-specifying the fitting.

Custom Beam Configurations

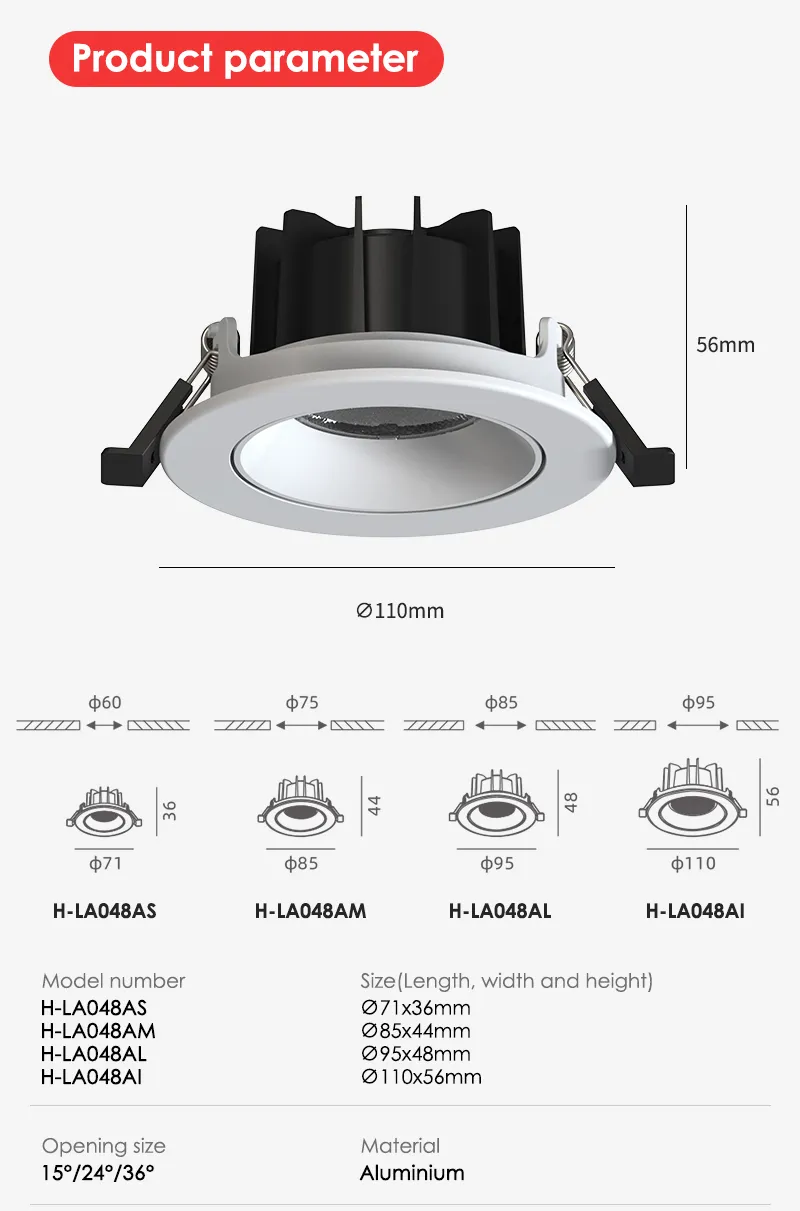

1. Start with the standard list: item H-LA048A is offered at 15°, 24° and 36°. The 10° in the product name describes the narrow display cone this fitting is aimed at, so where that is tighter than the 15° option, it is a project configuration to be confirmed rather than an item on the standard list.
2. Send the three inputs the choice depends on: the size of the object being lit, the distance from the ceiling down to that object, and how dark you want the surface around it to stay. Those three answers decide whether a cone tighter than 15° is right for the display or whether another angle in the range serves it better.
3. Include the void depth behind the panel and the panel thickness as well. A tighter cone has to be shaped by the optic inside the body, and the body itself spans Ø71 x 36 mm to Ø110 x 56 mm across the range, so the ceiling you have is part of the answer.
4. Put the request on the enquiry as a non-standard beam. If you need the round LED ceiling spotlight customized to a tighter cone, it is quoted, sampled and confirmed — with the beam angle, light colour and finish on it — before production, because the optic is built to the angle you agree and cannot be changed once the fittings are made.
5. Ask for the agreed angle, light colour and finish to appear on the order confirmation and on any sample you approve, so you have a written reference to check the bulk delivery against.
6. Keep that reference for later phases. The tighter cone is a configuration of the same body rather than a different fitting, so a repeat order can be built to match without changing the ceiling cut-out or the layout.
7. Where only a few positions need the tighter cone and the rest of the scheme suits 24° or 36°, send both in one enquiry so the mixed requirement is planned together with production instead of as two separate jobs.

Component & Finish Data

• Lamp body — one die-cast aluminium body carries the whole 5W to 15W range. If your specification names an aluminium grade, send the clause with your enquiry and we will confirm the grade of the casting for the version you are ordering, in writing, before production.
• Trim and body finish — the trim is finished sand white and the body sand black, both in the matte sand texture used across this range. That matte surface is the standard treatment, and it is what keeps the trim visually quiet next to a lit display.
• Other surface processes — if a project calls for a finish applied another way, such as anodising or a brushed metal look, raise it at the enquiry stage. Those are project finishes confirmed against quantity and schedule rather than stock options.
• Lens and optic — the optic fitted is the one that produces the beam angle on your order, and the lens material for the version you are considering can be listed together with the component data if your specification sheet asks for it.
• Sealing parts — LED recessed spotlights sit inside the ceiling void, so the sealing components that close the body are specified with the configuration. Ask for their material and dimensions where a tender document lists them.
• What we can issue — component details for the ordered version, the finish and light colour reference of the batch, and the packing data for the shipment are confirmed in writing before production, so the paperwork matches what is loaded.
• On arrival — check the trim colour and the light colour against the approved reference at goods-in and keep one fitting from the batch aside. It makes later phase orders and single replacements straightforward to match.

Testing & Compliance

Quality and compliance are handled in-house at Huiheng Lighting. Our factory has held ISO 9001 and ISO 14001 management system certification, alongside BSCI, and our products carry CE, RoHS, ErP, CB, Reach, SAA and TUV approvals for the markets we serve. A CNAS-standard laboratory supports IES file testing and integrating sphere testing, so photometric and performance data can be checked before shipment. Declarations, test reports and compliance documents can be issued per project, with the applicable market scope confirmed together with your team before ordering. Tell us your destination market and required documents, and we will confirm what applies.
