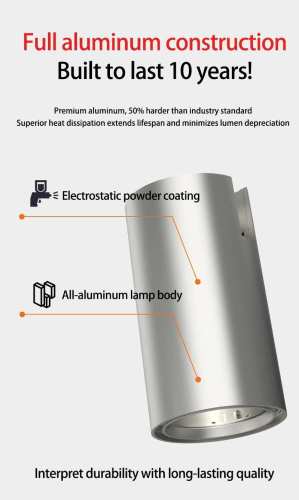

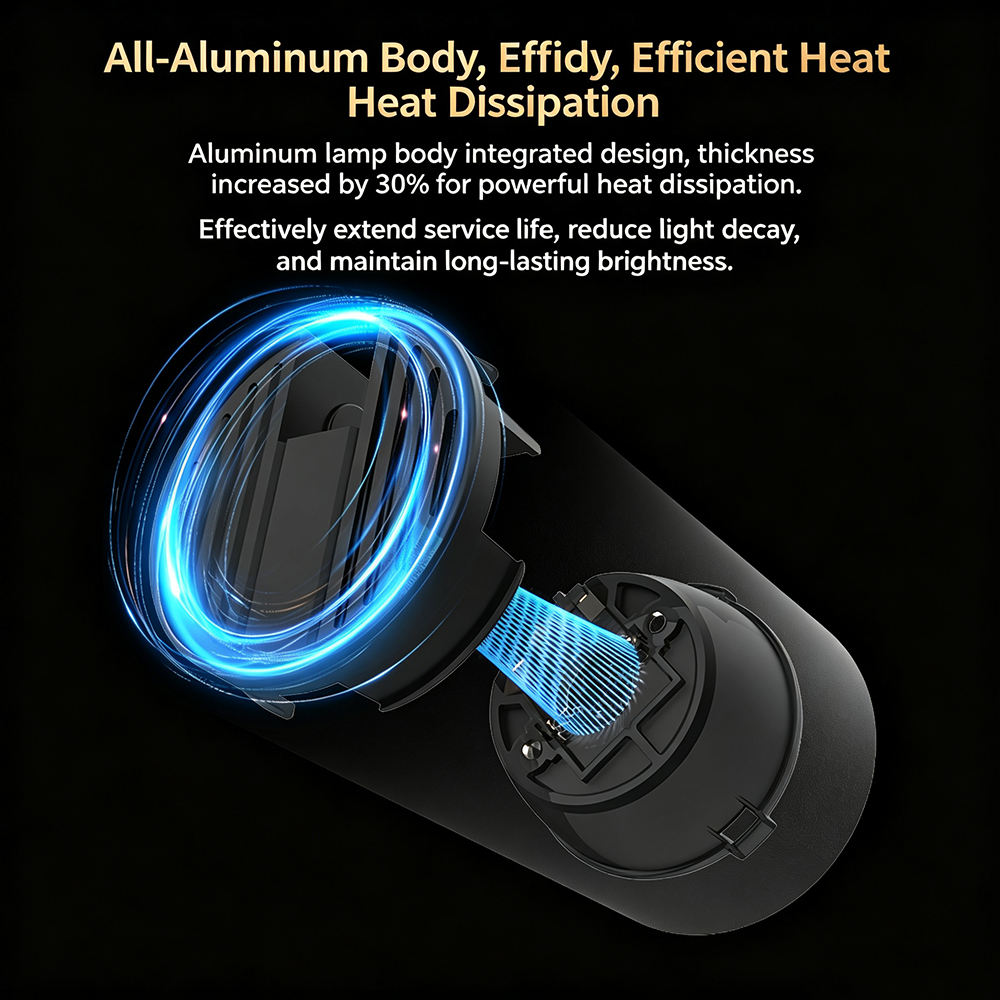

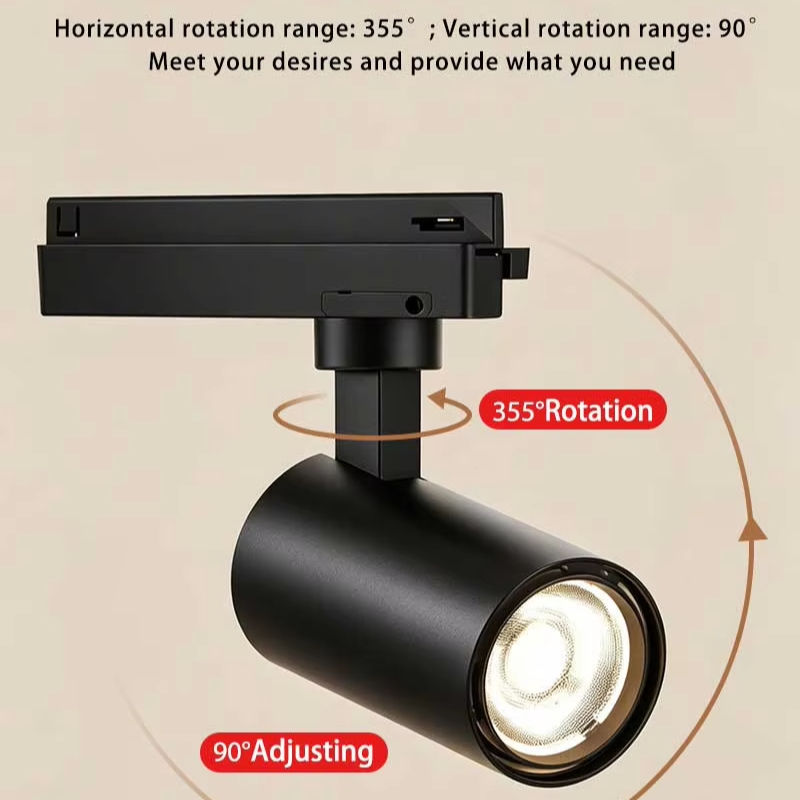

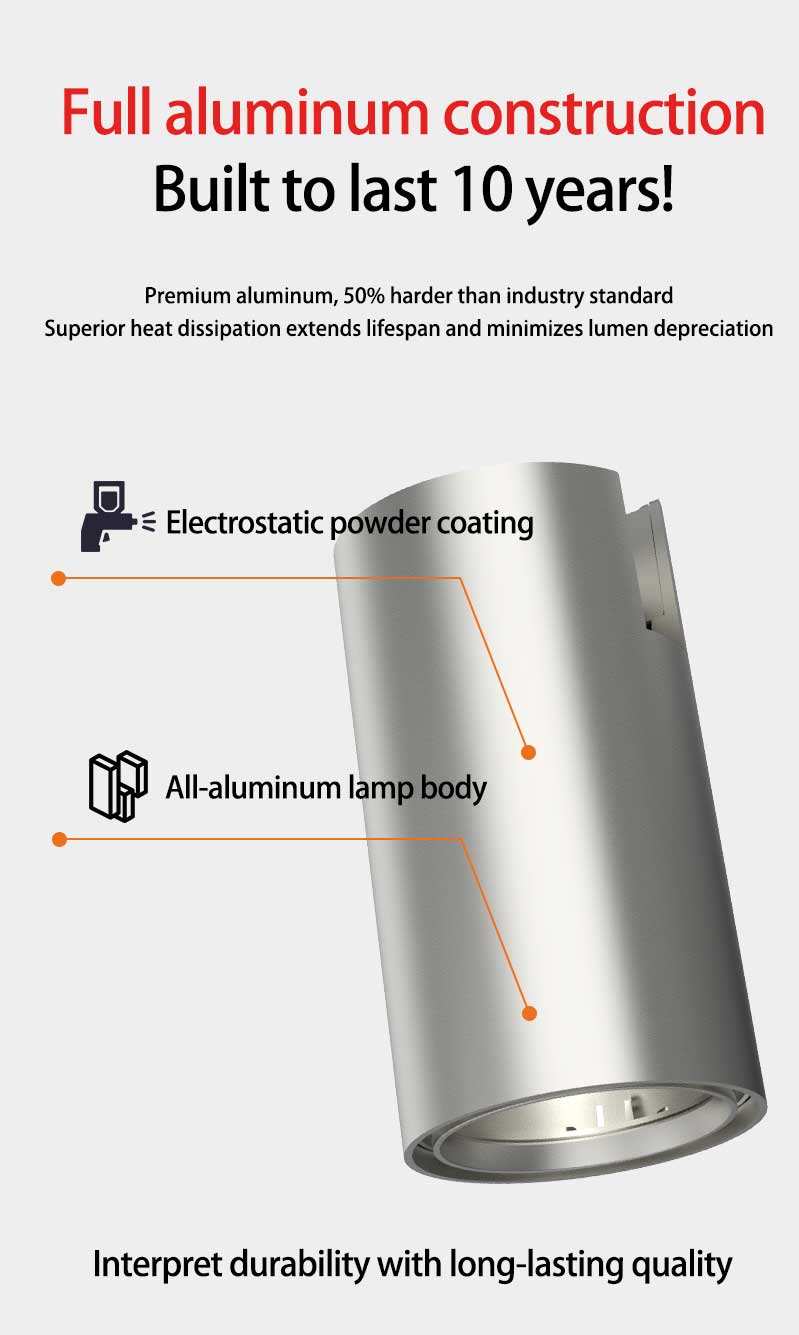

The H-LD059 Series LED Track Spotlight delivers precise directional lighting tailored for high-end commercial and architectural projects. Available in 3 sizes S/M/L with multi-power options, it supports 2/3/4 wires track adaptors to match different dimming & wiring requirements. With CRI≥90 high color rendering and multiple beam angles, this track light accurately presents texture and true color of merchandise and artworks. Sand black die-cast aluminum body ensures reliable heat dissipation and long lifespan. 355° horizontal rotation plus 90° vertical tilt allows flexible aiming. Optional honeycomb anti-glare accessory further optimizes visual comfort, ideal for retail, gallery and exhibition lighting projects.

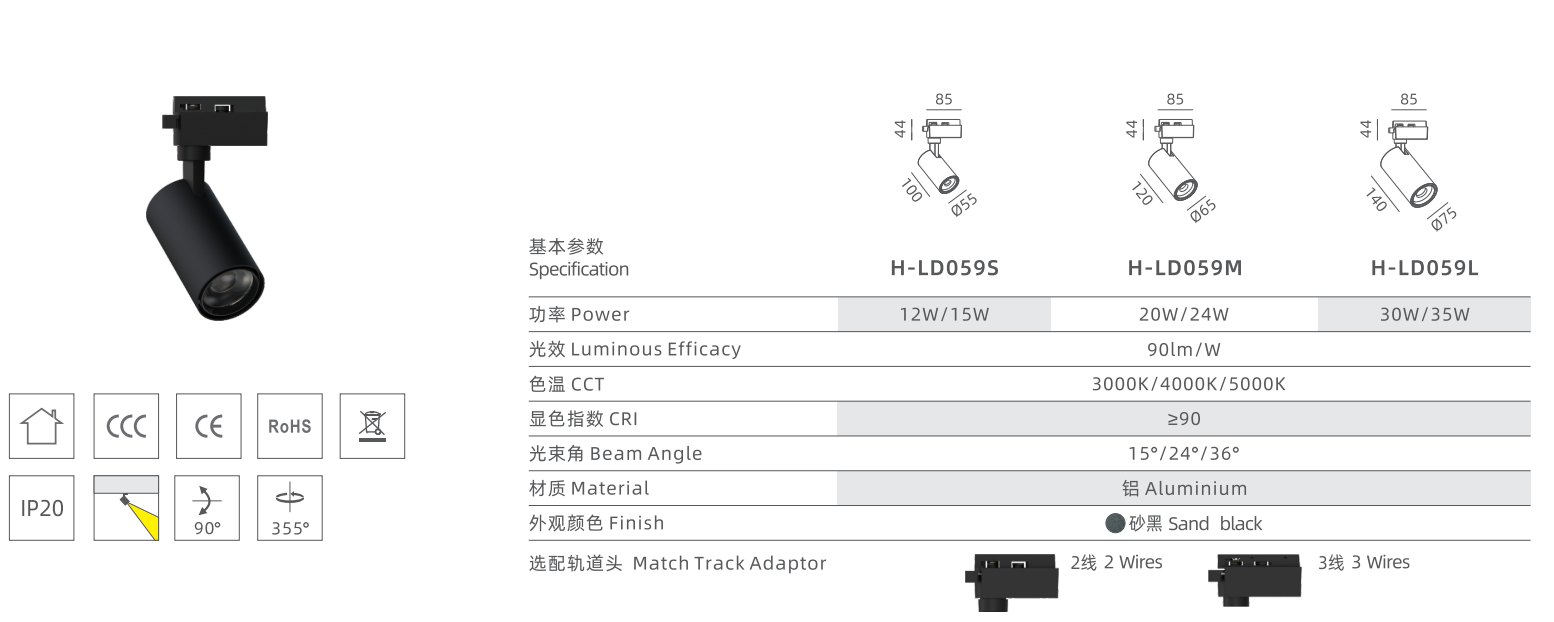

| Item |
Specification |
| Model |
H-LD059S / H-LD059M / H-LD059L |
| Power |
S:12W,15W; M:20W,24W; L:30W,35W |
| Luminous Efficacy |
90lm/W |
| CRI |
≥90 |
| Beam Angle |
15°,24°,36° |
| Housing Material |
Aluminium Alloy |
| Finish |
Sand Black |
| Adjustable Angle |
355°Horizontal,90°Vertical |
| Track Adaptor |
2Wires /3 Wires Optional |
| IP Rating |
IP20 |
| Certificate |
CE,CCC,RoHS |
| Accessory |
Honeycomb Anti-glare Mesh |
Q1: What wires version should I choose?

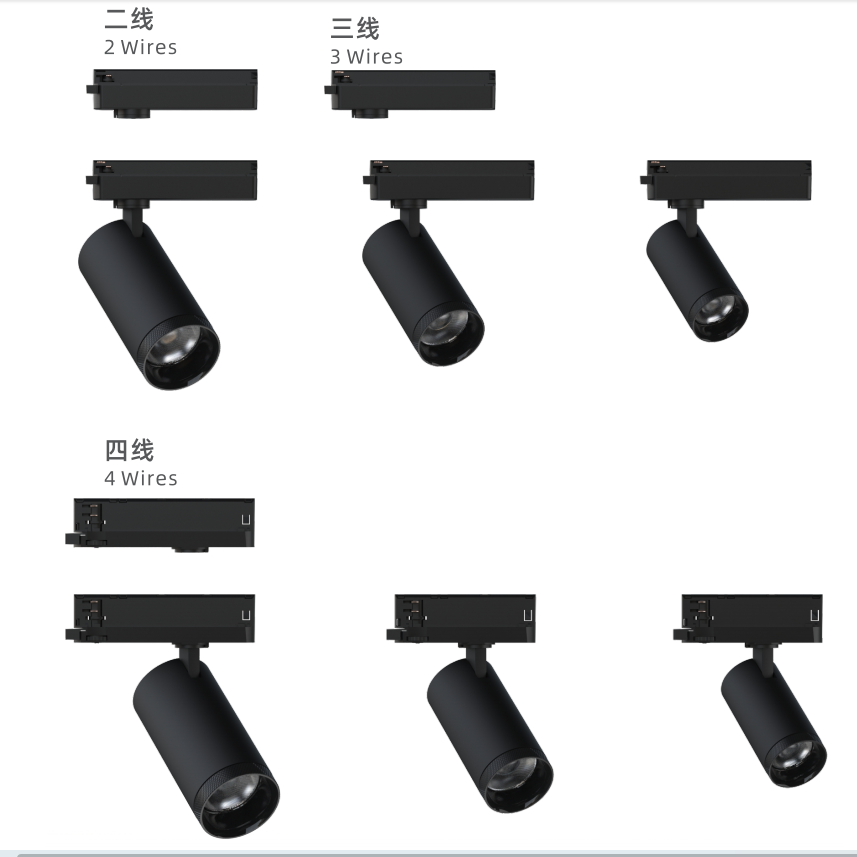

A: 2 wires for simple on-off; 3 wires for basic dimming; 4 wires for more complex lighting control system. Tell us your control requirement, we can recommend suitable version.
Q2: Can I get IES file for lighting simulation?
A: Yes, IES files are available upon request.
Q3: What certifications this model have?
A: It comes with CE,CCC,RoHS certificates. We can apply other certificates such as CB upon customer’s request.
